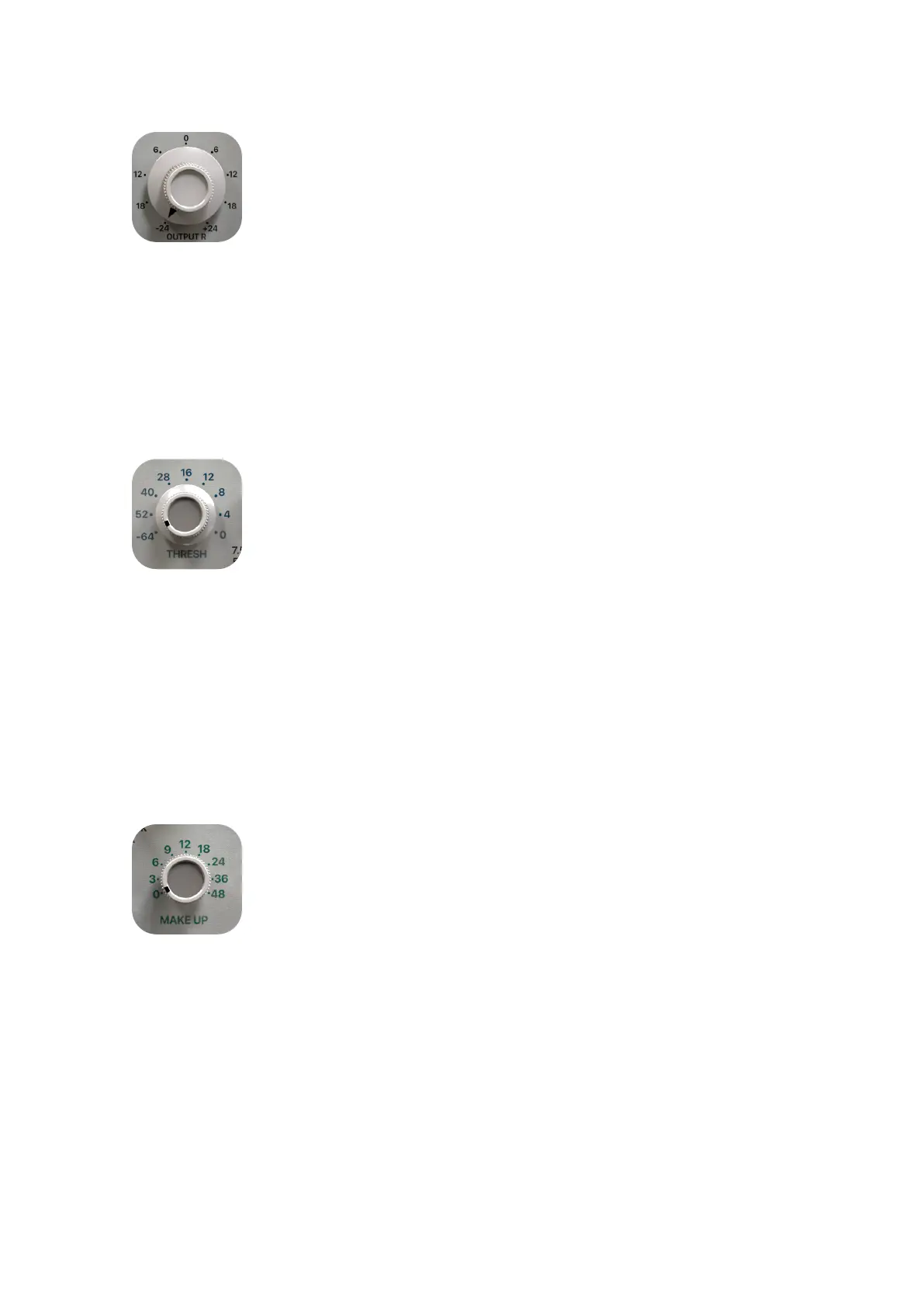

OUTPUT.
This knob is an output gain control of the compressor ranging
from -24dB to +24dB.
THRESHOLD.
These knobs behave differently depending on the type of processor selected (Satu-
ration / Comp / Limit). They increase the distortion in Saturation (SAT) mode, Sets the
threshold of the compressor (range: -64 dB to 0 dB) in Compressor (COMP) mode and
Limiter (LIM) mode.
MAKE UP.
These compensate for the limiter/compressor’s gain reduction. Gain range: from 0 dB
to +24 dB.
