BMV3 / BMV4 / BMV5 : 662Y1000 • A
Figure 6
Figure 5
Figure 4
1. TECHNICAL DATA
1.1. Burner performance
Type Oil throughput (kg/h) Burner output (kW)
BMV3 1.4 - 4.1 16 - 48
BMV4 1.4 - 4.1 16 - 48
BMV 5 3.2 - 4.7
38 - 56
* Specications for units with a low pressure furnace and an exhaust
gas loss of approx. 8%.
1.2. Certification
• DIN EN 267:1999-11: register number: 5G966/11
• Class 3 emission limits (only HL60 E/FLV.2-S)
• German ecolabel “Blue Angel” according to RAL-ZU 9: Con-
tract no. 14415 (only HL60 E/FLV.2-S)
1.3. Operating range
• In the chart, you nd allowed combustion chamber pressure
as function of the oil ow (see g. 4).
• The operating ranges have been determined on a test-
ing unit and refer to an altitude of approx. 100 m above
sea-level and a room temperature of approx. 20°C. The
oil ow that can be achieved in practice depends on the
starting resistance of the heater.
• The starting resistance is inuenced by the combustion
chamber, the ue gas line and the starting load. Exact values
can therefore only be determined on each respective system.
1.4. Fuel
• Fuel oil EL according to DIN 51603-1
• Heating oil EL, low sulphur, according to DIN 51603-1
• Fuel oil EL A Bio 10 (bio fuel oil according to DIN SPEC
51603-6, fuel oil EL, low sulphur, with up to 10% of FAME
according to the quality requirements of DIN 14214)
1.5. Electrical data
Nominal voltage ...................................................................230 V ~ 50 Hz
Starting power ................................................................................ca. 435 W
Operating power ..............................................................ca. 135 - 235 W
Contact rating of the thermostats and switches, ......min. 6A~

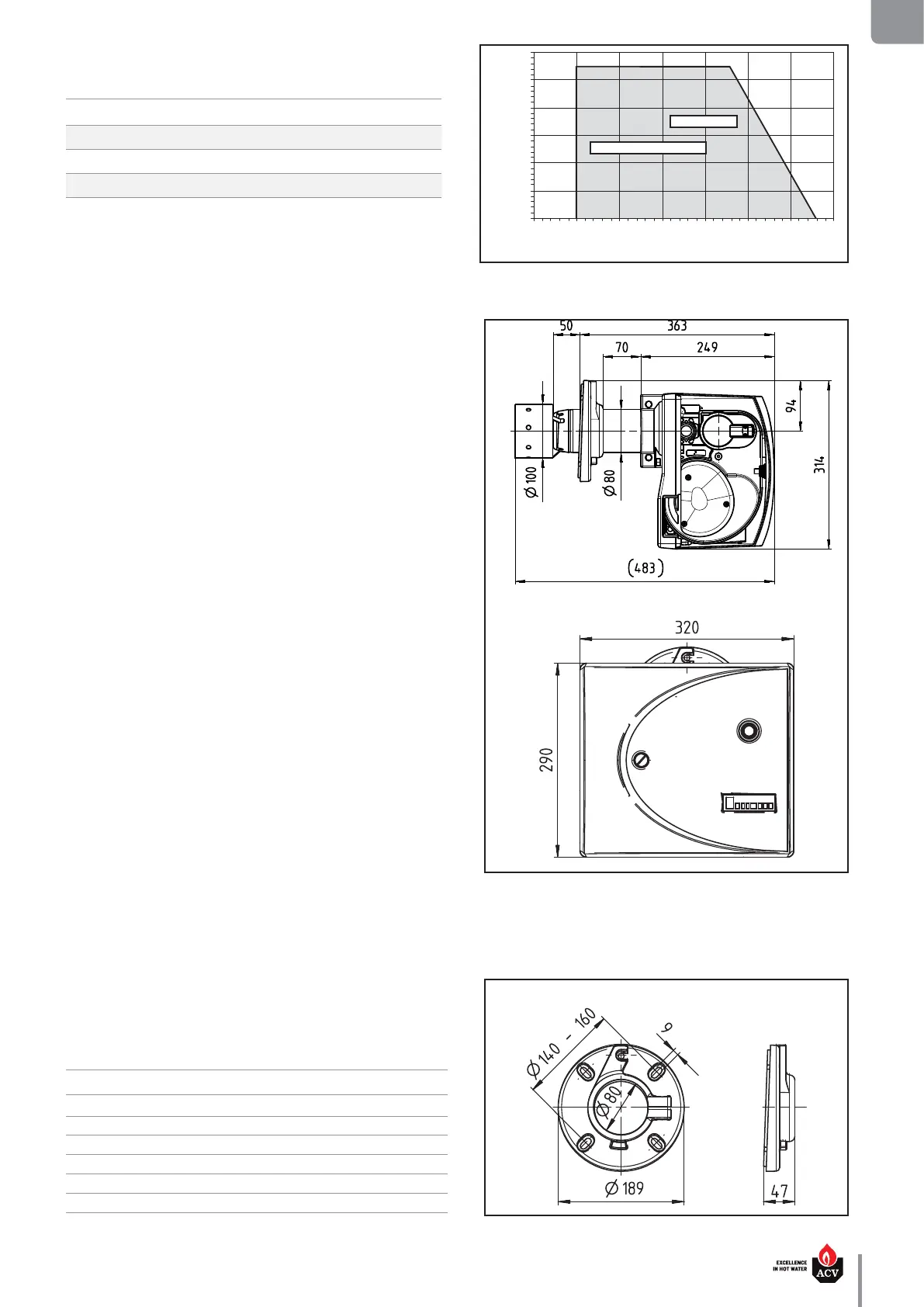

1.6. Burner dimensions
Specications of dimensions in mm (see g. 5 + 6)
Packing .............................................................l 370 / w 350 / h 485 mm
Transport weight ................................................................................14.5 kg
1.7. Acoustic emissions
The sound pressure level at maximum burner performance
is 57 dB(A).
The measurements were carried out with an accuracy class
2 measuring device according to IEC 60651 at a (horizontal)
distance of 2m.
1.8. Burner components
Item Make Ref
Motor Hanning O1A095-030
Oil pump Danfoss BFP 21 L3
Oil pre-heater Danfoss FPHE 5
Ignition unit Co TRK2-40SHK
Photocell Danfoss LDS 057H7097
Automatic oil ring unit Siemens LOA 24.171B27
Pression foyer en mbar
1,00
0
0,1
0,2
0,3
0,4
0,5
0,6
2,0
BMV3 / BMV4
BMV5
3,0 4,0 5,0 6,0 7,0
Débit de oul en kg/h
Oil mass flow in kg/h
Combustion chamber pressure in mbar
