High efficiency combination boilers
15

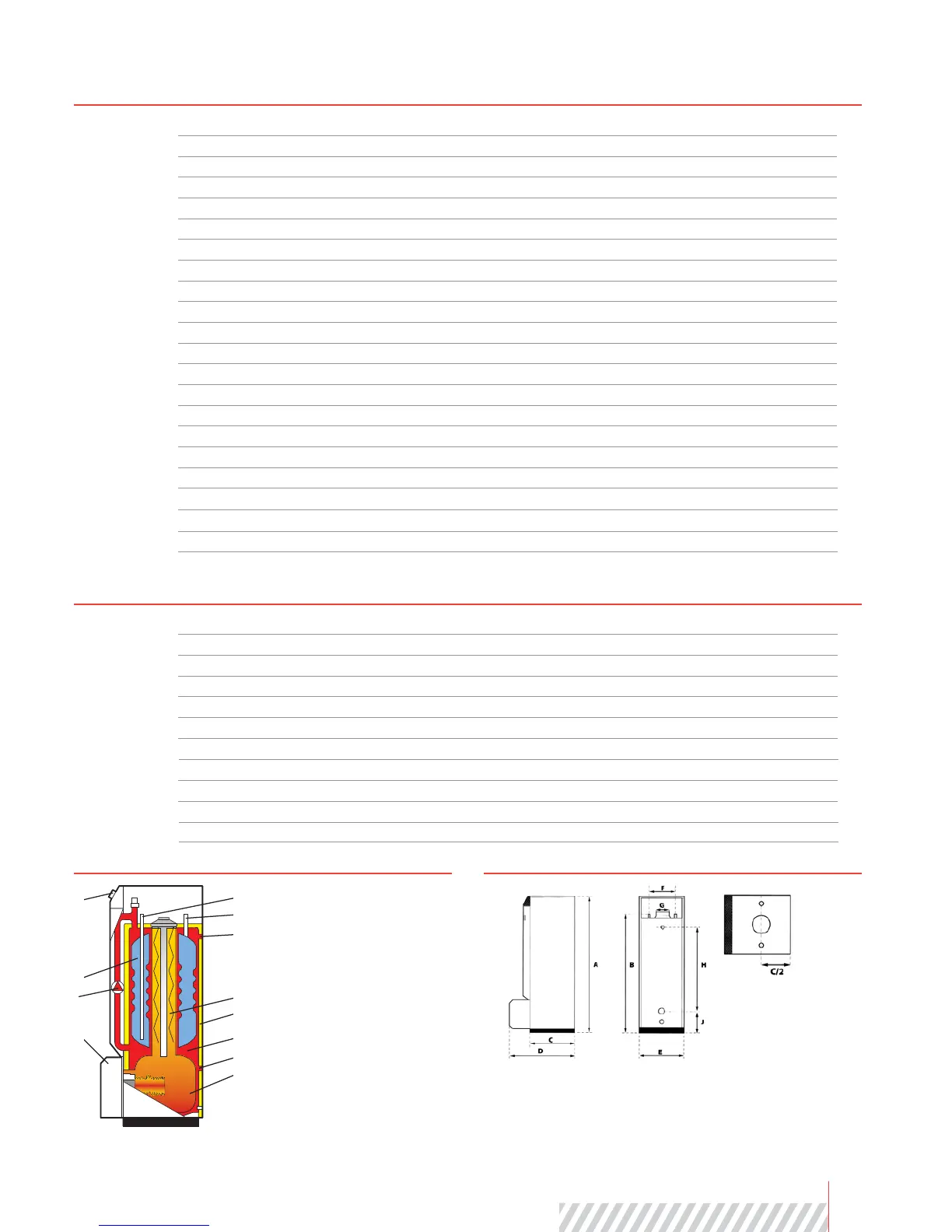

Technical Data
Performance Data
HeatMaster®60 HeatMaster®60
Fuel Oil (28 sec or 35 sec) Natural gas/LPG
Burner options type Pressure Jet BG2000-S or forced draught
Input kW 69.9 69.9
Maximum output kW 62.5 63.0
Primary capacity L 82 82
Total capacity L 162 162
Heating surface area
m
2
2.46 2.46
Primary circuit pressure drop mbar 54 54
DHW tank pressure drop mbar 45 45
Flue circuit pressure drop mbar 0.6 0.6
DHW connection (male BSP) Ø
3
/
4
"
3
/
4
"
Primary connection (female BSP) Ø 1
1
/
2
"
1
1
/
2
"
Flue connection (G) Ø mm 150 150
Flue connection options type B23 B23/C13/C33/C53
BG2000 air intake connection Ø mm n/a 80
Weight empty Kg 220 220
Weight full Kg 382 382
Minimum working gas pressure mbar n/a 20(Nat Gas)/37(LPG)
Gas flow rate m
3
/h n/a 7.40(Nat Gas/2.86(LPG)
Maximum operating temperature °C 90 90
Maximum operating pressure Primary: 3 bar Secondary: 10 bar
Gas connection - BG2000 S/60:
3
/
4
"
1. Stainless steel inner tank
2. Primary heating circuit
3. Flue pipes with stainless
steel turbulators
4. Rigid polyurethane
foam insulation
5. Primary shunt pump
6. Combustion chamber
7. Oil or gas burner
8. Control panel
9. Primary water flow
connection
10. Primary water return connection
11. Domestic cold water inlet
12. Domestic hot water outlet
HeatMaster®60
Litres in first 10 minutes 40°C 474
Litres in first 10 minutes 45°C 378
Litres in first 10 minutes 60°C 245
Litres in first hour 40°C 1942
Litres in first hour 45°C 1656
Litres in first hour 60°C 1106
Continuous flow 40°C Ltrs/hr 1835
Continuous flow 45°C Ltrs/hr 1573
Continuous flow 60°C Ltrs/hr 1101
Reheat time to 60°C Min 9
HeatMaster®60 Oil HeatMaster®60 Gas/LPG
A 1698mm 1698mm
B 1583mm 1583mm
C 538mm
538mm
D 791mm 801mm(BG2000)
E 540mm
540mm
F 390mm
390mm
H 1098mm
1098mm
J 281mm
281mm
Characteristics Dimensions
