4.0 Boiler Settings





                    
  






 
!
"
# $"
$%" 

 
&
 
#
"

"
'#  
(#

$)
$)*"
$+ 
,*
$+#$


$%*
$+#$

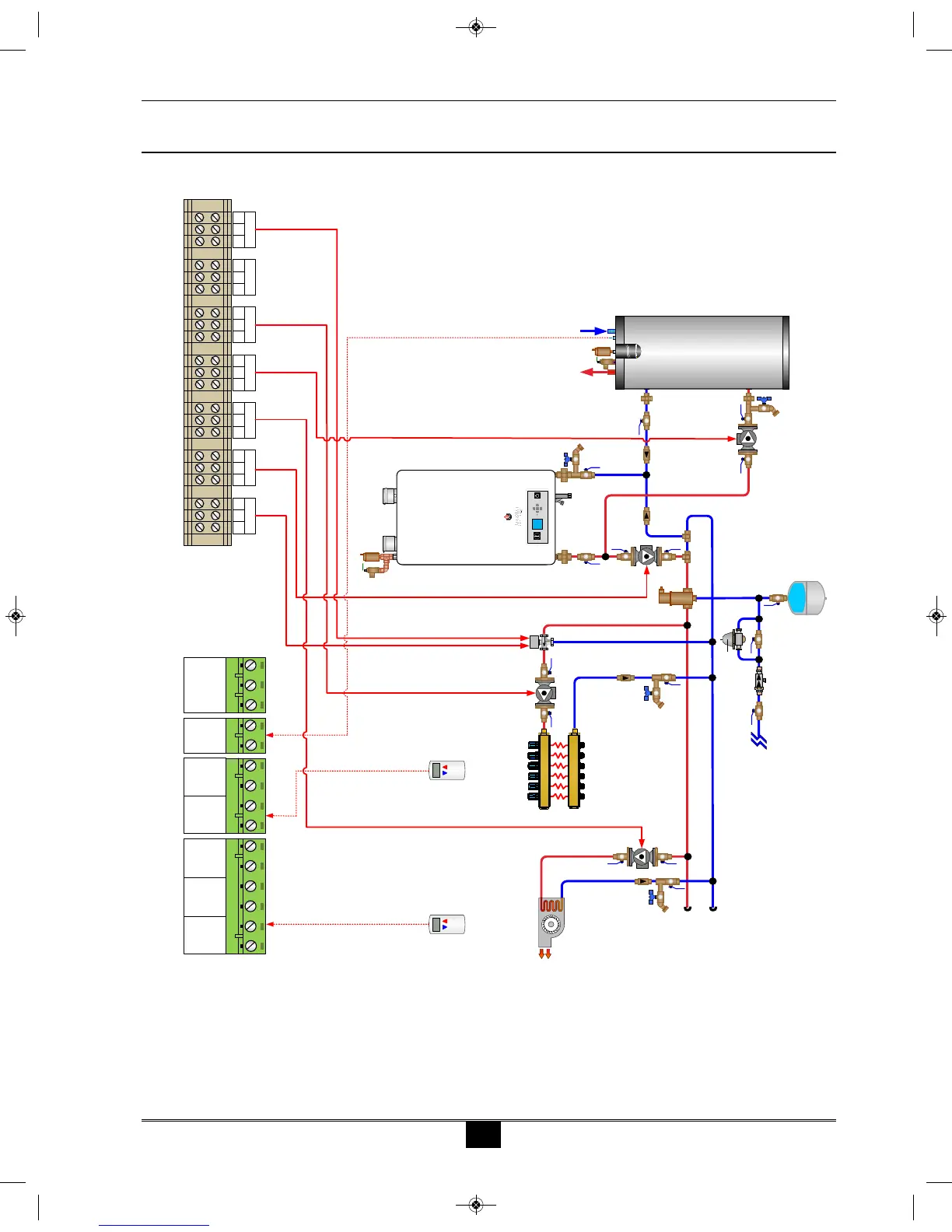

Fig. 11: System Piping with Solo Preset Config 10
Note:
This Configuration to be used where the Low Temp Circuit is a micro load as the High
Temp Circuit will run for any call on the Low Temp Circuit to prevent boiler cycling.
