ACV WaterMaster 45 - TECHNICAL CHARACTERISTICS; Dimensions and Clearances

WaterMaster 25 - 35 - 45 - 70 - 85 - 120 : A1006482 - 664Y7300 • D
en
16
EN
FR
NL
ES
IT
DE
PL
RU

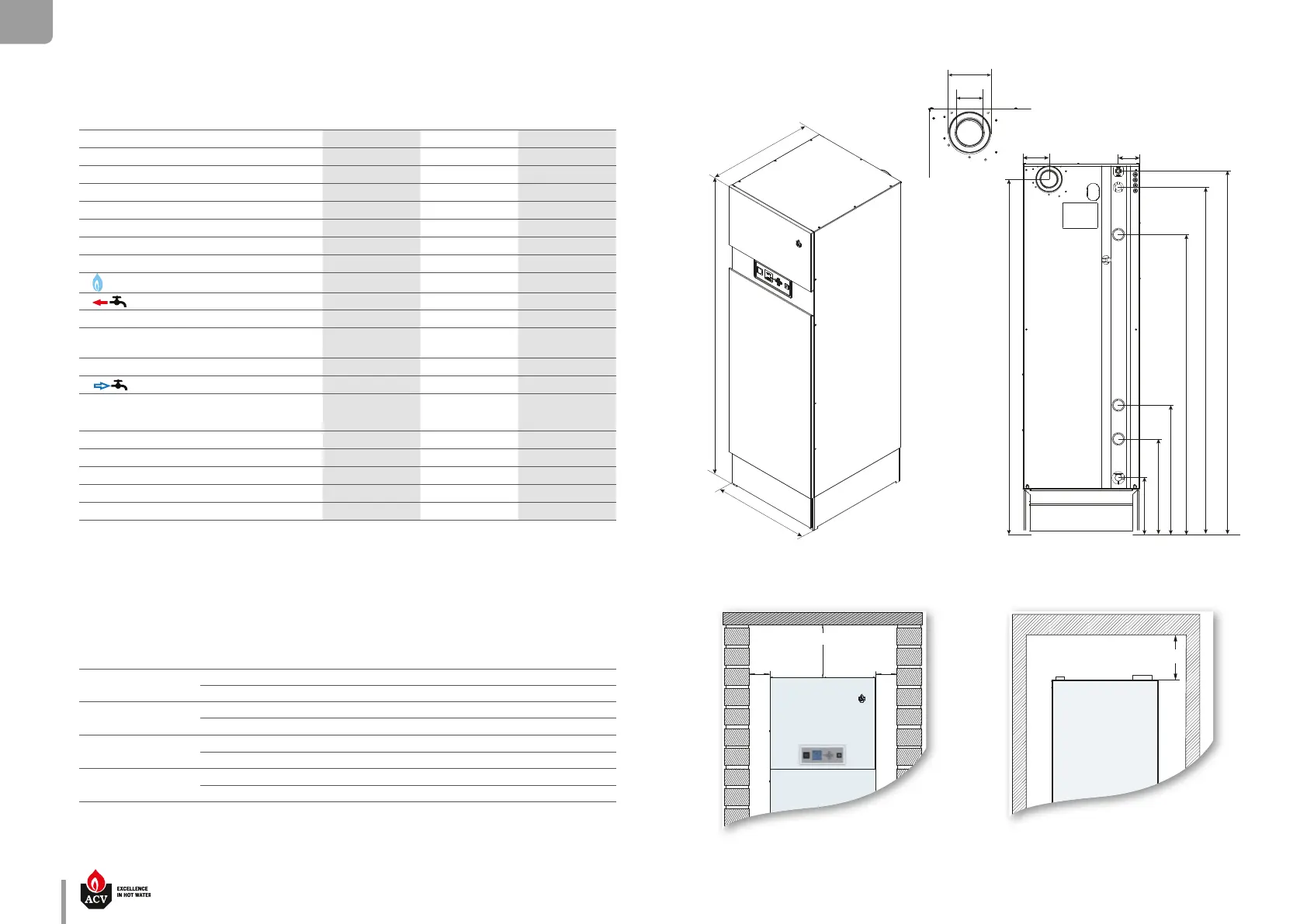

TECHNICAL CHARACTERISTICS
DIMENSIONS
CLEARANCE
Water heater Clearance WaterMaster® 25 - 35 - 45 - 70 - 85 - 120
A (mm)
Recommended 400
Minimum 300
B (mm)
Recommended 800
Minimum 600
C (mm)
Recommended 400
Minimum 250
D (mm)
Recommended 600
Minimum 400
Front view
View from the top
B
C
A
WATERMASTER
D
Water heater Dimensions WM 25 - 35 - 45 WM 70 - 85 WM 120
A mm 1755 2170 2170
B mm 600 690 690
C mm 708 753 753
D mm 80 100 100
E mm 125 150 150
F mm 145 155 155
G mm 1670 2080 2080
H mm 110 125 125
J (
)
mm 1717 2126 2126
K (
)
mm 1610 2030 2030
L (primary circuit supply - not used) mm 1405 1750 1750
M (aux. circulation loop) mm – 740 740
N (primary circuit supply) mm 446 540 540
O (
)
mm 273 311 311
Primary circuit with expansion vessel
kit [F]
“ 1 1.1/2 1.1/2
DHW Connection [M] “ 1 1 1
Auxiliary connection [F] “ – 1.1/2 1.1/2
Gas connection [M] “ 3/4 3/4 3/4
min. ∅ of ue pipe mm 80 100 100
Drained weight Kg 177 298 299
W
A
T
E
RMA
STE
R
A
C
B
D
E
F
G
H
J
K
L
M
N
O
