2
S CONTROL MANUAL [ENGLISH]

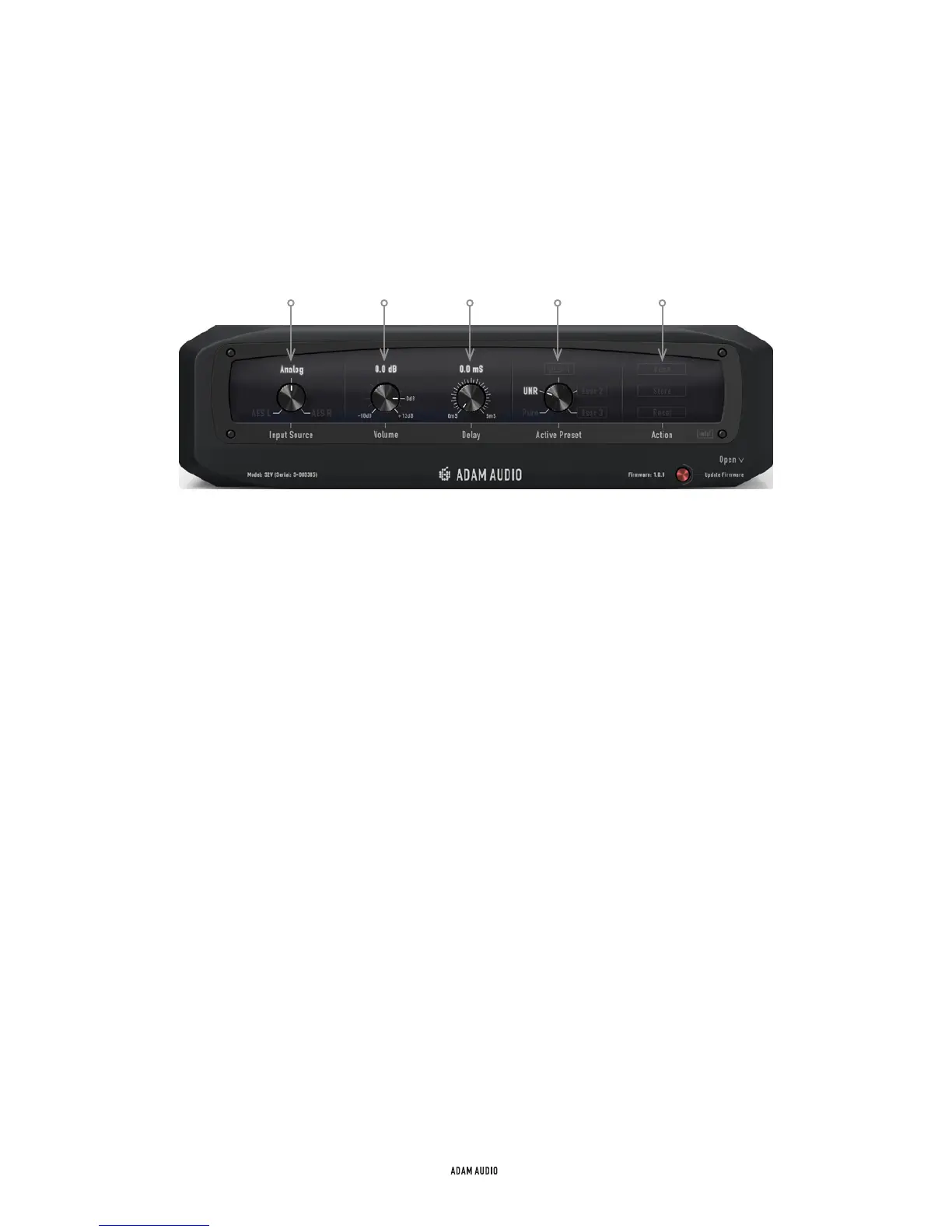

When you connect an ADAM Audio S Series loudspeaker to a Mac or PC via the rear-
panel USB port, and start up S Control on the computer, the following simple window
appears on screen [see below].
The controls seen here correspond exactly to the options available in the main
DSP Settings menu on the speaker itself, accessed via the rear-panel display and
rota
ry encoder.
→ The Input Source rotary [1] selects which of the speaker’s physical inputs will be
used, whether analog or AES digital [Left or Right];
→ Global Volume [2] is adjustable in 0.1dB increments;
→ Delay [3] can be dialed up to a maximum of 5ms, to compensate for latency and
other possible delays in your system;
→ The Active Preset knob [4] selects the currently active voicing/EQ preset. You have a
choice of three uneditable factory presets on the S3H and two user-editable memories,
and
two factory presets and three user memories on all of the other S Series models.
Each preset, whether of the factory or user-editable type, consists of six individually
assignable parametric EQs with individual center frequency, gain and Q controls,
plus overall low and high shelving EQs per preset.
→ On the far right are the Action buttons [5]. The top two of these read preset data
from the connected loudspeaker memories and display it on the app, or write preset
data from the app back into the memories on the loudspeaker [more on this in a
moment]. The Reset button, like the option of the same name in the loudspeaker
user interface, erases all of the User memories in the speaker and restores the
fac
tory settings.
THE INTERFACE
[1] [2] [3] [4] [5]
