8

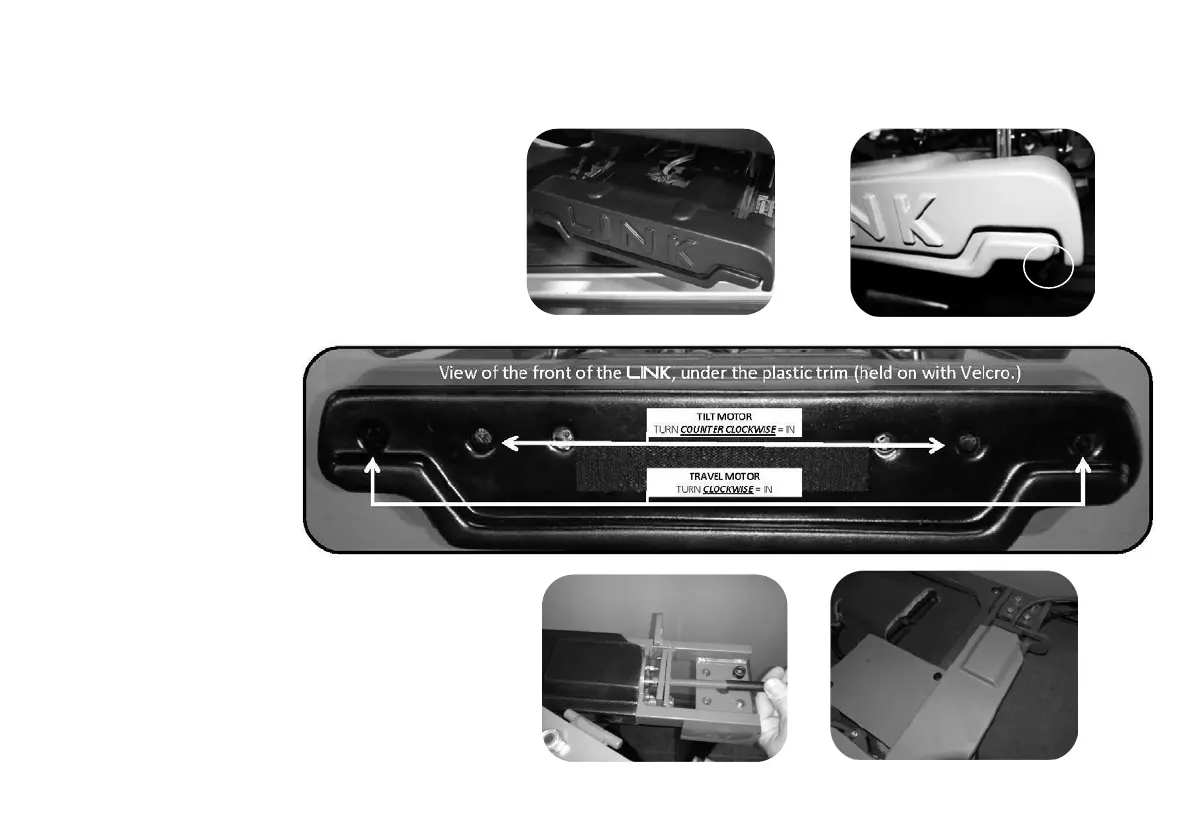

MANUAL BACKUP
(MOTOR LOCATION)
Remove the plastic trim stamped with the word
LINK on it at the very front of the unit. It is simply
fastened with Velcro tabs on either side. (Note:
The trim underneath it does not need to be
removed.)
There are four (4) holes
under the trim on the
front of the unit. The two
outer holes move the
TRAVEL motor and the
two inner holes move
the TILT motor.
The third motor is the PIVOT and it can be found at
the back of the LINK. (Shown far right: The backup
tool has been designed to curve for the pivot
motor, in case your vehicle is equipped with a
center console.)
