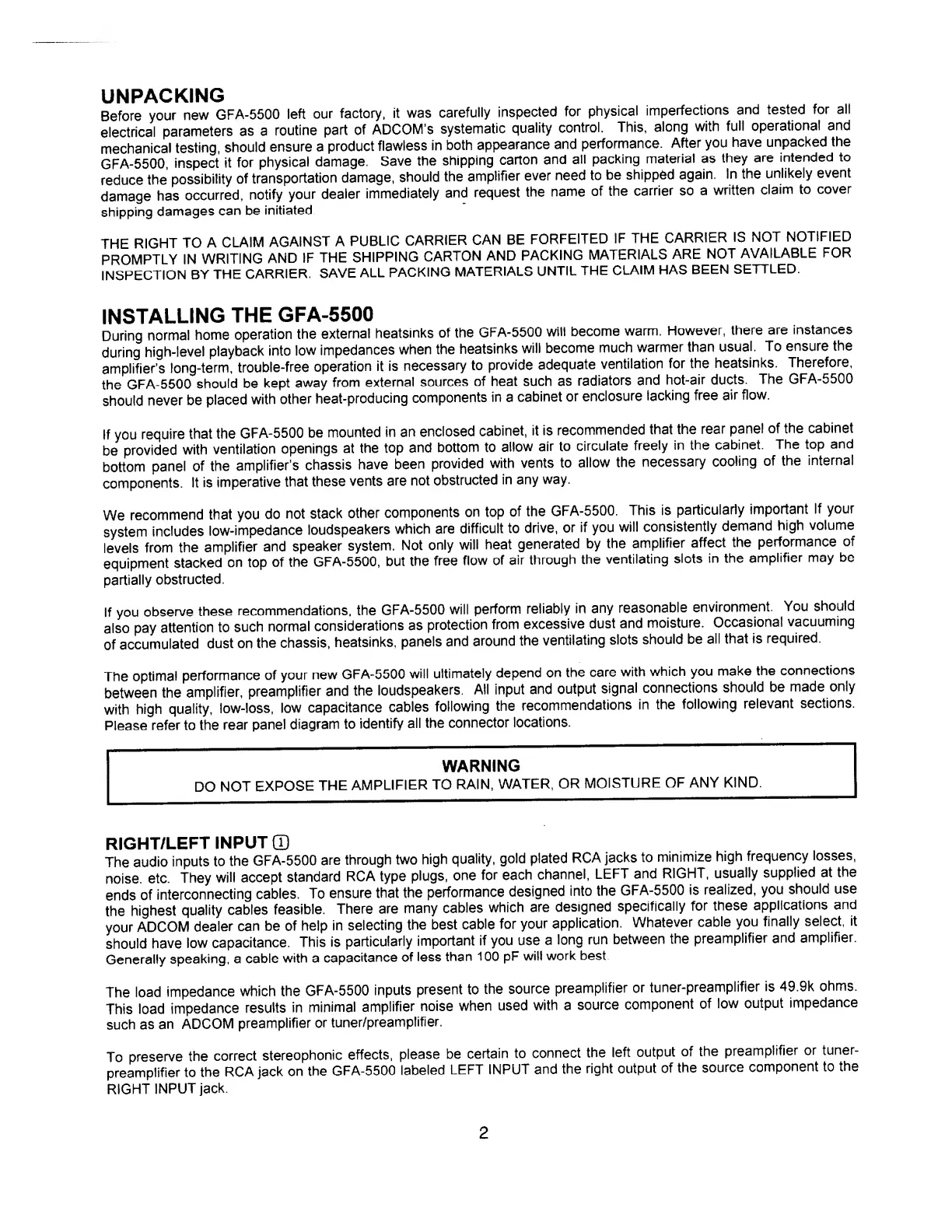

Page #4 background imageLoading...
Page #4 background image
UNPACKING
Before
your
new
GFA-5500
left
our
factory,
it
was
carefully
inspected
for
physical
imperfections
and
tested
for
all
electrical
parameters
as
a
routine
part
of
ACCOM's
systematic
quality
control.
This,
along
with
full
operational
and
mechanical
testing,
should
ensure
a
product
flawless
in
both
appearance
and
performance.
After
you
have
unpacked
the
GFA-5500
inspect
it
for
physical
damage.
Save
the
shipping
carton
and
all
packing
material
as
they
are
intended
to
reduce
the
possibility
of
transportation
damage,
should
the
amplifier
ever
need
to
be
shipped
again.
In
the
unlikely
event
damage
has
occurred,
notify
your
dealer
immediately
and
request
the
name
of
the
carrier
so
a
written
claim
to
cover
shipping
damages
can
be
initiated
THE
RIGHT
TO
A
CLAIM
AGAINST
A
PUBLIC
CARRIER
CAN
BE
FORFEITED
IF
THE
CARRIER
IS
NOT
NOTIFIED
PROMPTLY
IN
WRITING
AND
IF
THE
SHIPPING
CARTON
AND
PACKING
MATERIALS
ARE
NOT
AVAILABLE
FOR
INSPECTION
BY
THE
CARRIER.
SAVE
ALL
PACKING
MATERIALS
UNTIL
THE
CLAIM
HAS
BEEN
SETTLED.
INSTALLING
THE
GFA-5500
During
normal
home
operation
the
external
heatsinks
of
the
GFA-5500
will
become
warm.
However,
there
are
instances
during
high-level
playback
into
low
impedances
when
the
heatsinks
will
become
much
warmer
than
usual.
To
ensure
the
amplifier’s
long-term,
trouble-free
operation
it
is
necessary
to
provide
adequate
ventilation
for
the
heatsinks.
Therefore,
the
GFA-5500
should
be
kept
away
from
external
sources
of
heat
such
as
radiators
and
hot-air
ducts.
The
GFA-5500
should
never
be
placed
with
other
heat-producing
components
in
a
cabinet
or
enclosure
lacking
free
air
flow.
If
you
require
that
the
GFA-5500
be
mounted
in
an
enclosed
cabinet,
it
is
recommended
that
the
rear
panel
of
the
cabinet
be
provided
with
ventilation
openings
at
the
top
and
bottom
to
allow
air
to
circulate
freely
in
the
cabinet.
The
top
and
bottom
panel
of
the
amplifier's
chassis
have
been
provided
with
vents
to
allow
the
necessary
cooling
of
the
internal
components.
It
is
imperative
that
these
vents
are
not
obstructed
in
any
way.
We
recommend
that
you
do
not
stack
other
components
on
top
of
the
GFA-5500.
This
is
particularly
important
If
your
system
includes
low-impedance
loudspeakers
which
are
difficult
to
drive,
or
if
you
will
consistently
demand
high
volume
levels
from
the
amplifier
and
speaker
system.
Not
only
will
heat
generated
by
the
amplifier
affect
the
performance
of
equipment
stacked
on
top
of
the
GFA-5500,
but
the
free
flow
of
air
through
the
ventilating
slots
in
the
amplifier
may
be
partially
obstructed.
If
you
observe
these
recommendations,
the
GFA-5500
will
perform
reliably
in
any
reasonable
environment.
You
should
also
pay
attention
to
such
normal
considerations
as
protection
from
excessive
dust
and
moisture.
Occasional
vacuuming
of
accumulated
dust
on
the
chassis,
heatsinks,
panels
and
around
the
ventilating
slots
should
be
all
that
is
required.
The
optimal
performance
of
your
new
GFA-5500
will
ultimately
depend
on
the
care
with
which
you
make
the
connections
between
the
amplifier,
preamplifier
and
the
loudspeakers.
All
input
and
output
signal
connections
should
be
made
only
with
high
quality,
low-loss,
low
capacitance
cables
following
the
recommendations
in
the
following
relevant
sections.
Please
refer
to
the
rear
panel
diagram
to
identify
all
the
connector
locations.
WARNING
DO
NOT
EXPOSE
THE
AMPLIFIER
TO
RAIN,
WATER,
OR
MOISTURE
OF
ANY
KIND.
RIGHT/LEFT
INPUT
(D
The
audio
inputs
to
the
GFA-5500
are
through
two
high
quality,
gold
plated
RCA
jacks
to
minimize
high
frequency
losses,
noise,
etc.
They
will
accept
standard
RCA
type
plugs,
one
for
each
channel,
LEFT
and
RIGHT,
usually
supplied
at
the
ends
of
interconnecting
cables.
To
ensure
that
the
performance
designed
into
the
GFA-5500
is
realized,
you
should
use
the
highest
quality
cables
feasible.
There
are
many
cables
which
are
designed
specifically
for
these
applications
and
your
ADCOM
dealer
can
be
of
help
in
selecting
the
best
cable
for
your
application.
Whatever
cable
you
finally
select,
it
should
have
low
capacitance.
This
is
particularly
important
if
you
use
a
long
run
between
the
preamplifier
and
amplifier.
Generally
speaking,
a
cable
with
a
capacitance
of
less
than
100
pF
will
work
best
The
load
impedance
which
the
GFA-5500
inputs
present
to
the
source
preamplifier
or
tuner-preamplifier
is
49.9k
ohms.
This
load
impedance
results
in
minimal
amplifier
noise
when
used
with
a
source
component
of
low
output
impedance
such
as
an
ADCOM
preamplifier
or
tuner/preamplifier.
To
preserve
the
correct
stereophonic
effects,
please
be
certain
to
connect
the
left
output
of
the
preamplifier
or
tuner-
preamplifier
to
the
RCA
jack
on
the
GFA-5500
labeled
LEFT
INPUT
and
the
right
output
of
the
source
component
to
the
RIGHT
INPUT
jack.
2
