STEP 6:

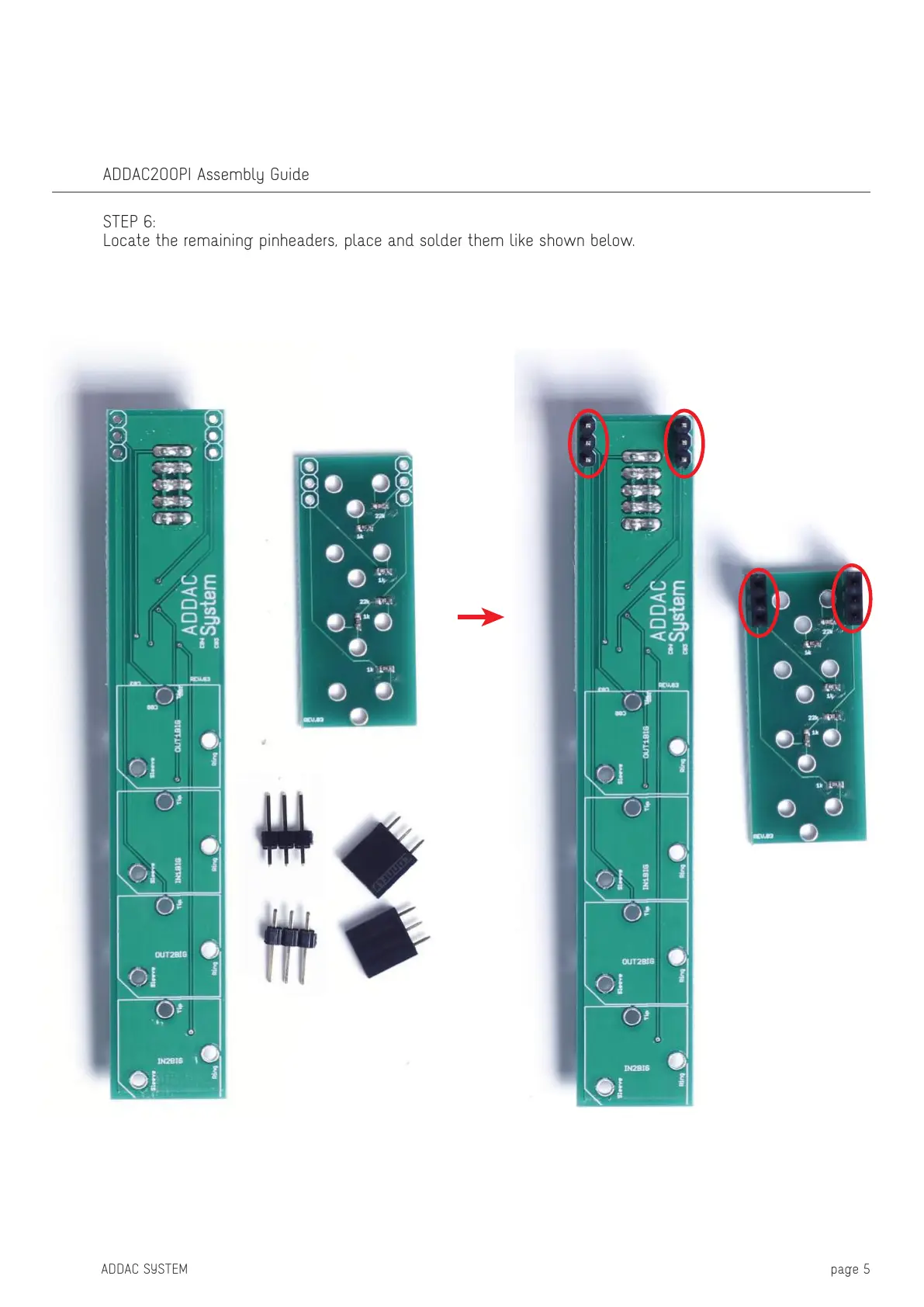

Locate the remaining pinheaders, place and solder them like shown below.
page 5
ADDAC200PI Assembly Guide
