Addvent AVX100WLED - Page 8

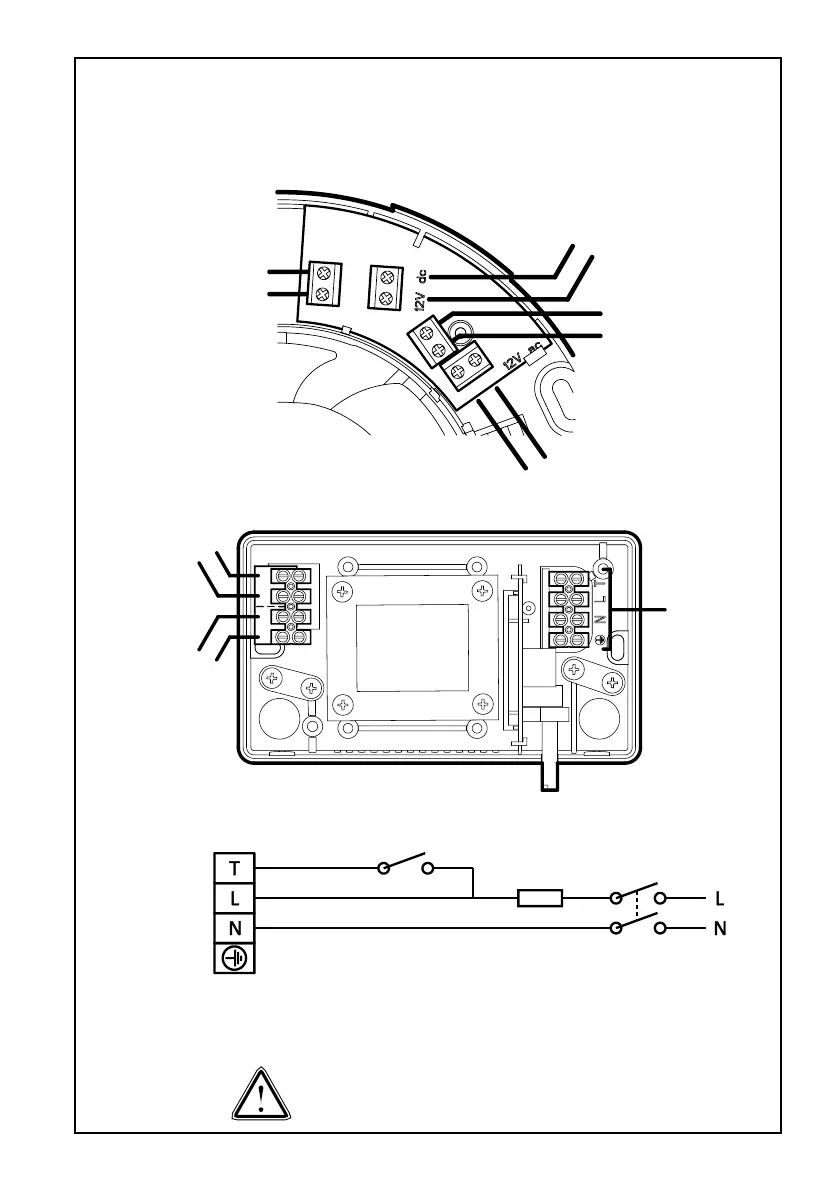

FIGURE6-ElectricalConnections
TOLAMP
LAMPINPUT
(FROMTRANSFORMER)
MOTORINPUT
(FROMTRANSFORMER)
MAINS
INPUT
(FIXEDWIRING)
TOMOTOR
MOTOR
OUTPUT
MOTOR LAMP
LAMP
OUTPUT
TRANSFORMER
TERMINALS
OPERATING
SWITCH
FUSE*
ISOLATING
SWITCH
(FORALLPOLES)
For fixed wiring circuits the protective fuse
fortheappliancemustnotexceed5A.
If the connection to the “T” terminal is more than 2.5m long, then a separate single core wire MUST
be used. (To avoid “nuisance” triggering of the fan)
