ADE Special User Manual

MZ10023-140325-Rev005-UM-d-e-fr-nl 5
Installation and use of height rod
Your ADE height measuring rod is a quality product. For measuring the length of adults and children
the height measuring rod can either be used at your ADE column scale or can be fixed directly to the
wall.
In order to achieve best possible results please carefully follow the operating and mounting
instructions:

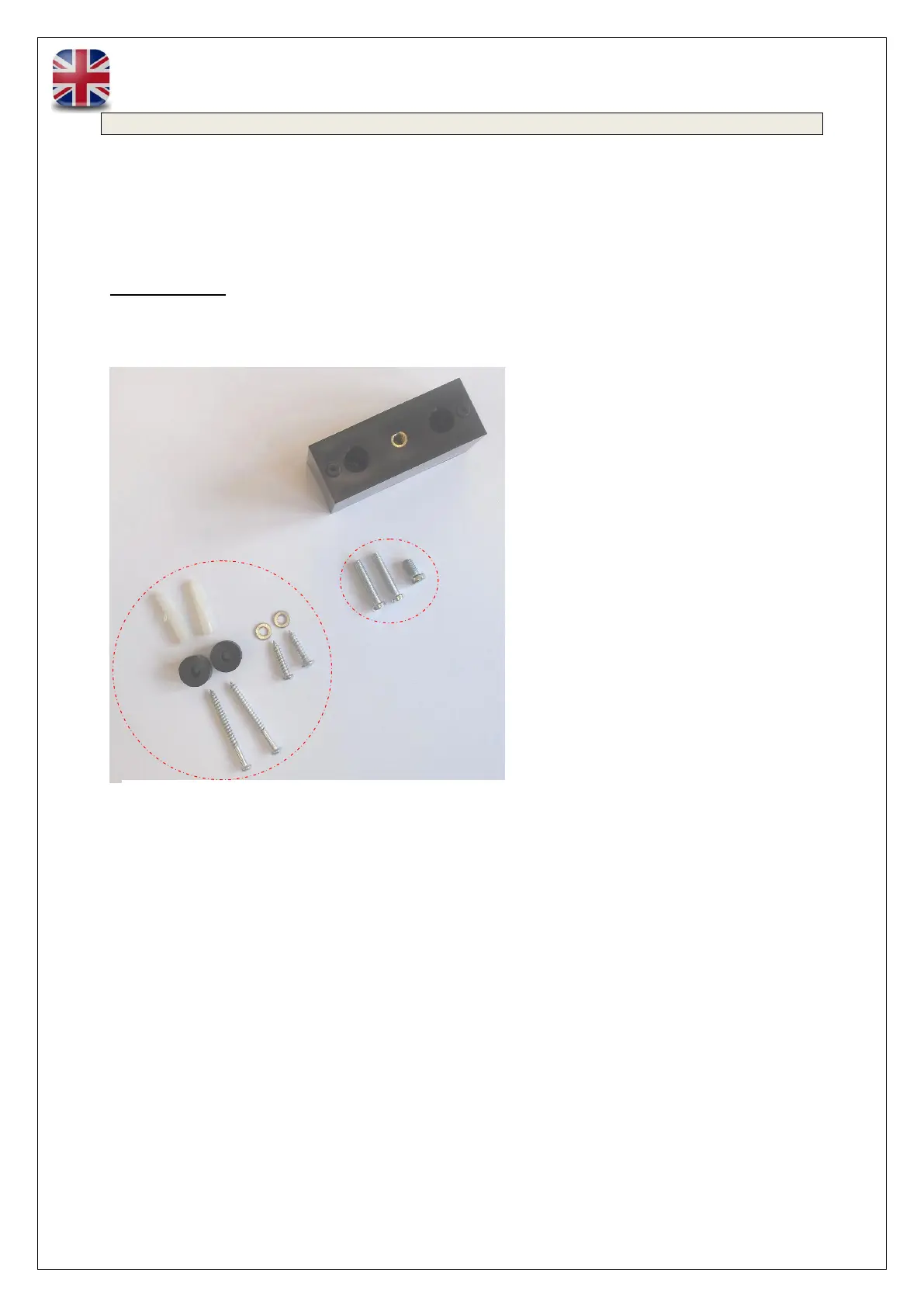

Carton content:
- Telescopic measuring rod
- Mounting material for fixing at ADE column scale or at the wall (see picture below)
Column assembly:
 1 spacer blocks for mounting to backside of the column
 1 M6 screw
 2 M5 screws
Wall assembly:
 2 spacers
 2 screws, short (for assembling to wood or metal walls)
 2 dowels S6
 2 screws, long (for assembling to brick or concrete walls)
 2 washers
B
B: Screw set for wall mounting incl. wall dowels, screws and washers
Assembling block for fixing of the height rod
to the back side of the ADE column scales
including fixing screws
A: Fixation screws for fixing the Height
rod to the scale column.
A
