(3) -- Stitching Board CTR-30A and CTR-30B

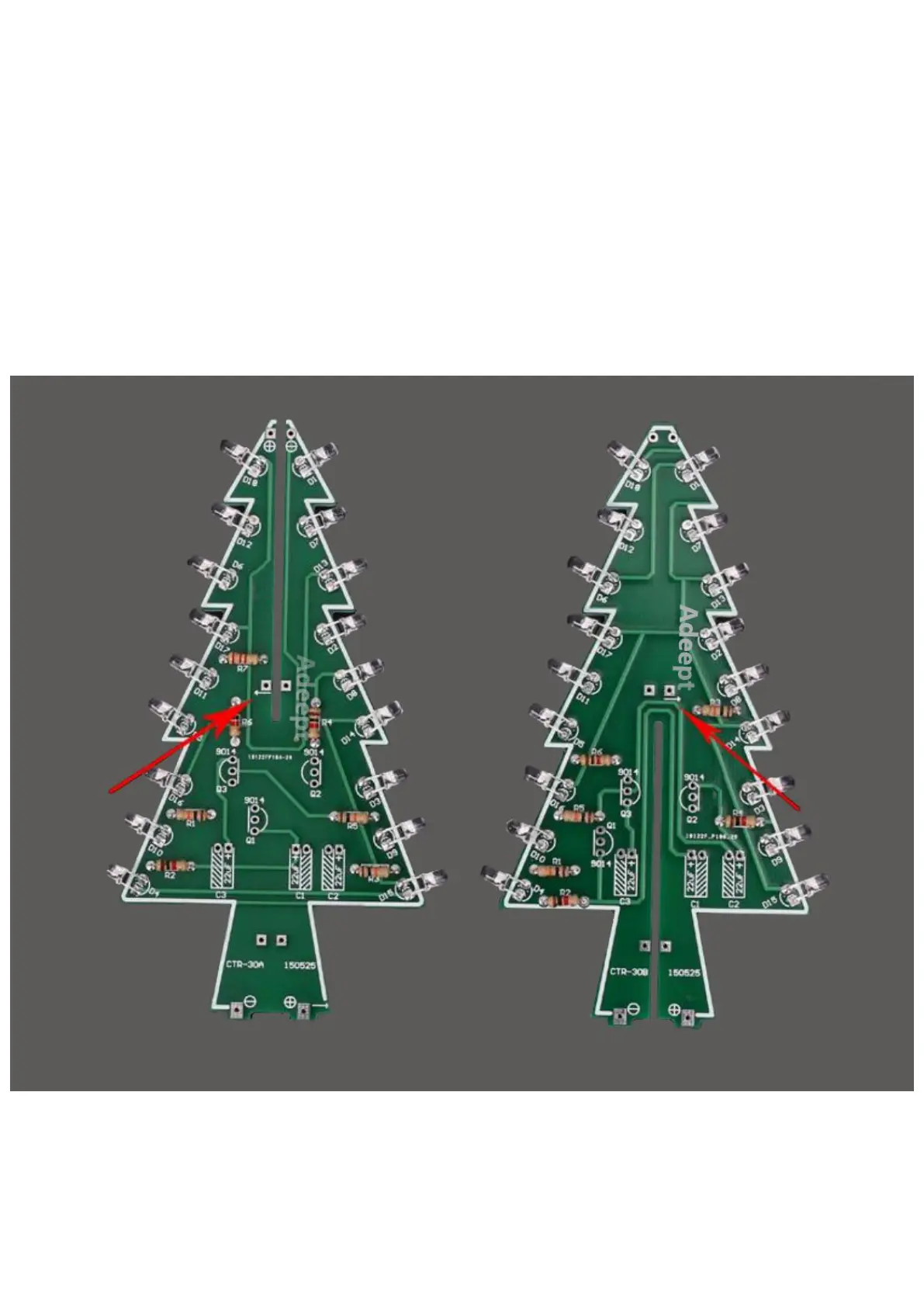

Step 13: Align the two positioning heads on CTR-30A and
CTR-30B and then fixed with tin.
