ADENDORFF ARC 200 - Panel Function Instruction

USER MANUAL - 7 - YF-43L A/0
PANEL FUNCTION INSTRUCTION

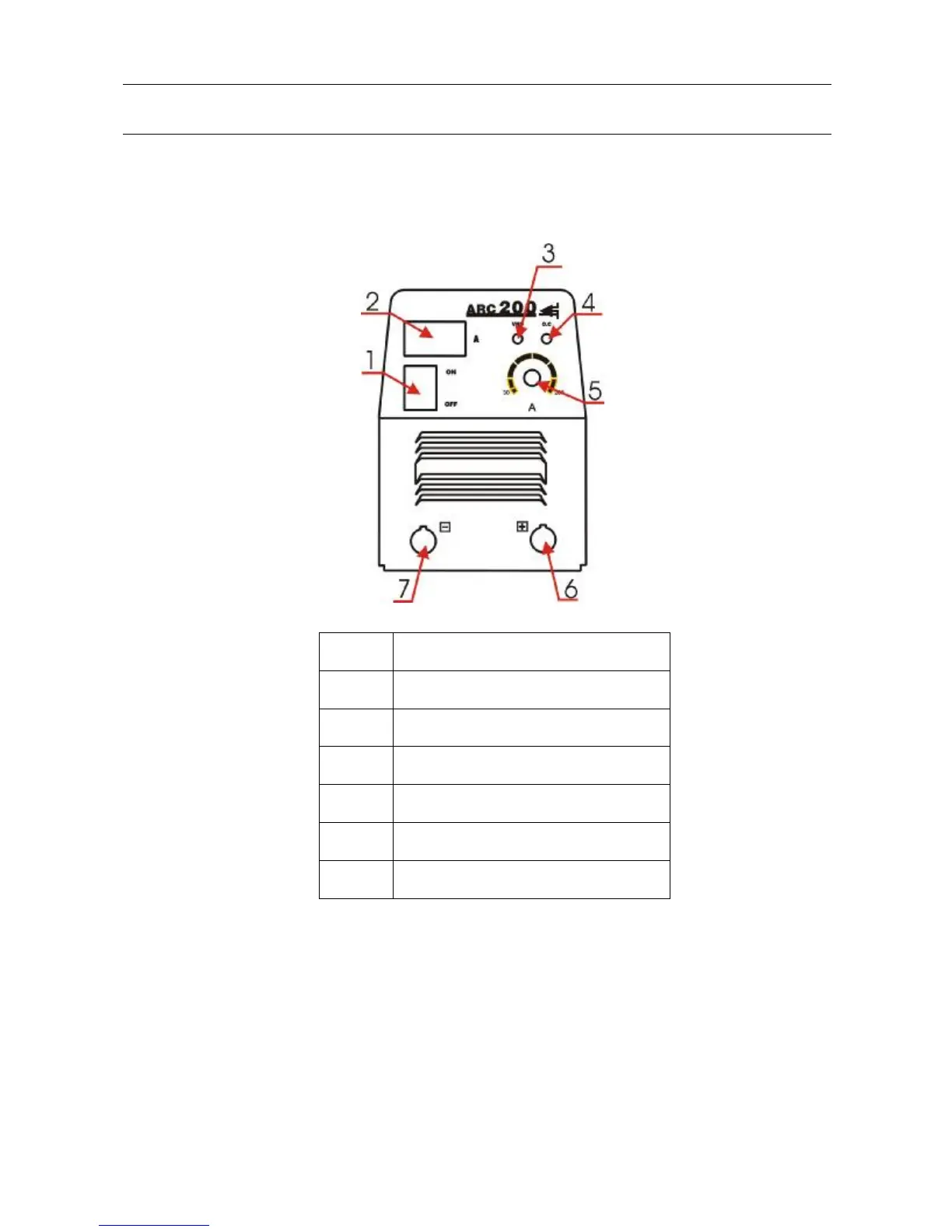

ARC 200 FRONT PANEL
The panel picture above is for reference only. If any difference with the real machine, please follow with the real machine.
1
Power switch
2
Current meter
3
VRD indicator light
4
Abnormal indicator light
5
Welding current adjustment
6
Positive output terminal
7
Negative output terminal
