5

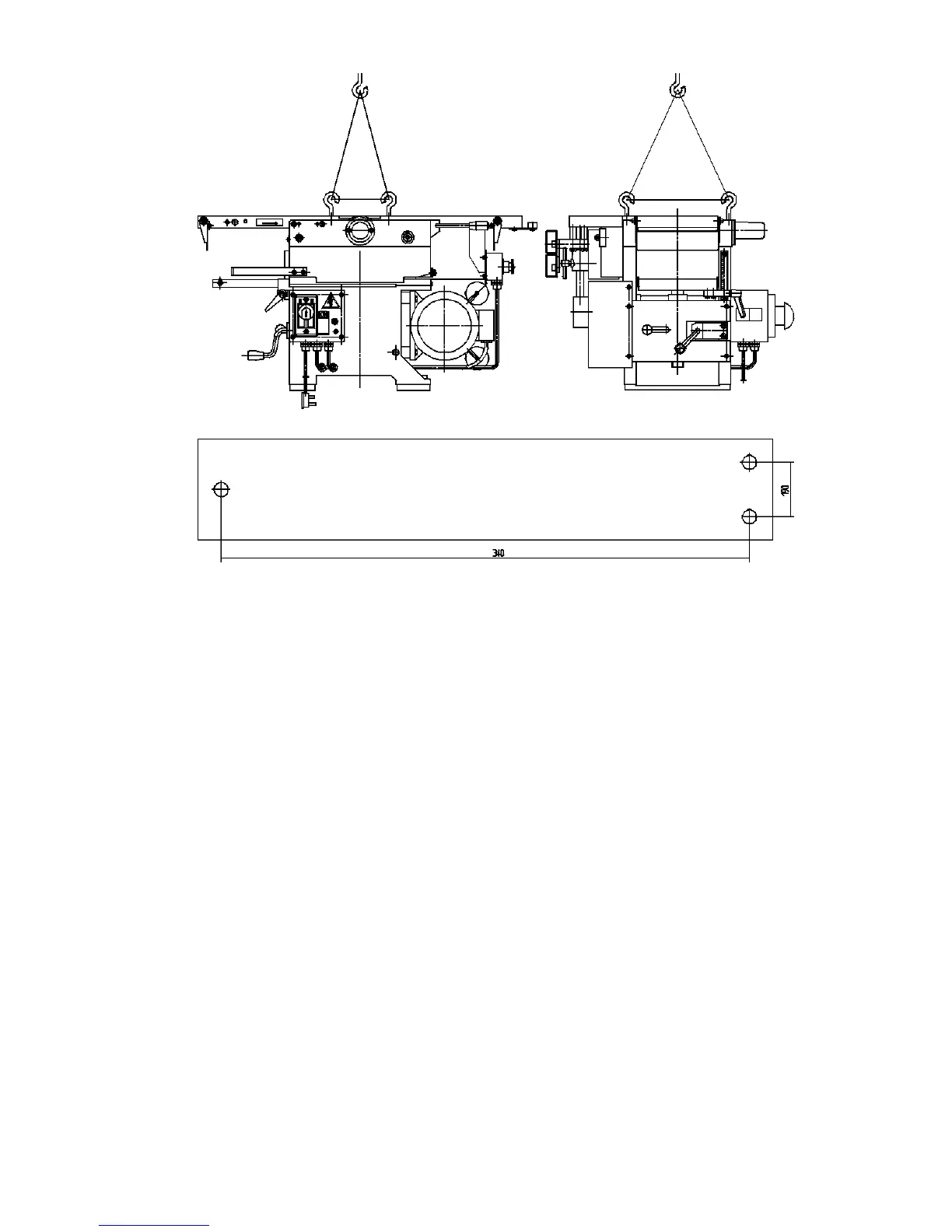

Fig.2 Lifting diagram
Fig.3 Ground bolt fixing diagram
5 Electric part
5.1 Electric diagram see Fig.7 a or b
5.2 Caution
Pay attention to the voltage, frequency. They should be accommodated with the requirement
and the difference should be not more than
±
5
％
, and earthed dependably. You can use
single phase or three phase motor for the machine. The connection of the electric should be
carried by special technicians. If you stop the machine by
SB2,inthesituationofthemachine
is off, press
SB1, you can start the machine in touch form. If you need uniform operation, you
must replace
SB2
