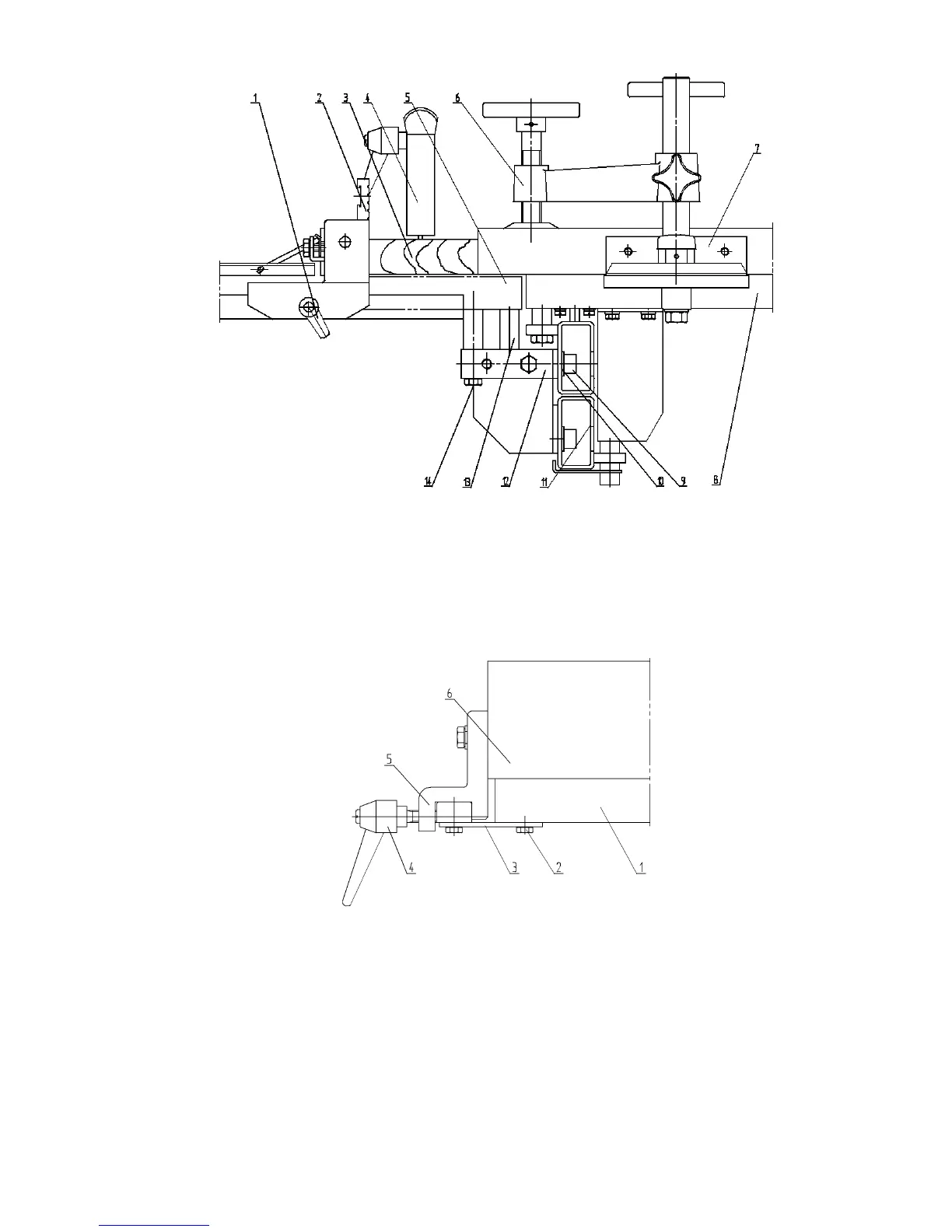

Fig.5 Crosscutting diagram
1.guide lock bar 2.guide part 3.woodpiece 4.saw hood 5.saw table 6.presser 7.dial scale 8.crosscut table 9.screw
M10×20 10.press plate 11.track 12.square iron 13.distance case 14.bolt M8×75
Fig.6 Guide mounting and adjustment diagram
1.front bench 2.bolt M6×12 3.ruler base 4.lock lever 5.guide base 6.guide
