8

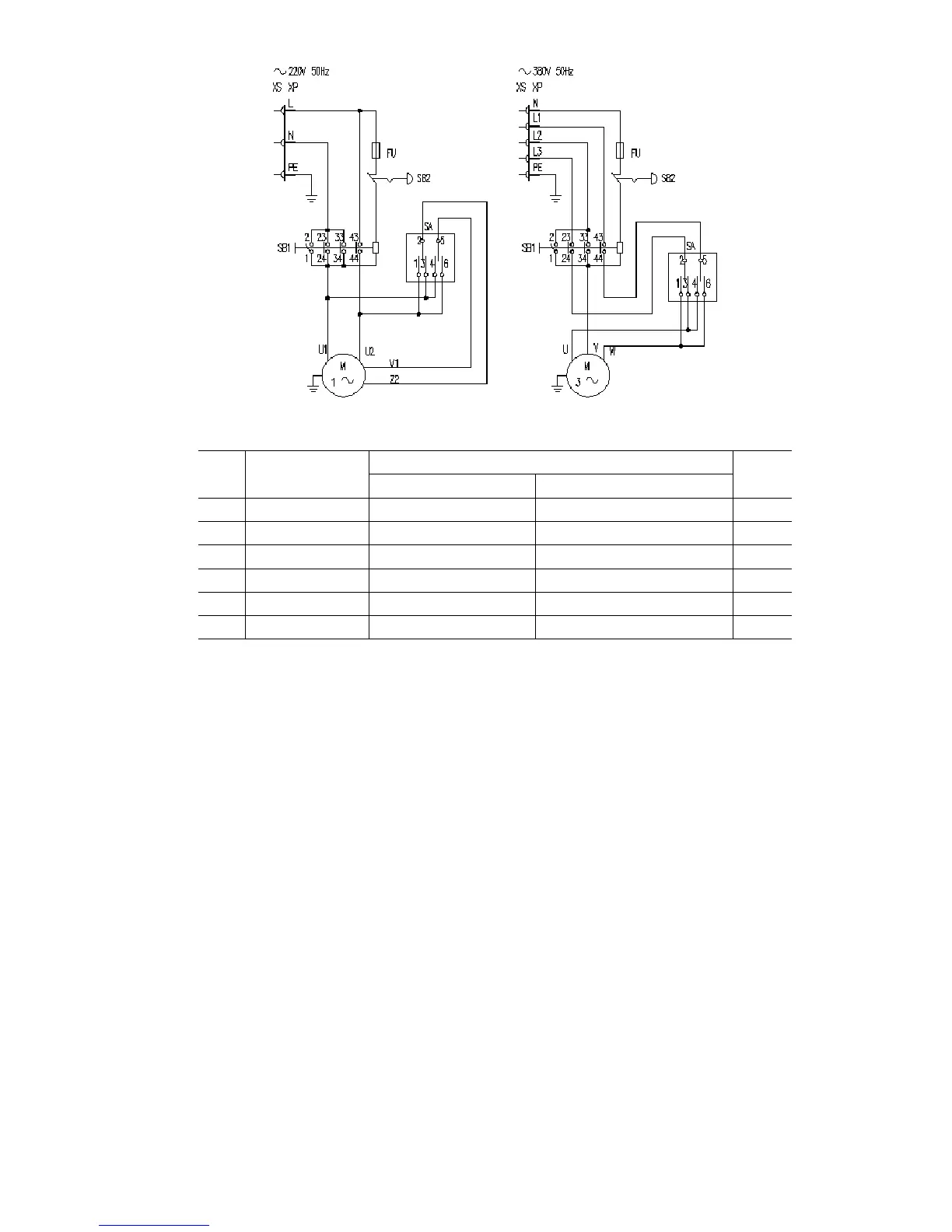

Fig.a Fig.b
Single-phase motor electric element list (see Fig. a), Three-phase motor electric element list (see Fig. b)
Fig.7 Electric diagram
● THE USE OF ANY MACHINE TOOL WITH ELECTRIC DRIVE CAN INVOLVE RISKS OF DAMAGE TO PERSONS OR THINGS. IT IS
THEREFORE NECESSARY TO ALWAYS PAY THE UTMOST ATTENTION!
● MAKE SURE THAT THE STARTING, STOPPING AND EMERGENCY CONTROLS ARE DISPLACED.
● USE THE MOST SUITABLE CLOTHING FOR THE WORKING ENVIRONMENT AVOIDING LARGE SLEEVES AROUND THE
WRISTS, SCARFS, NECKTIES, BRACELETS, RINGS AND KEEP YOUR HAIR TIED UP WHEN USING THE MACHINE.
● DURING THE USE OF THE MACHINE, ALWAYS ADOPT THE SUITABLE PERSONAL PROTECTION SUCH AS HEADPHONES
OR EARPLUGS, ANTIDUST MASKS, PROTECTION GLOVES, SAFETY SHOES.
● BEFORE STARTING WORK, CHECK THAT THE WORKPIECE DOESNT HAVE METAL INSERTS, NALS, OR KNOTS OR
DANGEROUS CRACKS, ALWAYS MACHINE THE WORKPIECE IN THE DIRECTION OF THE VEINS.
● NEVER MACHINE TOO SMALL WORKPIECES AS THEY ARE DAMGEROUS, NOR TOO BIG OR HEAVY ONES IN RESPECT OF
THE FEATURES OF THE MACHINE, NOR TOO CURVED ONES.
● TO MACHINE LONG WORKPIECES, ALWAYS INSTALL SUITABLE SUPPORTS WITH INFEED AND OUTFEED ROLLERS IN
ORDER TO BALANCE THE WEIGHT OF THE WOOD.
Code Name
Type & specification
Amount
Fig. a Single-phase motor Fig.b Three-phase motor
XP Plug Single-phase three pole 16A Three-phase four pole 380V／15A 1
FU Fuse RT14-20 2A RT14-20 2A 1
SA Change-over switch Combine with SB1 Combine with SB1 1
SB1 Switch CK3-3F／380V 13A3-PA CK3-3F／250V 13A3-PA 1
SB2 E-button MK／AE-22 MK／AE-22 1
M Motor MC90L2／B3 Y90S-2／B3 1
