ADF LINEA 85 - Page 2

ADF LINEA 820 NMV ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/8/23
2
Build out dimensions and finishing shown here for builders’
preparation. For the ZCB assembly, go to page 8 below.
Heater Cavity MUST BE VENTILATED.

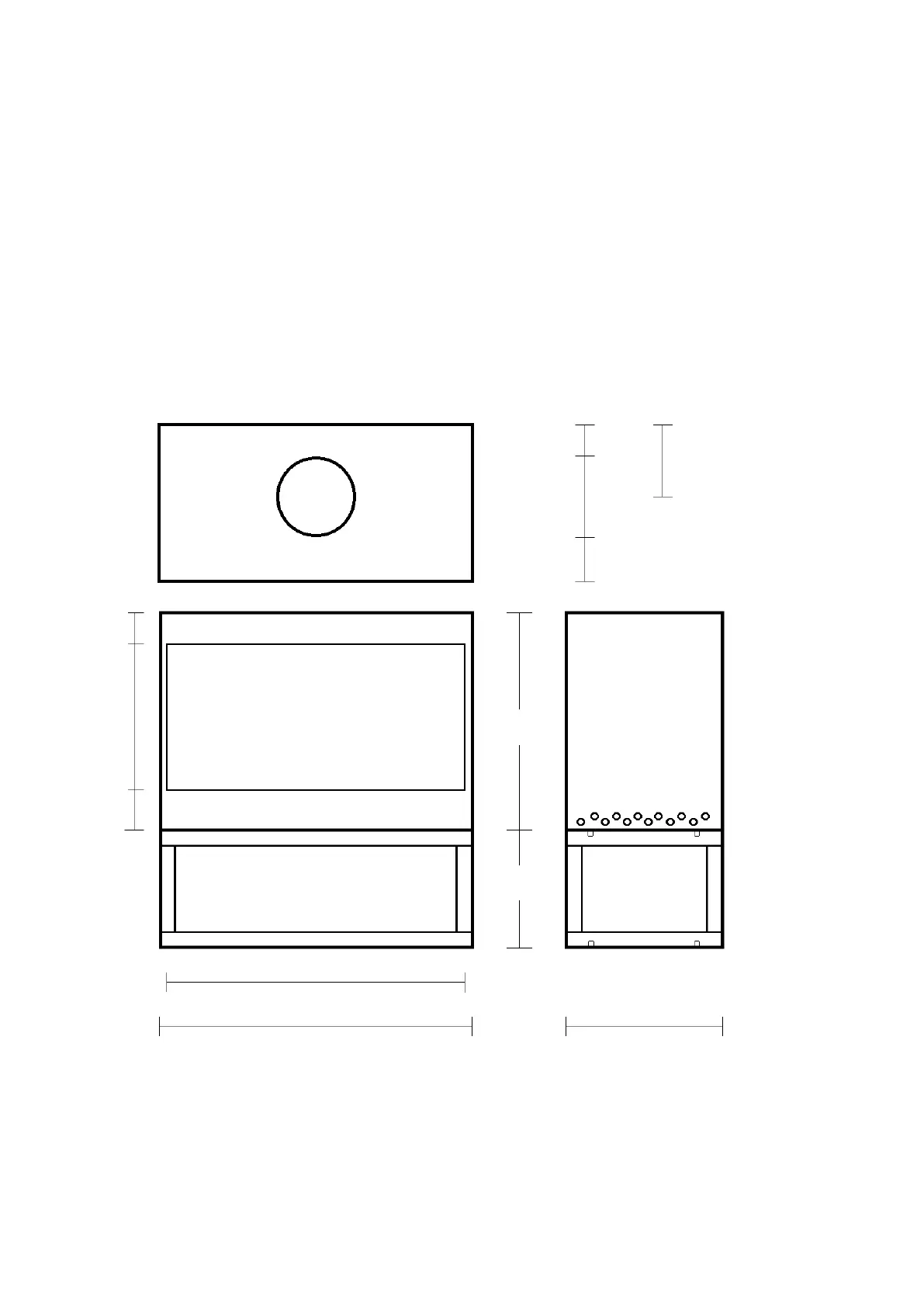

Dimensions for Zero Clearance box:
840mm
255mm
100mm
100mm
227.5mm
505mm
380mm
695mm
465mm
145mm
130mm
895mm
