ADF LINEA 820 NMV ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/8/23
7

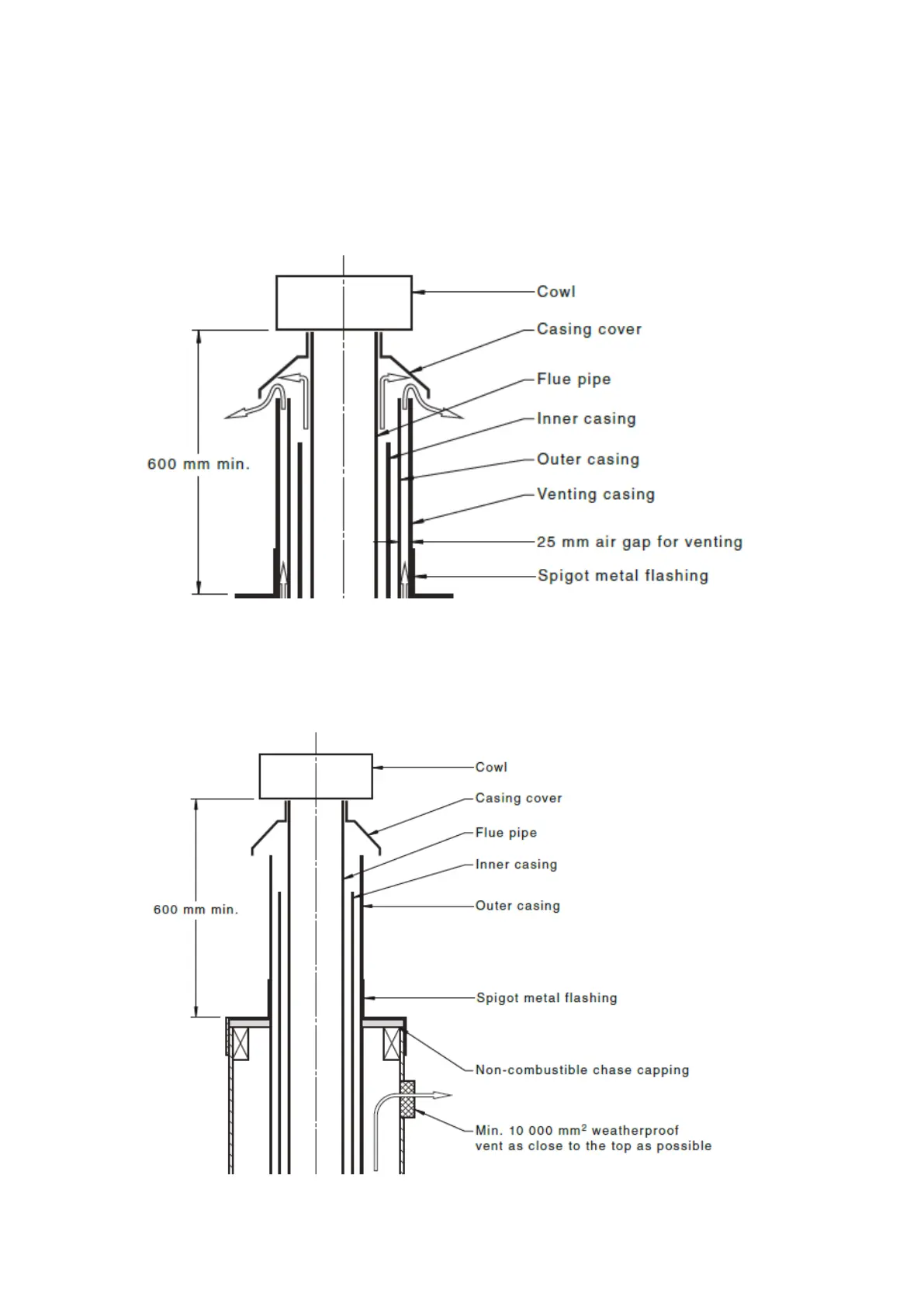

Venting through Sandwich Roof With Raked Ceiling
When no Roof cavity available.
Option 1: Covered Vented Casing
Options 2: Chimney Chase construction and side vent.
