8

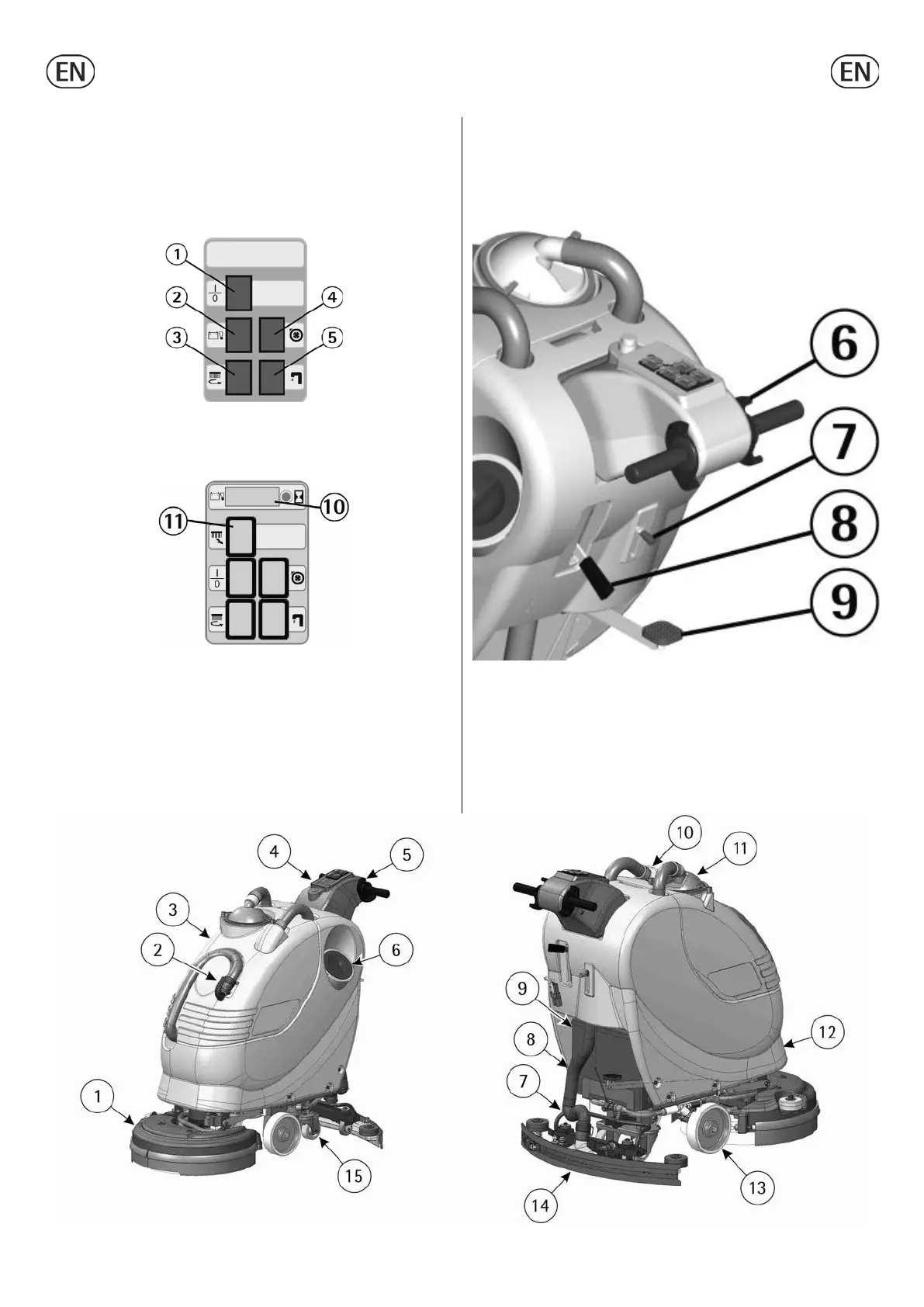

INSTRUMENT BOARD AND CONTROLS LEGEND
1. IGNITION SWITCH
2. BATTERIES CHARGE LEVEL SIGNAL
3. BRUSH MOTOR SWITCH
4. SUCTION MOTOR SWITCH
5. SOLENOID VALVE SWITCH
6. LEVERS DRIVE CONTROL
7. LEVER SOLUTION VALVE
8. LEVER SQUEEGEE LIFTING
9. PEDAL BRUSH BASE GROUP LIFTING
2. BRUSH RELEASE (ONLY ON BRUSH BASE 50)
1. BRUSH BASE GROUP
2. PLUG EXHAUST HOSE RECOVERY TANK
3. RECOVERY TANK
4. INSTRUMENT BOARD
5. LEVERS DRIVE CONTROL
6. SCREW CAP FOR INLET DETERGENT SOLUTION
7. GUIDE SPRING SQUEEGEE HOSE SQUEEGEE HOSE
8. SQUEEGEE HOSE
9. BATTERIES
10. INLET OPENING SQUEEGEE HOSE
11. SUCTION COVER
12. SOLUTION TANK
13. WHEELS
14. SQUEEGEE ASSEMBLY
15. CASTOR WHEELS
