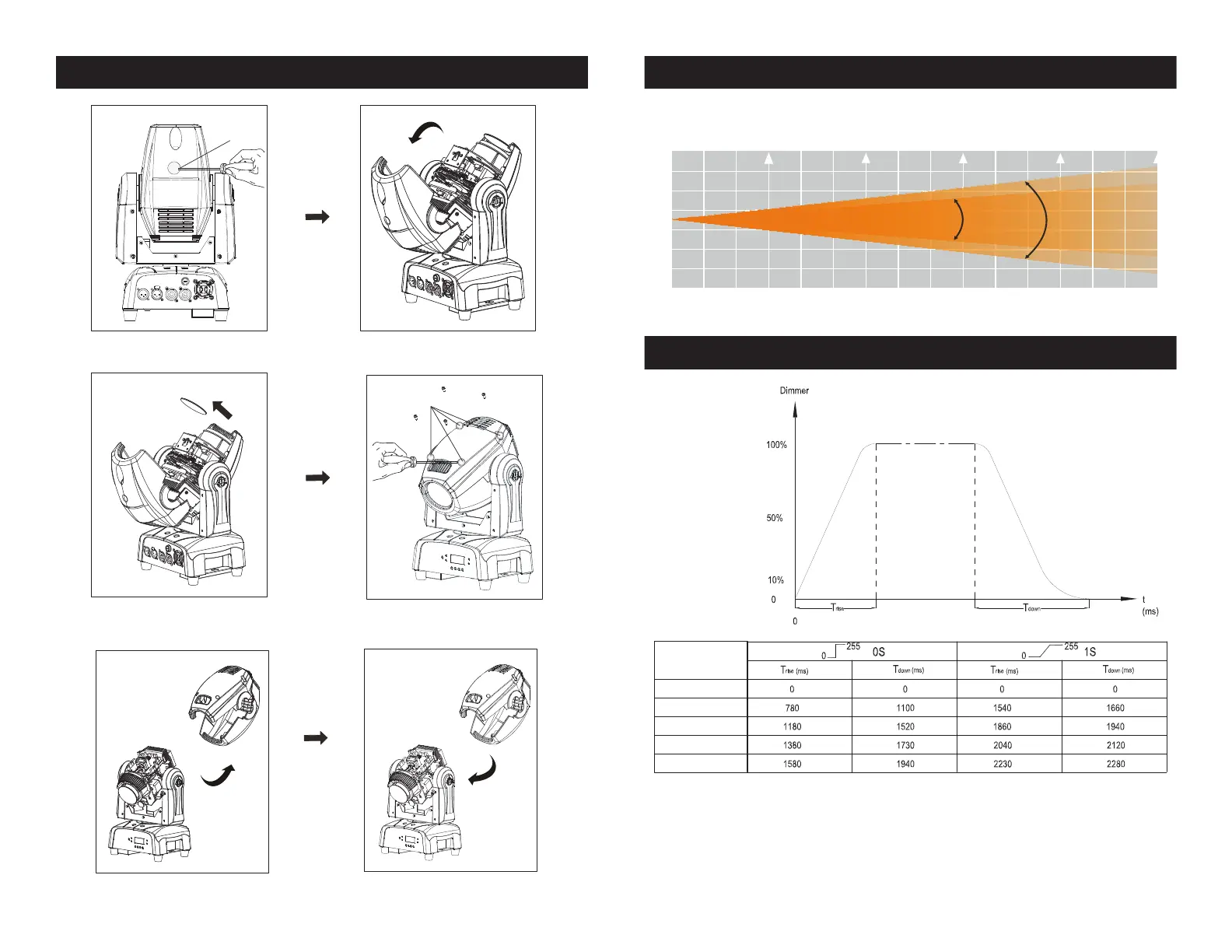

ADJ Focus Spot Two - Head Casing Removal and Technical Data; Removing the Head Casing; Photometric Chart Information; Dimmer Curve Chart Explanation

ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 30 ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 31
Screw
Screw
Focus Spot Two Removing the Head Casing
1. Unscrew the single screw 2. Flip the top cover back
3. Remove the lens
4. Unscrew the 4 screws
located on the other side
Focus Spot Two Dimmer Curve Chart
(Fade Time) (Fade Time)
Ramp Effect
Standard
Stage
TV
Architectural
Theatre
Focus Spot Two Photometric Chart
Distance(m)
1
2
3
4
Lux
15
°
34410 8370 3790 2090
20
Lux
°
25700 6240 2780 1530W
0.317
0.634
0.95
1.267
Diameter(m)15°
Diameter(m)20°
0.389
0.778
1.166
1.555
15
°
20
°
W
5
1.584
1.944
1300
950
ADJ-MS60
