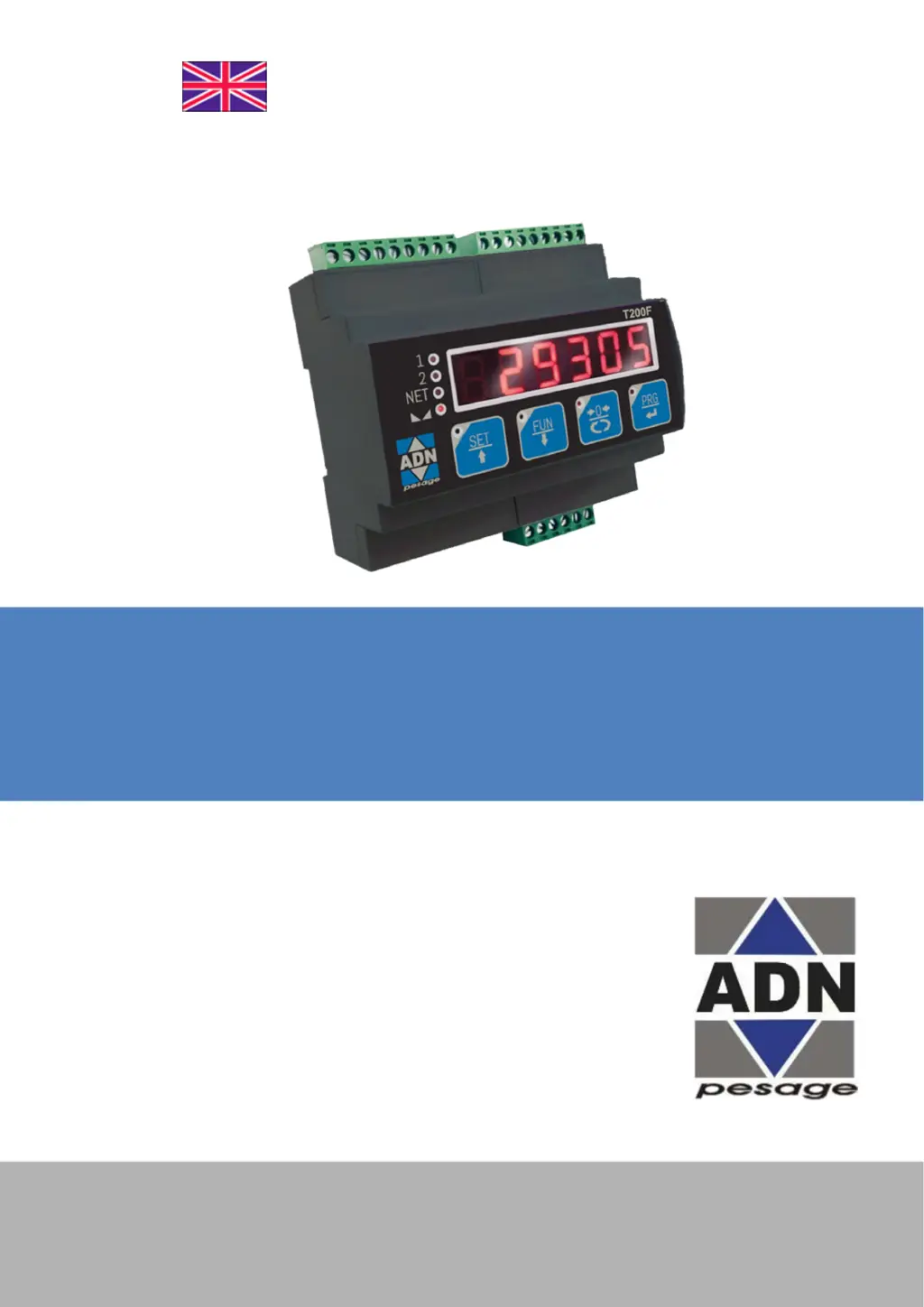

WEIGHT TRANSMITER
T200F
with RS232 serial, analog 4-20 mA 0-10V
Fieldbus OPTION : MODBUS TCP, PROFINET, PROFIBUS, ETHERNET IP, CAN OPEN, ETHERCAT
Pesage, Dosage, Machine de Conditionnement
ADN Pesage: 7 Rue du bois Malhais, 78990 Saint Germain de la Grange France
Tél.: 33(0) 1 48 63 00 76 - Télécopie: 33(0) 1 48 63 72 06 - Mail: contact@adnpesage.fr
ENGLISH
Installation and User Manual

Table of Contents

Questions and Answers

  • R
    randy70Aug 14, 2025
    What to do if the weight display is frozen on my ADN pesage T200F?
    • B
      Brandy FranklinAug 14, 2025
      If the weight display is frozen on your ADN pesage Transmitter, it could be due to a malfunctioning or improperly connected load cell. Use a multimeter to measure 5Vdc between EXC+ and EXC-, and check for a lower value between SENSE+ and SENSE- (the SENSE voltage will be lower the greater the distance between the instrument and the load cells). Also, check the millivolt variation between SGN+ and SGN- when loading or unloading the load cells.
  • J
    James WilliamsAug 17, 2025
    Why aren't the inputs and/or outputs working properly on my ADN pesage Transmitter?
    • M
      Megan TerryAug 17, 2025
      If the inputs and/or outputs are not working correctly on your ADN pesage Transmitter, it may be due to wiring or software setup errors. Use the I / O Test Function to verify the correct operation of inputs and outputs and verify the settings of the specific program.
  • M
    Maxwell HallAug 21, 2025
    How to fix serial communication issues with my ADN pesage Transmitter?
    • S
      Suzanne LewisAug 21, 2025
      If the serial communication on your ADN pesage Transmitter isn't working properly, it could be due to incorrect installation or incorrect selection of operation of the serial interface. Check the connections as described in the installation manual and select the appropriate settings.
  • A
    andersonericAug 25, 2025
    What to do if ADN pesage T200F Transmitter remains switched off?
    • M
      melindaclarkAug 25, 2025
      If your ADN pesage Transmitter remains switched off, the cause may be a wrong supply voltage. Power up the instrument with the correct supply voltage.
  • J
    Jenna HowardAug 27, 2025
    Why is a hyphen shown in the top display of my ADN pesage T200F Transmitter?
    • N
      Nicholas CollinsAug 28, 2025
      A hyphen in the top display of your ADN pesage Transmitter indicates that the acquired weight cannot be shown because it exceeds the available five digits or is greater than the capacity of the cells. To resolve this, configure setup parameters that are compatible with system features.
  • T
    Teresa VegaAug 30, 2025
    What to do if the semi-automatic tare function doesn't work on my ADN pesage T200F Transmitter?
    • N
      Nancy WilliamsAug 30, 2025
      If the semi-automatic tare function isn't working on your ADN pesage Transmitter, it might be because the gross weight is negative or exceeds the maximum capacity, or the weight isn’t stable. Check the gross weight. Wait for the weight to stabilise or adjust the weight filter parameter.
  • K
    Karen ReyesSep 3, 2025
    Why doesn't the semi-automatic zero-setting function work on my ADN pesage T200F?
    • K
      Kathryn OlsonSep 3, 2025
      If the semi-automatic zero-setting function isn't working on your ADN pesage Transmitter, it could be because the gross weight exceeds the action limit or the weight doesn’t stabilise. To re-establish the zero, calibrate the weight. Wait for the weight to stabilise or adjust the weight filter parameter.
  • G
    Gerald GarrettSep 6, 2025
    What does it mean when my ADN pesage Transmitter display shows the O-L message?
    • M
      Meredith DillonSep 6, 2025
      The O-L message on your ADN pesage Transmitter indicates that the weight cannot be detected because the cell is not available or has been connected incorrectly. Check the connections of the cells.
  • C
    Courtney MillerSep 10, 2025
    How to correct the number of decimal places on my ADN pesage T200F Transmitter?
    • J
      James PollardSep 10, 2025
      If the number of decimal places is wrong on your ADN pesage Transmitter, it is because an incorrect division value was selected. Select the correct division value in the main menu.
