Mark lines

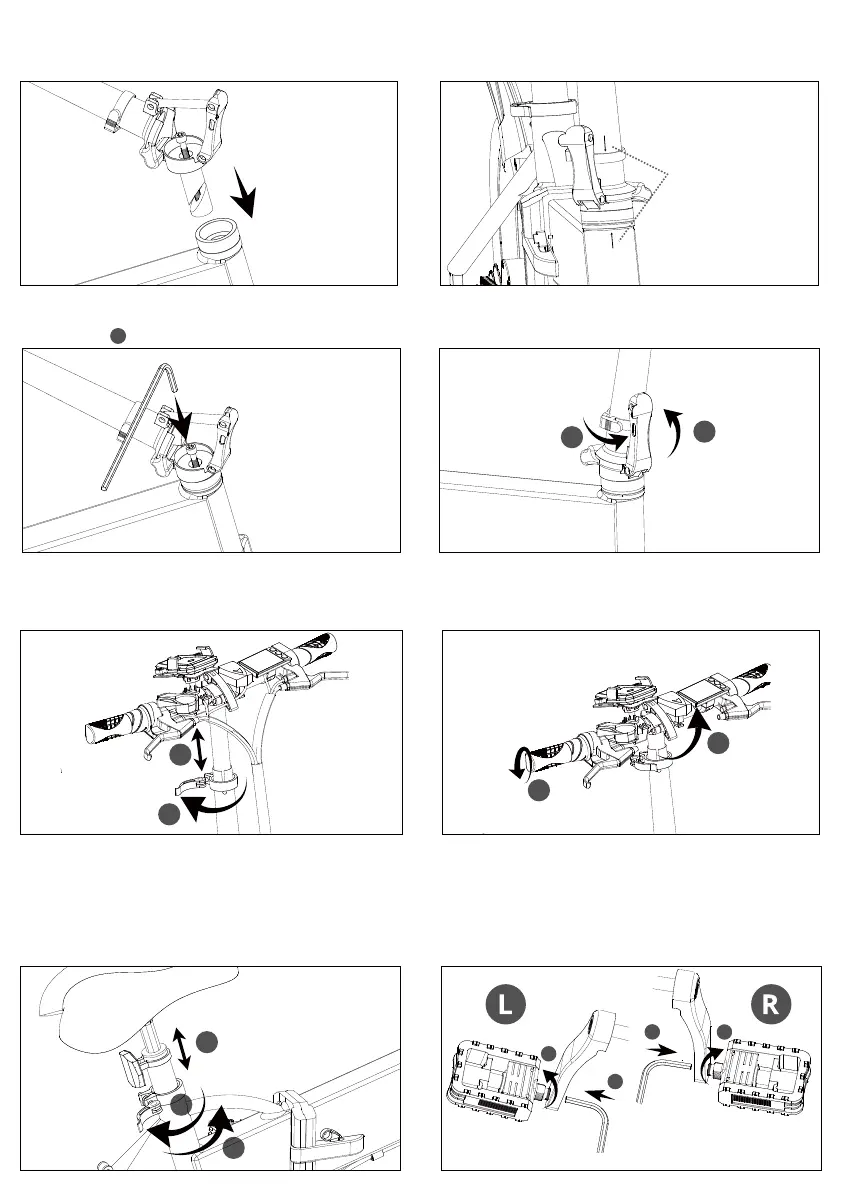

7. Place the head tube into the front fork head tube
9. Open the lock firstly.After alignment, put down the
tube, use the tool to lock the screws.
11. Open the handlebar lock, adjust the height of the head,
and then lock tightly.
13. Insert the saddle into the saddle tube. Adjust the height
of the saddle, and then lock tightly.
1. Align the left pedal ( with "L" mark ) to the crank thread
and rotate the pedal counterclockwise.
2. Align the right pedal ( with "R" mark ) to the crank
thread and rotate the pedal clockwise.
3. Tighten the pedals with an Hexagon screwdriver.
12. Open the cross handle lock, adjust the direction of the
head grip, and then lock tightly.
10. Put the tube up, close the head lock, snap the safety
lock into the head lock
8. Straighten the head and make sure that the arrow on
the label is aligned with the marking line. Make sure that
the bicycle head and the body are vertical to each other.
4 3
7
