CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

themachine.Thisjunctionboxisattachedtothelowerframeofthemachine,belowthecontrolboxwhen
thedoorisclosed.
Removethejunctionboxcover,attachtheconduitandconnectablack120voltsupplywiretotheblackwire
inthejunctionbox.Connectawhiteneutral
supplywiretothewhitewireinthejunctionbox.When
poweredup,testtheneutralwiretoagroundsourcewithavoltmeter,itshouldread0to6volts.Testthe
blackwiretoagroundsource,itshouldread110‐120volts.Attachabuildinggroundwiretothegroundlug
locatedinthejunctionboxandtightenallwires.Replacethejunctionboxcover.
  

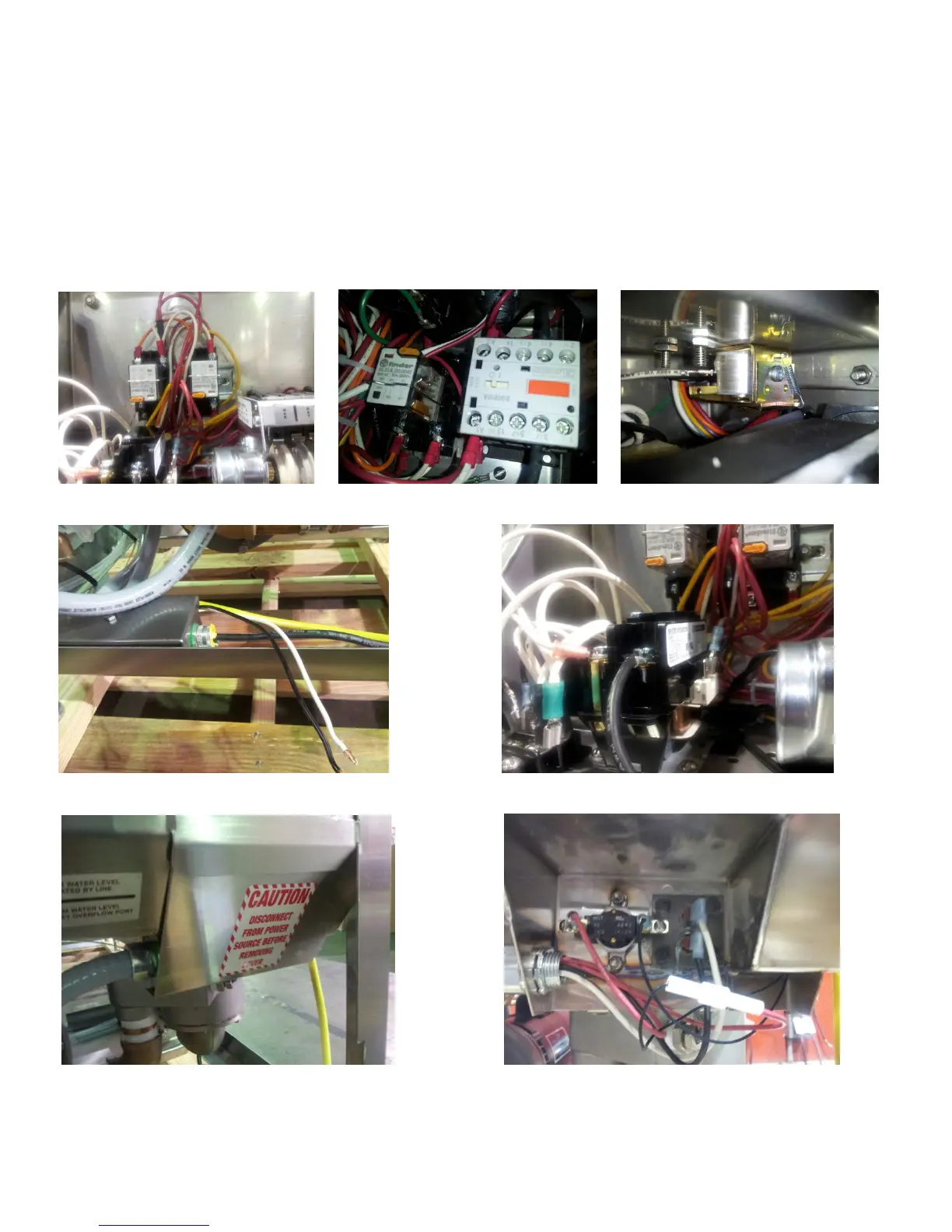

LeftisStartRelay,rightisHeaterRelayLeftisDrainRelay,rightisHeaterContactorOptionalbuzzerforlowchem.alarm
 
Powerjunctionboxforincoming120vpowerWashmotorcontactortotheleftofthecamtimermotor
  
HeaterterminalboxinrightfrontsideofthepanHeaterboxlesscover,thermostat,element,floatwires 
