ADT Pulse DBC835 - Physical Details

ADT Video Doorbell
Quick Installation Guide
INTRODUCTION
4
DBC835 Wireless Doorbell Camera Installation
Physical Details
The DBC835 supports both analog and digital chimes within 8-24 AC voltage
range. The operation temperature is –4°F to 122°F. (–20°C to 50°C)
(The battery will not be charged when the temperature is < 32°F or discharge
when internal temperature is >138°F)

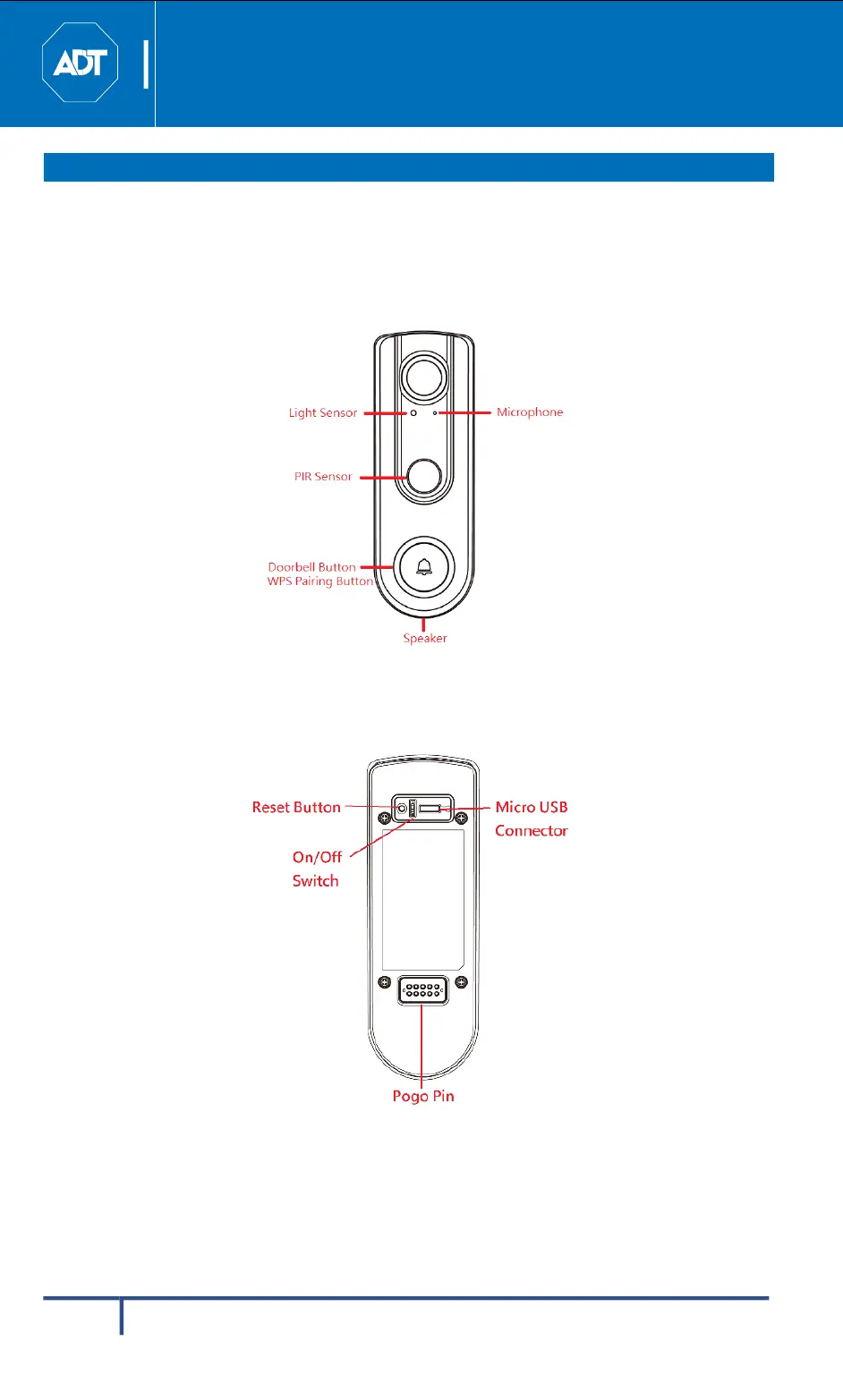

Figure 1-1 Front Panel
Figure 1-2 Rear Panel
