Adtec EN-30 - Hardware Overview; Back Panel Connectors and Ports

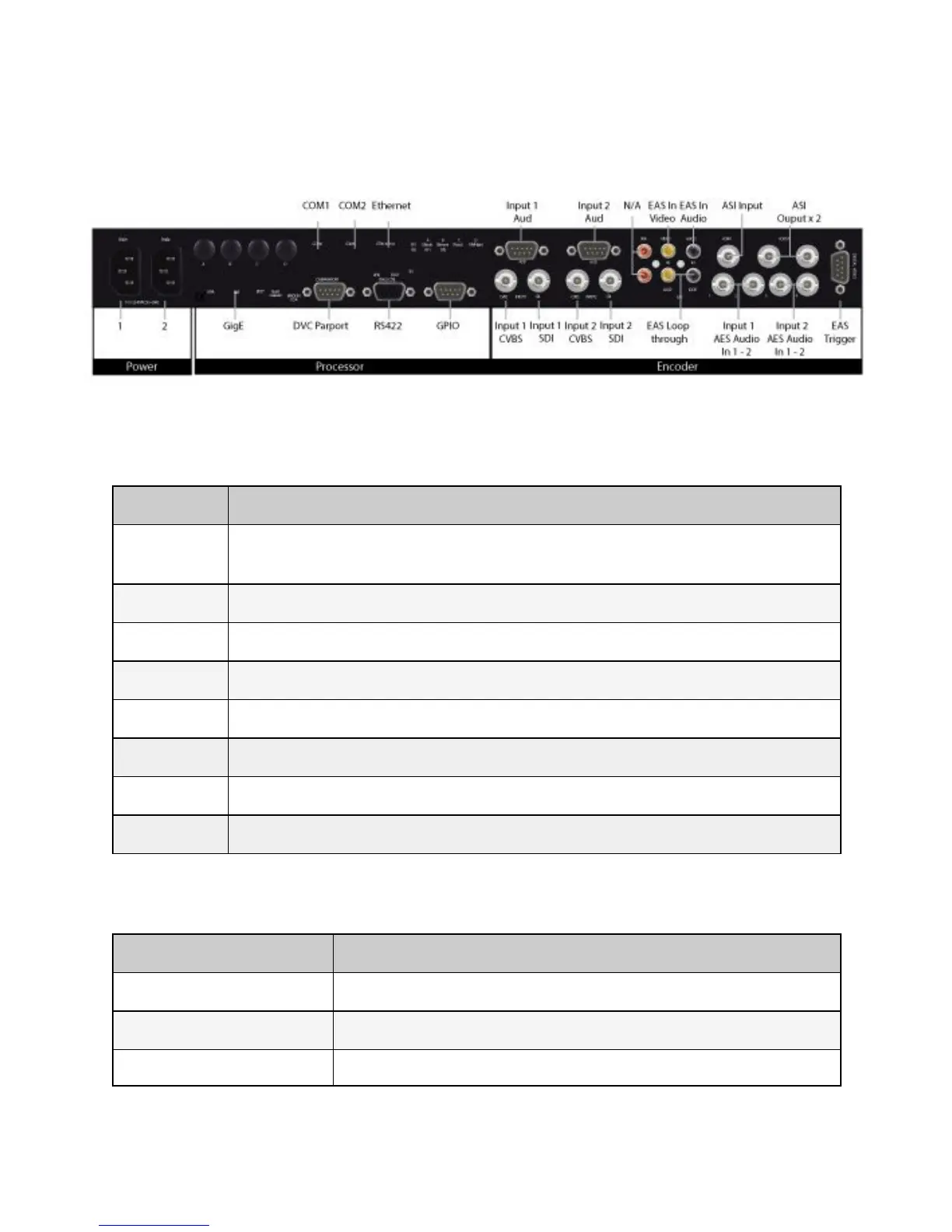

Back Panel Diagram
Processor Connectors
Connection
Function
AC Power
AC Power- standard 3-pin plug (70-240 VAC 50-60 Hz), 5VDC Power (x2) -
External Power Only
GigE
GigE Interface- TS Output over RTP/UDP
COM2
API Serial Communication Interface
COM1
Serial Port used for Troubleshooting
Ethernet
10/100BASE-T - Ethernet interface
DVC Parport
9-pin parallel I/O interface for control systems
RS422
Not Currently Supported
GPIO
Tally and Control Port
Video/Audio Inputs
Connection
Function
HD/SD-SDI Input 1
BNC 75 Ohm Input
CVBS Composite Input 1
BNC 75 Ohm Input
Analog Audio Input 1
DB9
