ADT-TP3340DJ Three-axis Dispenser
- 34 -
processing.
(3) Adjusting order of internal points of curve

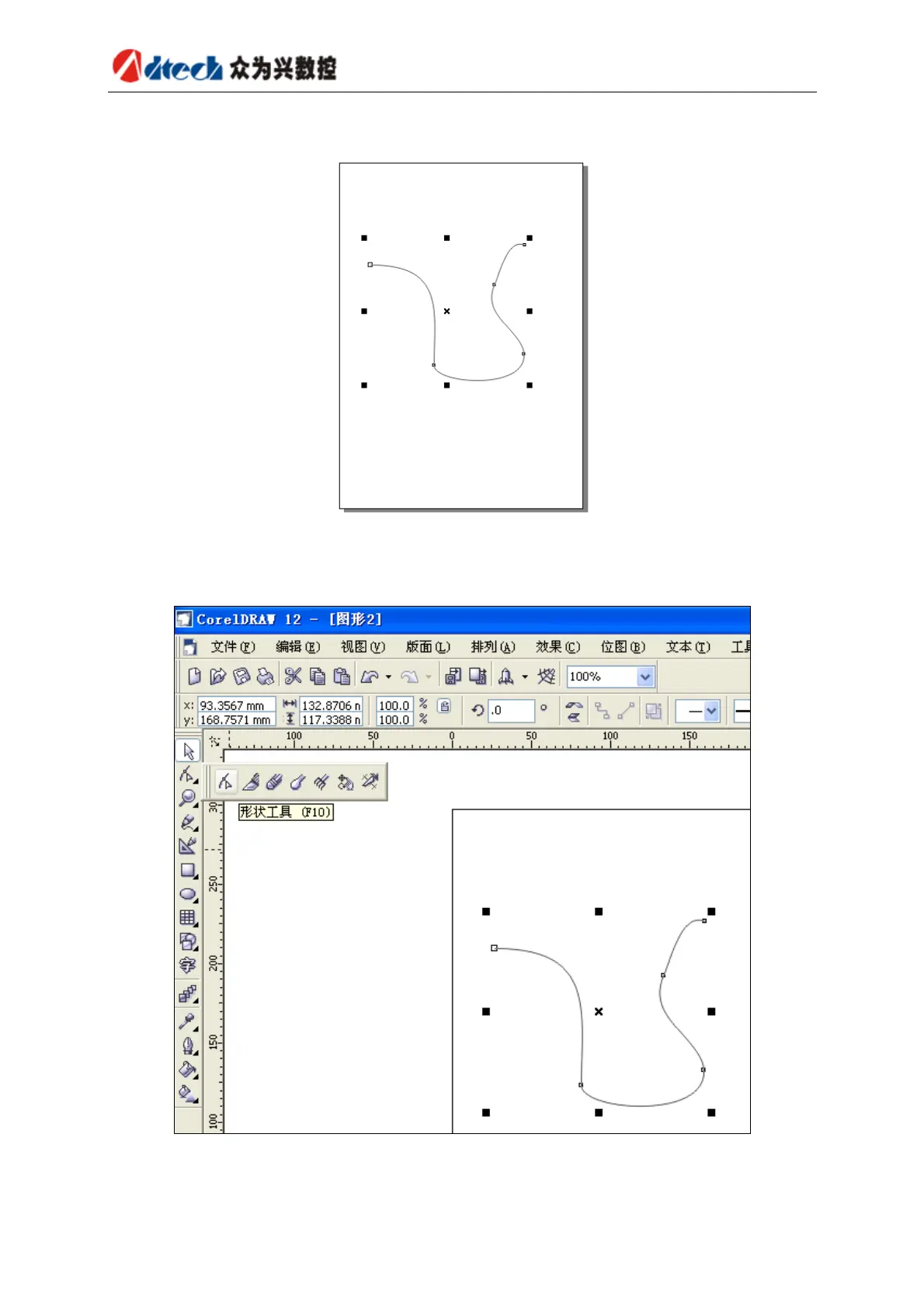

As shown in the figure above, you can find that the two endpoints of the curve are different in
size. The bigger endpoint is the start and the smaller endpoint is the end. You can change their order in
the following method:
Click the icon in the second row in the toolbar in the left to select the Shape tool icon (as in the figure
above), right click an endpoint of the curve, select “Reverse curve”, and thus the order of internal points of
the curve is changed (as in the figure below).
