2.5.2.2 Medium Enclosure

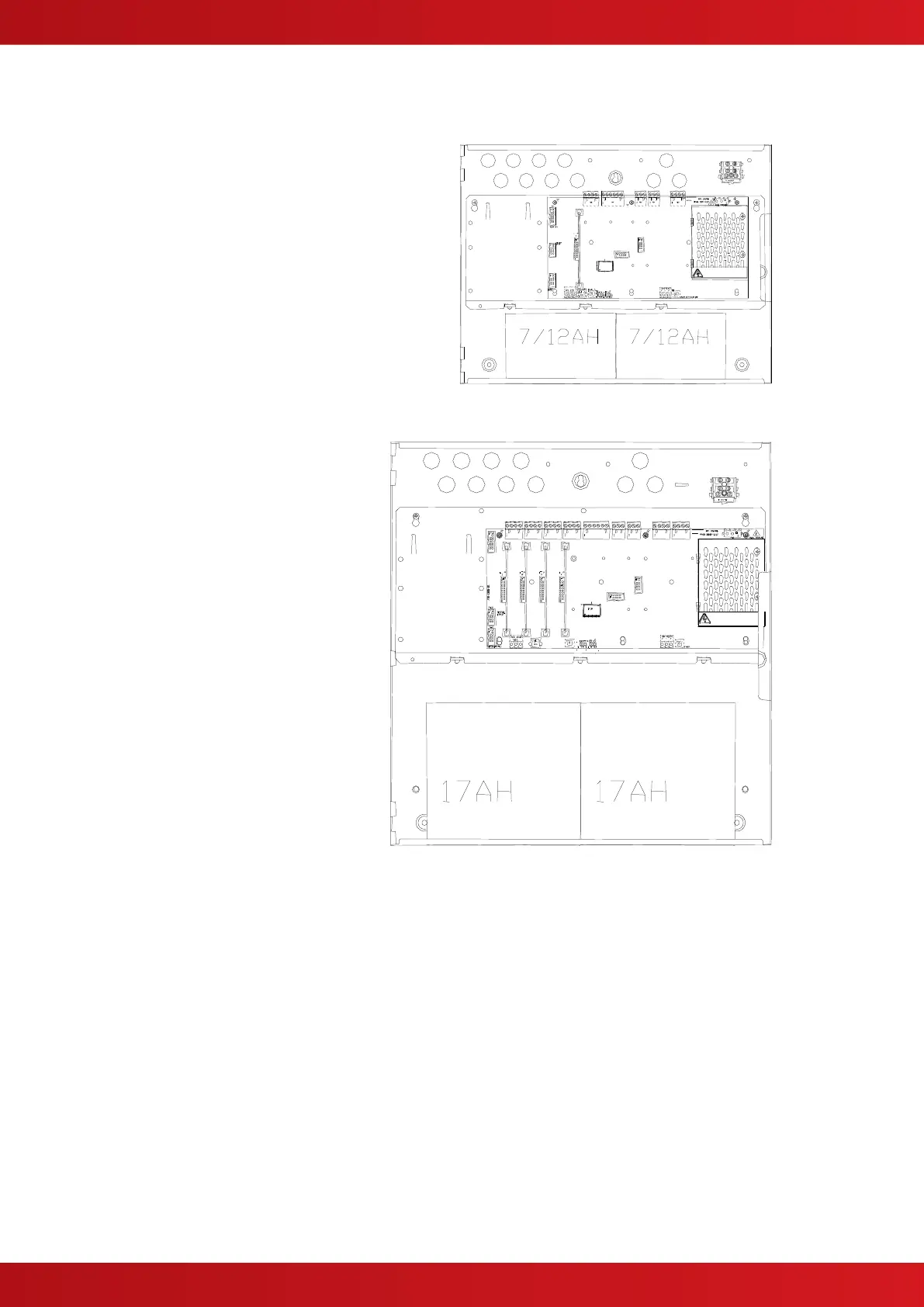

The diagrams opposite show the
recommended location and orientation
for 7Ah – 12AH batteries within the
panel.
WARNING:
HIGH VOLTAGE INSIDE
DO NOT REMOVE COVER
No Serviceable Parts Inside
2.5.2.3 Large Enclosure
The diagrams opposite show the
recommended location and orientation
for 7Ah – 17AH batteries within the
panel.
WARNING:
HIGH VOLTAGE INSID
DO NOT REMOVE COVER
No Serviceable Parts Inside
