Assembly guide
Main Chassis

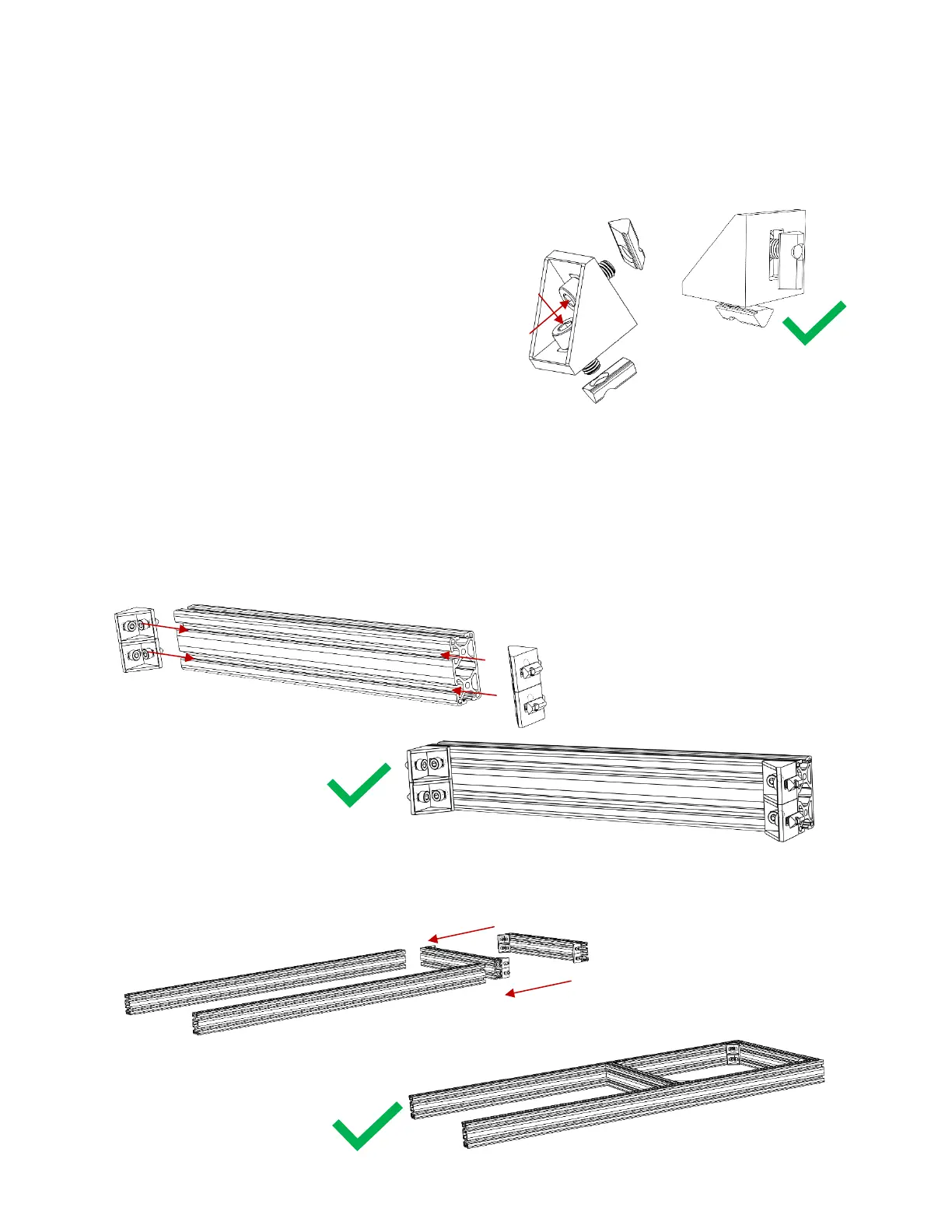

1.
Assemble 8 X corner gussets
with 2 M8 screws and 2 M8 T-Nuts.
Screw in the T-Nuts no more than ½ a turn.
Make sure to respect the shown orientation
of the T-Nuts for trouble-free assembly.
2.
Slide the gussets on either side of the 19” x 3” extrusion.
Tighten the screws fully using a 6mm allen key.
3.
Slide the remaining open part of the gusset through the 50” x 3” extrusions.
