7.

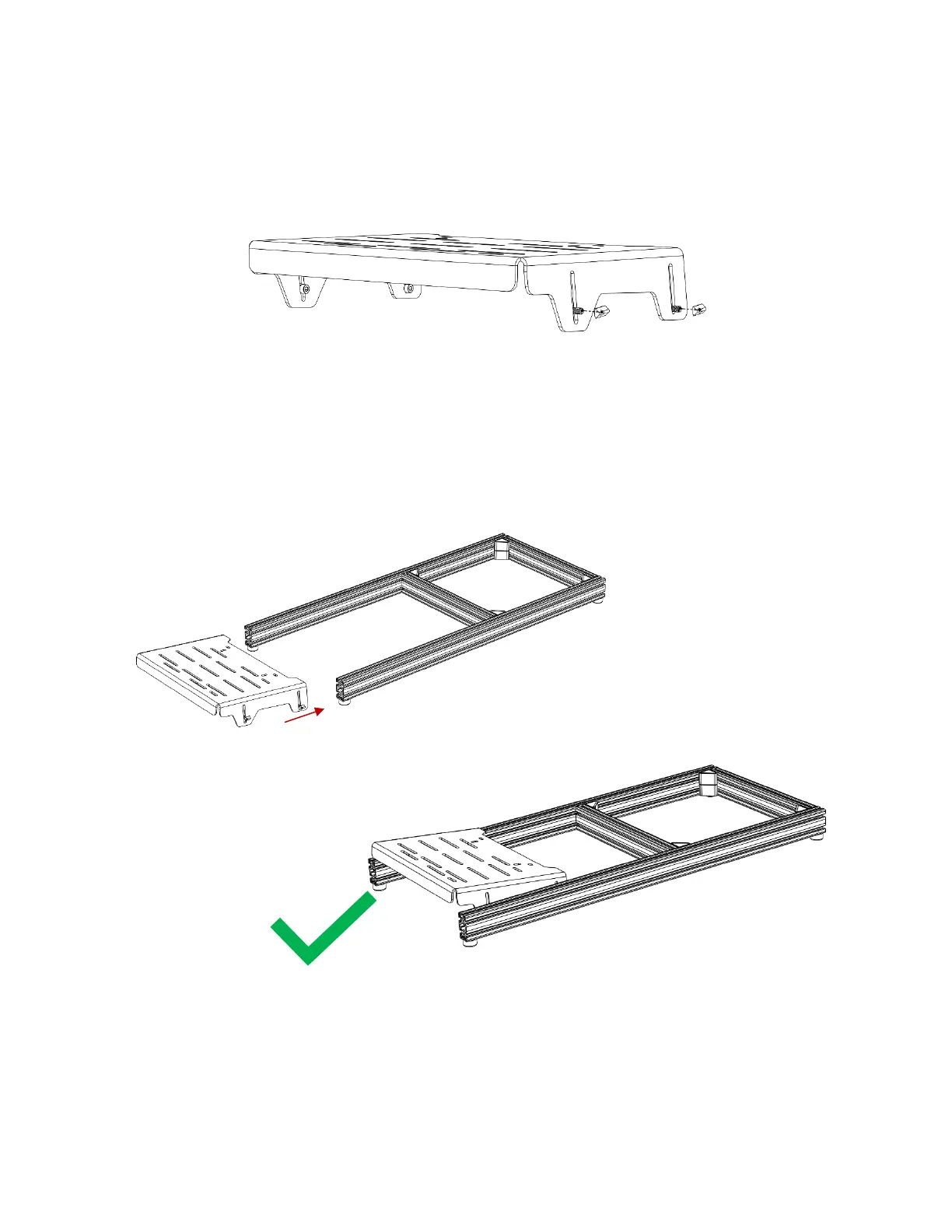

Assemble 4 X M8 X 16 Socket screws and 4X M8 T-Nuts on the pedal tray
sides. Screw in the T-Nuts no more than ½ a turn.
8.
Slide the pedal tray through the 50” Extrusions. Slide through the top slot for the
highest adjustments capabilities, or the bottom slot for the lowest adjustments.
Tighten it snug for the moment, but only fully tighten after positioning your pedals.
(See User guide section for details)
