Advantage ADV120FDCH - Product Inner Structure

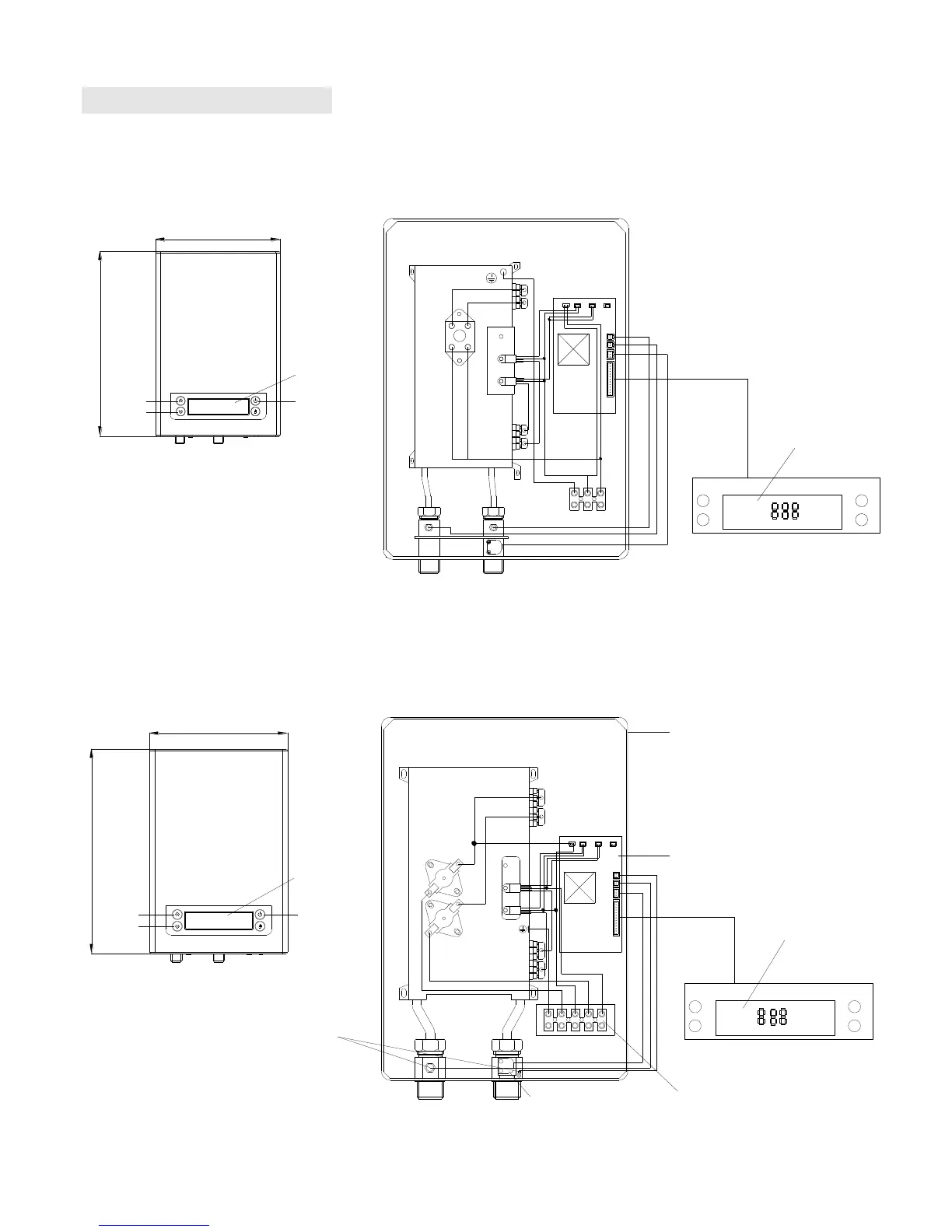

■Product Inner Structure
MODEL ADV120FDCH
ADV150FDCH ADV180FDCH
260mm
285mm
E L1 L2
Display screen
Display screen
UP
ON/OFF
DOWN
E L1 L2 L1 L2
bottom case
control board
Display screen
Terminal blocks
flowmeter
Temp.sensor
heating chamber
Display screen
UP
ON/OFF
DOWN
260mm
285mm
