Advantage ADV120FDCH - Technical Data

ADV210FDCH ADV240FDCH ADV270FDCH
AC 240V/60Hz
■Technical Data
Note: *suitable recognized strain relief means shall be provided when the product installed.
Model
ADV120FDCH
ADV150FDCH
ADV180FDCH
ADV210FDCH
ADV240FDCH
ADV270FDCH
Phase
1
1
1
1
1
1
Voltage V
240
240
240
240
240
240
Wattage kW
12
15
18
21
24
27
Max. Amp. load A
50
63
75
88
100
113
Min. required circuit breaker
A
60
2 X 40
2x50
3 X 40
3 X 40
3 X 50
Min. wire size AWG cooper
8
2 X 8
2 X 8
3 X 8
3 X 8
3 X 8
Min. water flow to activate
GPM / L/min.
0.85/ 3.2
0.85 / 3.2
0.85 / 3.2
0.85 / 3.2
0.85 / 3.2
0.85 / 3.2
Weight kg
3.6
5.3
5.3
5.5
5.5
5.5
Product Dimensions mm
385x260x93
385x260x93
385x260x93
385x260x93
385x260x93
385x260x93
Water connections NPT
1/2”
3/4”
3/4”
3/4”
3/4”
3/4”

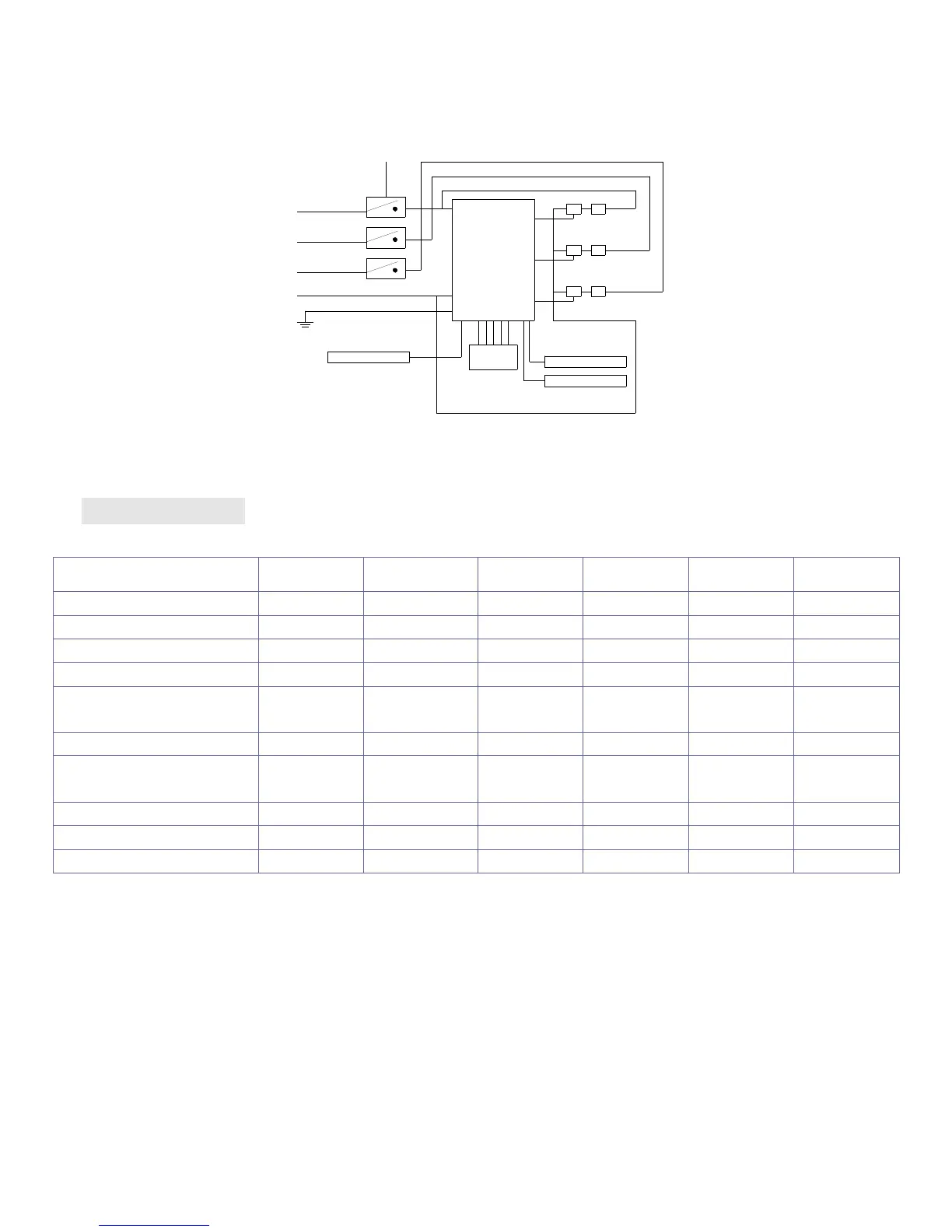

L1
L1
L1
T1
T2
T3
R1
R2
R3
L2
E
THERMAL CUT-OUT 90℃
CONTROL
SYSTEM
DISPLAY
SCREEN
INLET TEMP.SENSOR
FLOWMETER
OUTLET TEMP.SENSOR
REMARK: J:RELAY R:HEATING SYSTEM T:TRIAC
