Advantech ADAM-6000 series User Manual

3-2-2 DIN rail mounting
The ADAM-6000 module can also be secured to the cabinet by using mounting rails. Fix the
ADAM-6000 module with the DIN Rail adapter as figure 3-3. Then secured it on the DIN rail as figure
3-4. If you mount the module on a rail, you should also consider using end brackets at each end of the
rail. The end brackets help keep the modules from sliding horizontally along the rail.

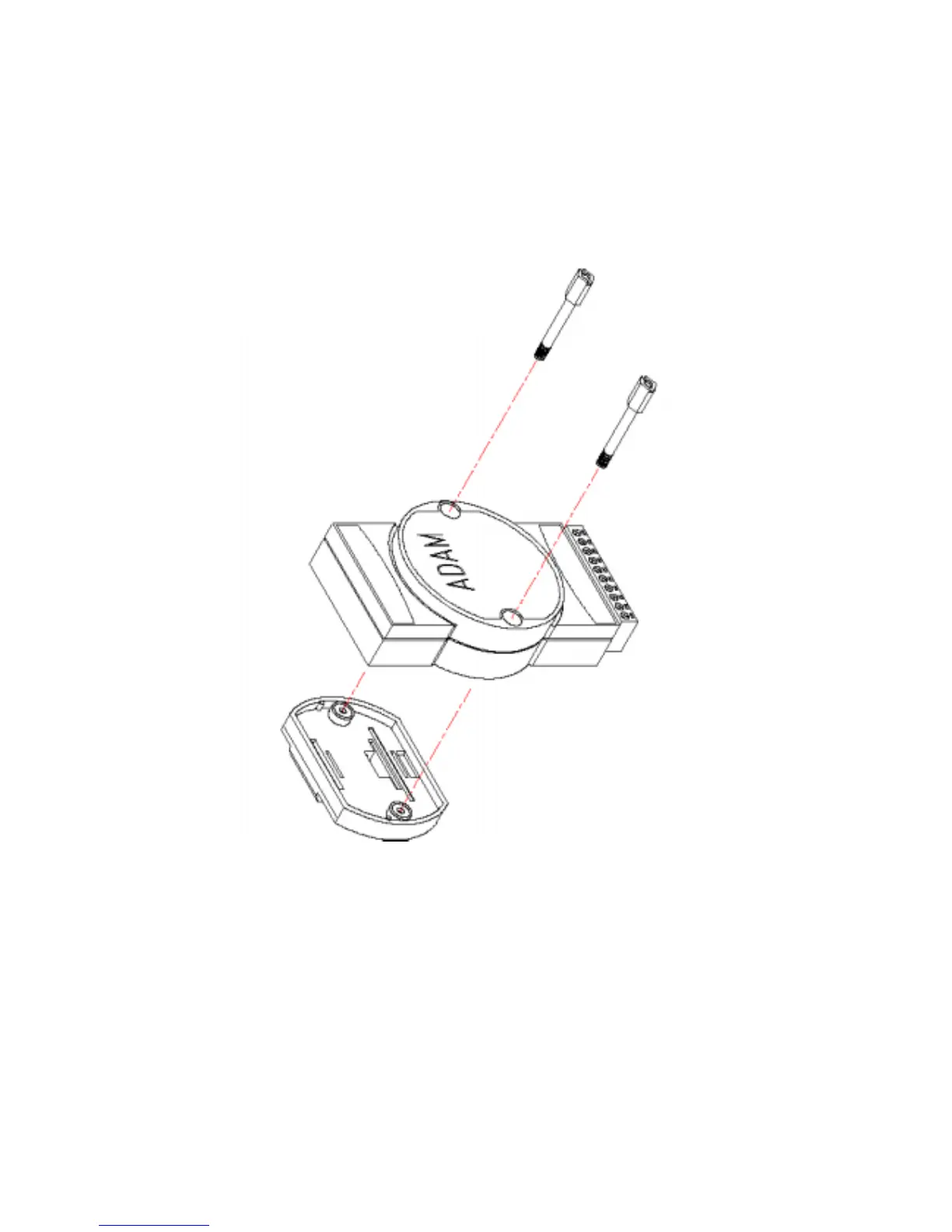

Figure 3-3: Fix ADAM-6000 module on the DIN rail adapter
