3-3 Wiring and Connections
This section provides basic information on wiring the power supply, I/O units, and network connection.
3-3-1 Power supply wiring
Although the ADAM-6000/TCP systems are designed for a standard industrial unregulated 24 V DC
power supply, they accept any power unit that supplies within the range of +10 to +30 V
DC
. The power
supply ripple must be limited to 200 mV peak-to-peak, and the immediate ripple voltage should be
maintained between +10 and +30 V
DC
. Screw terminals +Vs and GND are for power supply wiring.
Note: The wires used should be sized at least 2 mm.

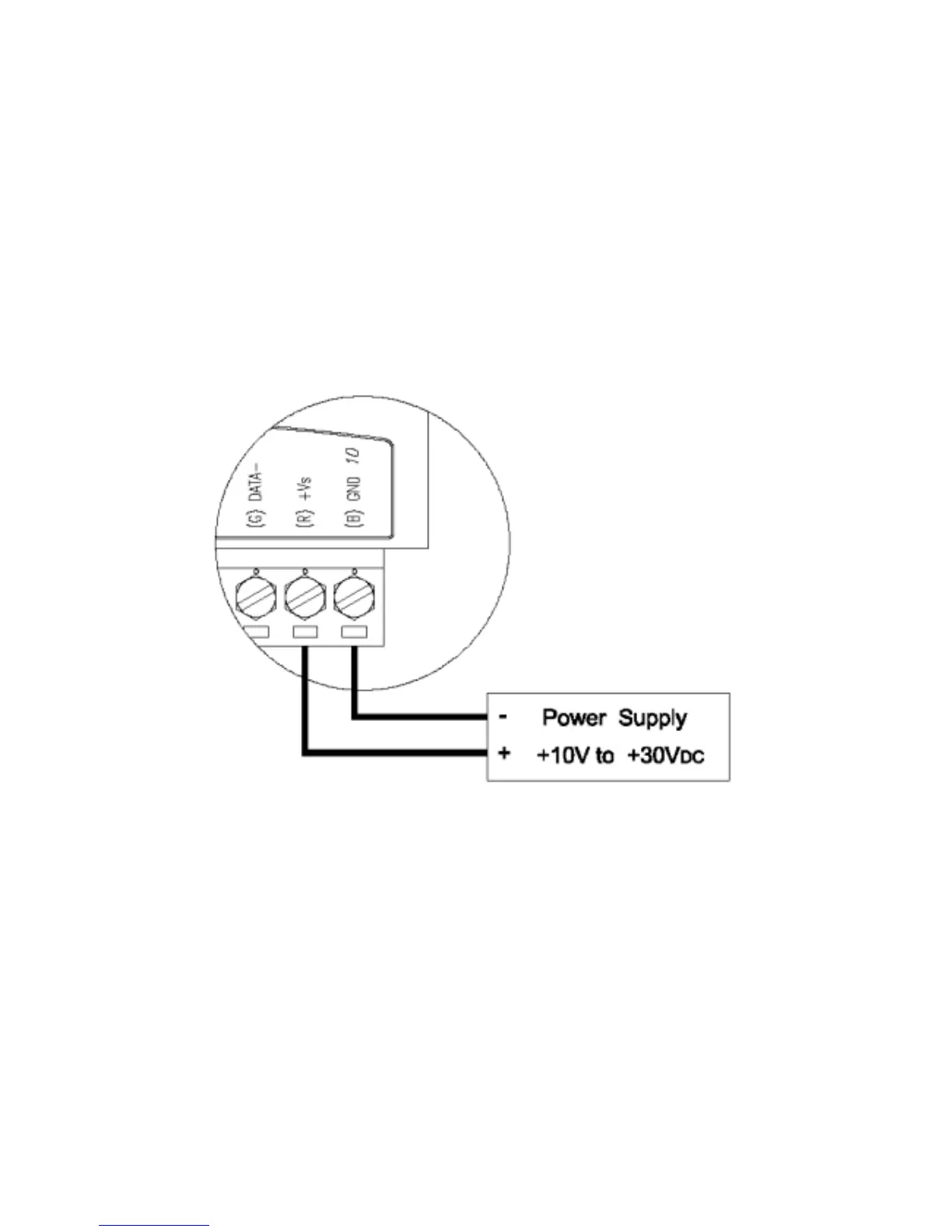

Figure 3-5: ADAM-6000 Module power wiring
We advise that the following standard colors (as indicated on the modules) be used for power lines:
+Vs (R) Red
GND (B) Black
