Advantech ADAM-6000 series User Manual

Application Wiring

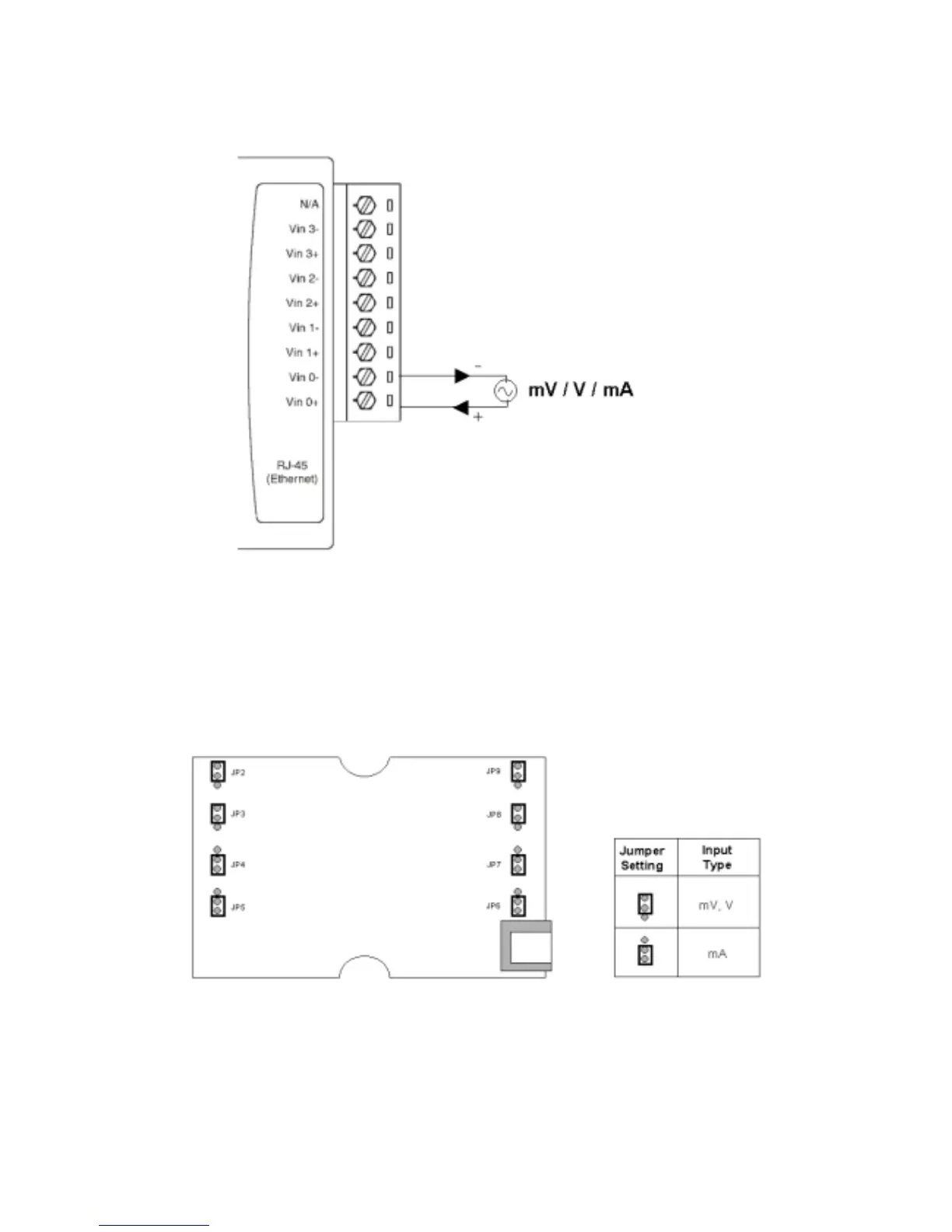

Figure 4-2: ADAM-6017 millivoltage, voltage, and current Input Wiring
ADAM-6017 has built with a 120 ohms resistor in each channel, users do not have to add any resistors
in addition for current input measurement. Just adjust the jumper setting to choose the specific input
type you need. Refer to Figure 4-3, each analog input channel has built-in a jumper on the PCB for
users to set as a voltage mode or current mode.
Figure 4-3: ADAM-6017 Analog Input Type Setting
