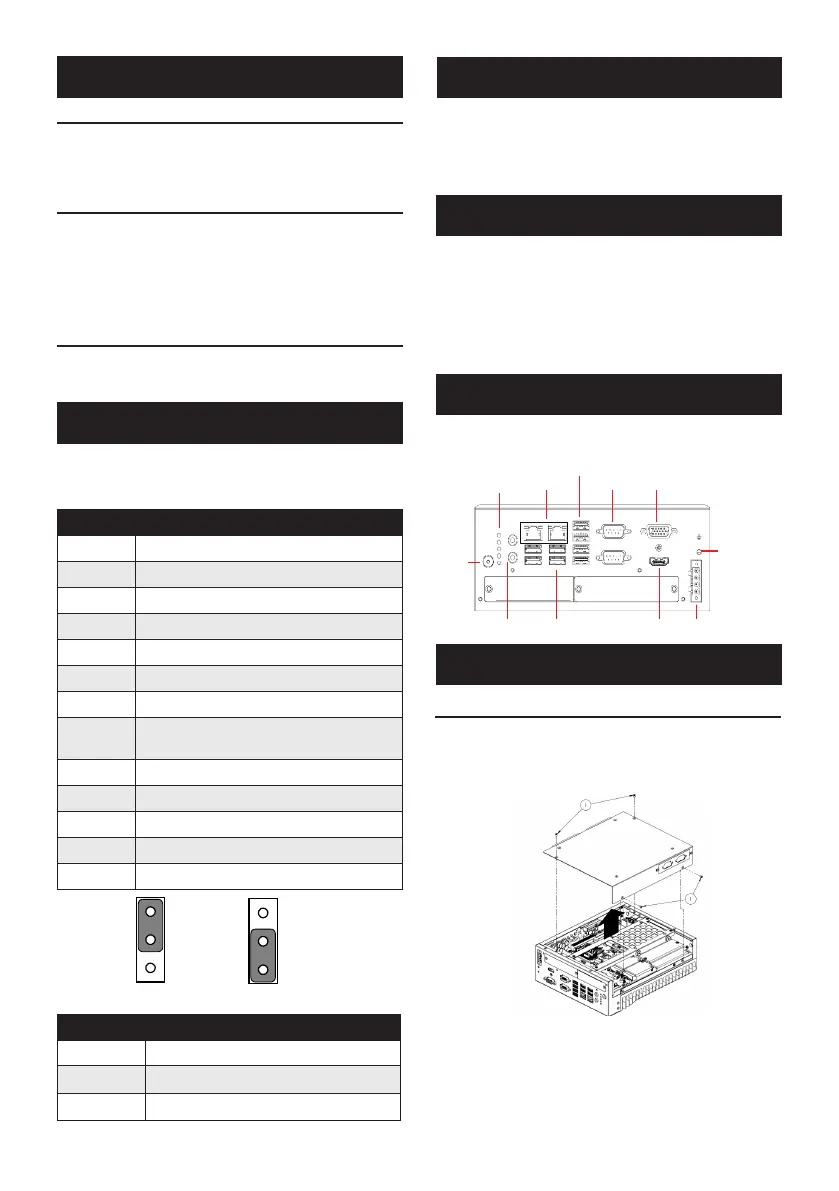

2 MIC-770 Startup Manual
Miscellaneous
•Power Switch
(Orange: System standby/Green: System Power boot)
•COM1 TX & RX LED; COM2 TX & RX LED; Storage Status
LED
Environment
• Operating Temperature:
TDP 35W CPU: -10~50°C
TDP 65W CPU: -10~40°C (not supported by i7)
Note: Safety Certification Test Temperature: safety max
50 °C with SSD (TDP 35W CPU)
• Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
• Relative Humidity: 95% @ 40° C (non-condensing)
Physical Characteristics
• Dimensions (WxHxD): 77 x 192 x 230 mm
• Weight: 2.8 kg (6.17 lbs)
Jumpers and Connectors
The board has a number of jumpers that allow you to con-
figure your system to suit your application. The table below
lists the function of each of the jumpers and connectors.
Connectors
Label Function
VGA1 VGA Connector
HDMI1 HDMI connector
COM 12 RS-232/422/485
COM 34 RS-232
USB C1 USB 3.0
USB C2 USB 3.0
USB C3
USB3.1 and USB3.0 (Q370) or
USB2.0 (H310)
LAN 1 Intel i219LM (Q370) or Intel i219V (H310)
LAN 2 Intel i210IT
Audio Audio Jack (Line-out, Mic-in)
LED 6 COM 1/2 TX; RX; Storage device status
DC 9-36V Power connector
1
2
3
1
2
3
AT Module ATX Module
PSON1: System AT/ATX Module Selection
Function Jumper Setting
1-2 AT module
2-3 ATX module (Default)
The computer is supplied with a battery-powered realtime
clock circuit. There is a danger of explosion if battery is
incorrectly replaced. Replace only with same or equivalent
type recommended by the manufacturer. Discard used
batteries according to manufacturer’s instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference;
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Memory Installation
MIC-770 supports DDR4 SO-DIMM non-ECC type memory
modules. If you need a detailed memory support list,
please contact your distributor or sales representative to
order compatible memory modules.
Power
Line out
LAN1/
LAN2
Chassis GND
VGA
9
-
36 VDC
LED
COM1
TX/RX
COM2
TX/RX
DATA
COM1/2
USB3.1
USB3.0/2.0
/3.0
HDMI
Specications (Cont.)
Declaration of Conformity
System I/O Interface
Simple Maintenance Process
Battery
