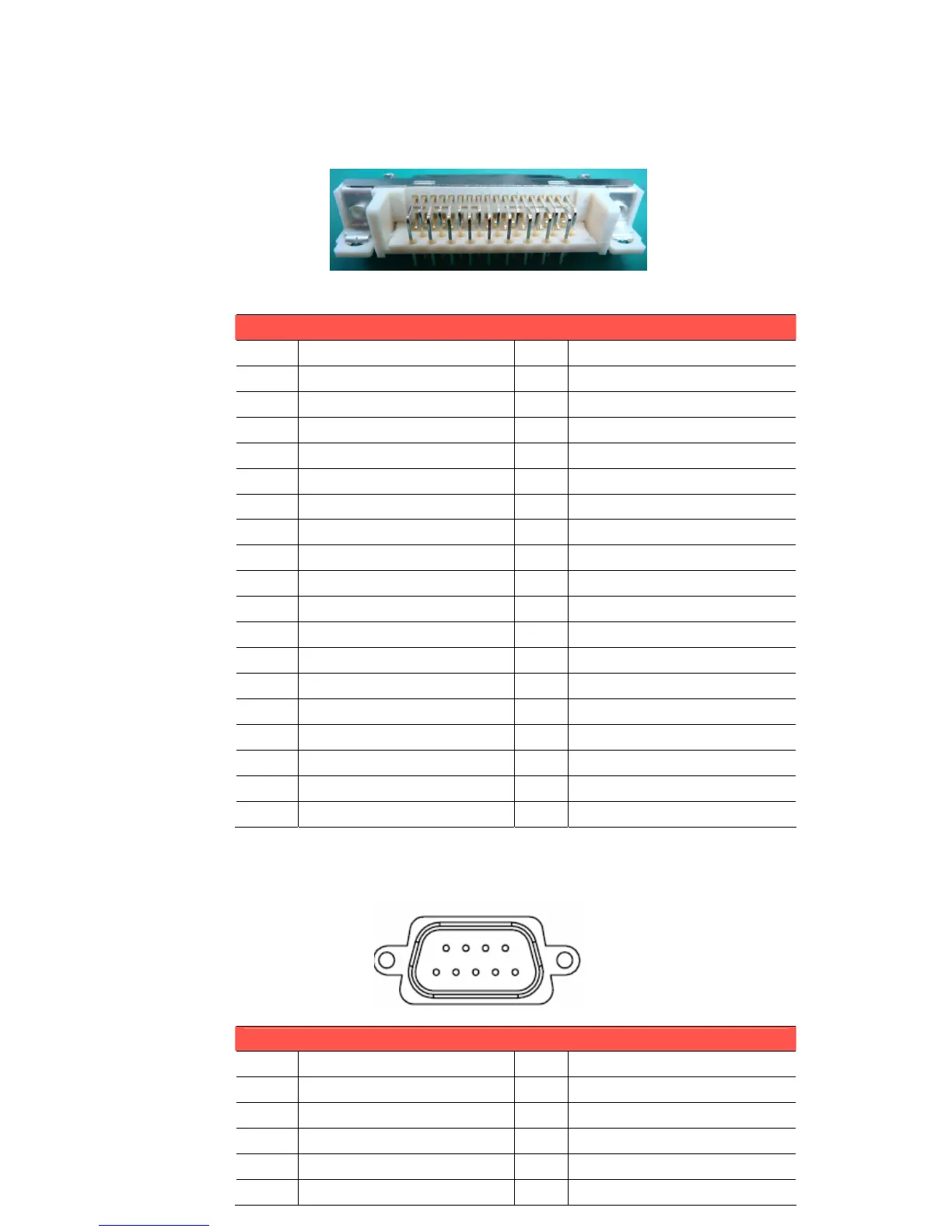

3.4 Smart Display Connector

Smart Display Connector

Signal

1 Backlight Enable output 2 Panel Power Enable output

3 LVDS Ground 4 Reset Button Input

LVDS Clock + 6 LVDS Clock -

LVDS Ground 8 LVDS Ground

LVDS Data2 + 10 LVDS Data2 -

RS232 TXD1 12 RS232 RXD1

LVDS Data1 + 14 LVDS Data1 -

LVDS Ground 16 LVDS Ground

LVDS Data0 + 18 LVDS Data0 -

USB D+ 20 USB D-

USB Ground 22 USB Ground

+12VDC output 24 +12VDC output

+12VDC output 26 +12VDC output

Power Ground 28 Power Ground

Power Ground 30 Power Ground

RS232 TXD2 32 RS232 RXD2

RS232 RTS2 34 Power Button Input

Audio Ground 36 Mono. Line-out

3.5 RS-232 Connector

RS-232 / RS-485 / J1708 Connector

Signal

1 RS-232 DCD 2 RS-232 RXD

3 RS-232 TXD 4 RS-232 DTR

RS-232 Ground 6 RS-232 DSR

RS-232 RTS 8 RS-232 CTS

RS-232 RI / +5V / +V12
