3.6 RS-232 / RS-485 / J1708 Connector

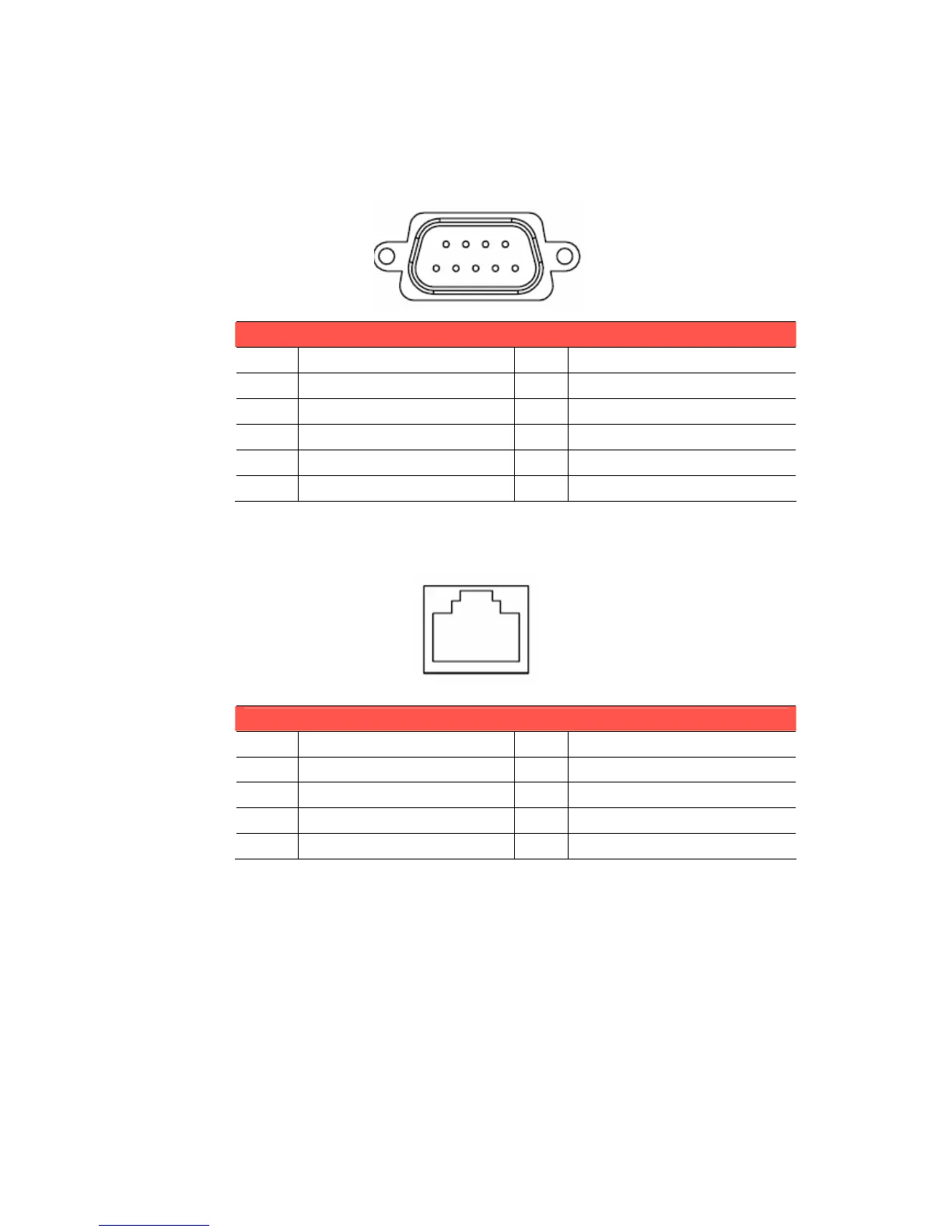

RS-232 / RS-485 / J1708 Connector

Signal

1 RS-232 RTS9 2 RS-232 RXD9

3 RS-232 TXD9 4 RS-232 CTS9

RS-232 Ground 6 RS-485 D-

RS-485 D+ 8 J1708 D-

J1708 D+

3.7 CAN / Video-In Connector

CAN / Video-In Connector

Signal

1 CAN_H 2 CAN_L

3 CAN_SHIELD 4 CAN_SHIELD

Video In 2 6 Video Ground

Video In 1 8 Video Ground
