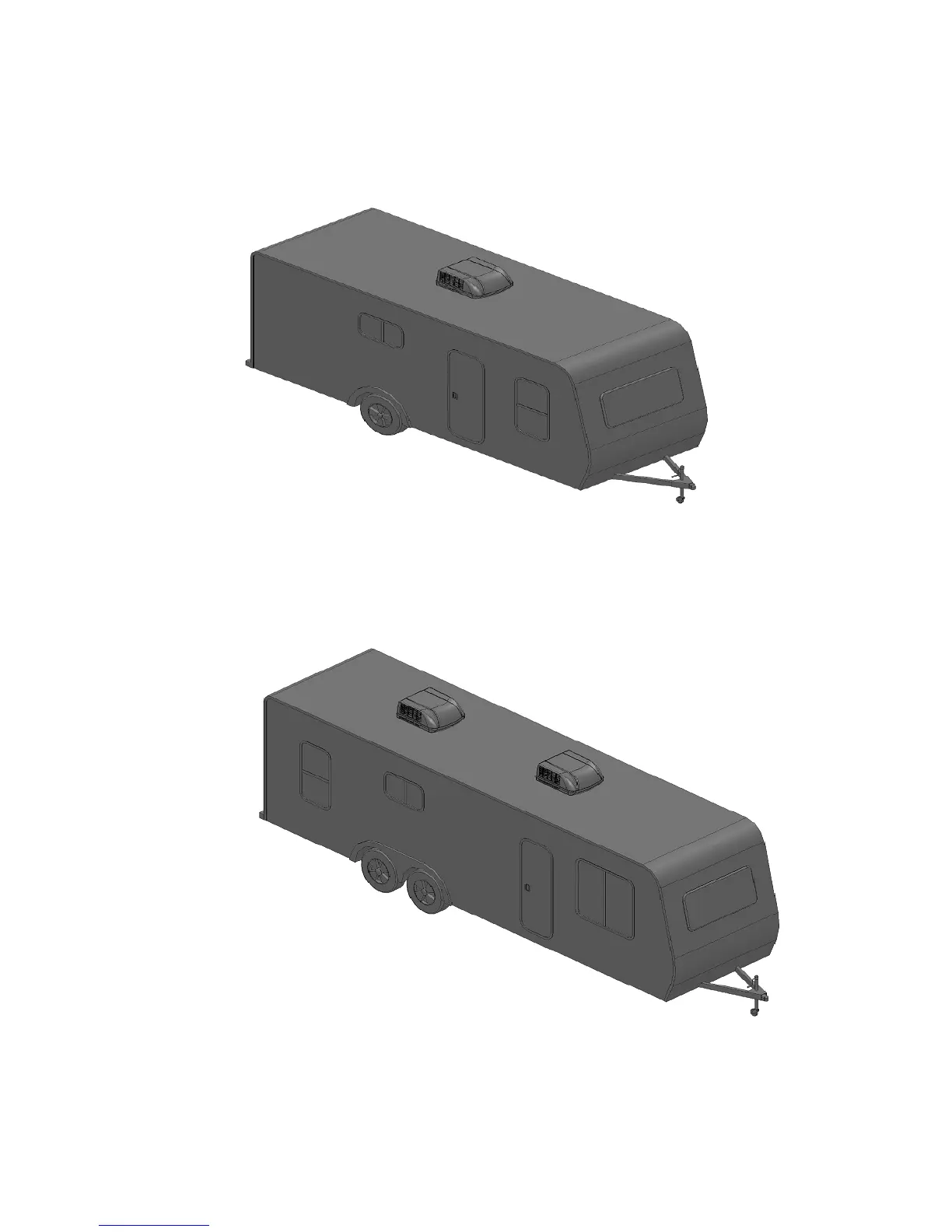

1. For one unit installation: The air conditioner / heat pump should be mounted slightly
forward of center (front to back) and centered from side to side. See FIG. 1.
FIGURE 1
2. For two unit installation: Install one air conditioner / heat pump 1/3 distance and the
other air conditioner / heat pump 2/3's from front of RV and centered from side to side.
See FIG. 2.
FIGURE 2
It is preferred that this air conditioner / heat pump be installed in a relatively flat and level roof
section measured with the RV parked on a level surface; however, up to 15° slant to either side, or
