In order to connect the MO4NL cabinet to the three-phase power supply, it is necessary to
access the 2 connecon terminals on the 2 counter plates at the back of the cabinet.
The mains supply to be used is the three-phase mains 360-440VAC, 50Hz or 60Hz.
Each of the 2 power terminals must be connected using a power cord with the following
characteriscs and minimum cross-secons. It is considered that the lengths of the power
cords can measure several meters:
For MO4NL 16000 = 2 cords H07RNF5G-2,5 of secon 2,5mm2 each.
For MO4NL 32000 = 2 cords H07RNF5G-4 with 4mm2 secon each
It is necessary to
unscrew 4 xing
screws to access
the terminal block
present on each of
the 2 counter
plates.
It is necessary to pass the po-
wer cord inside the cable
clamp. The 5 stripped conduc-
tors at the end of the cord
must be equipped with wire
end ferrules.
The clamp must then be
ghtened to secure the cord
by screwing on the movable
part of the clamp on the out-
side of the cabinet.

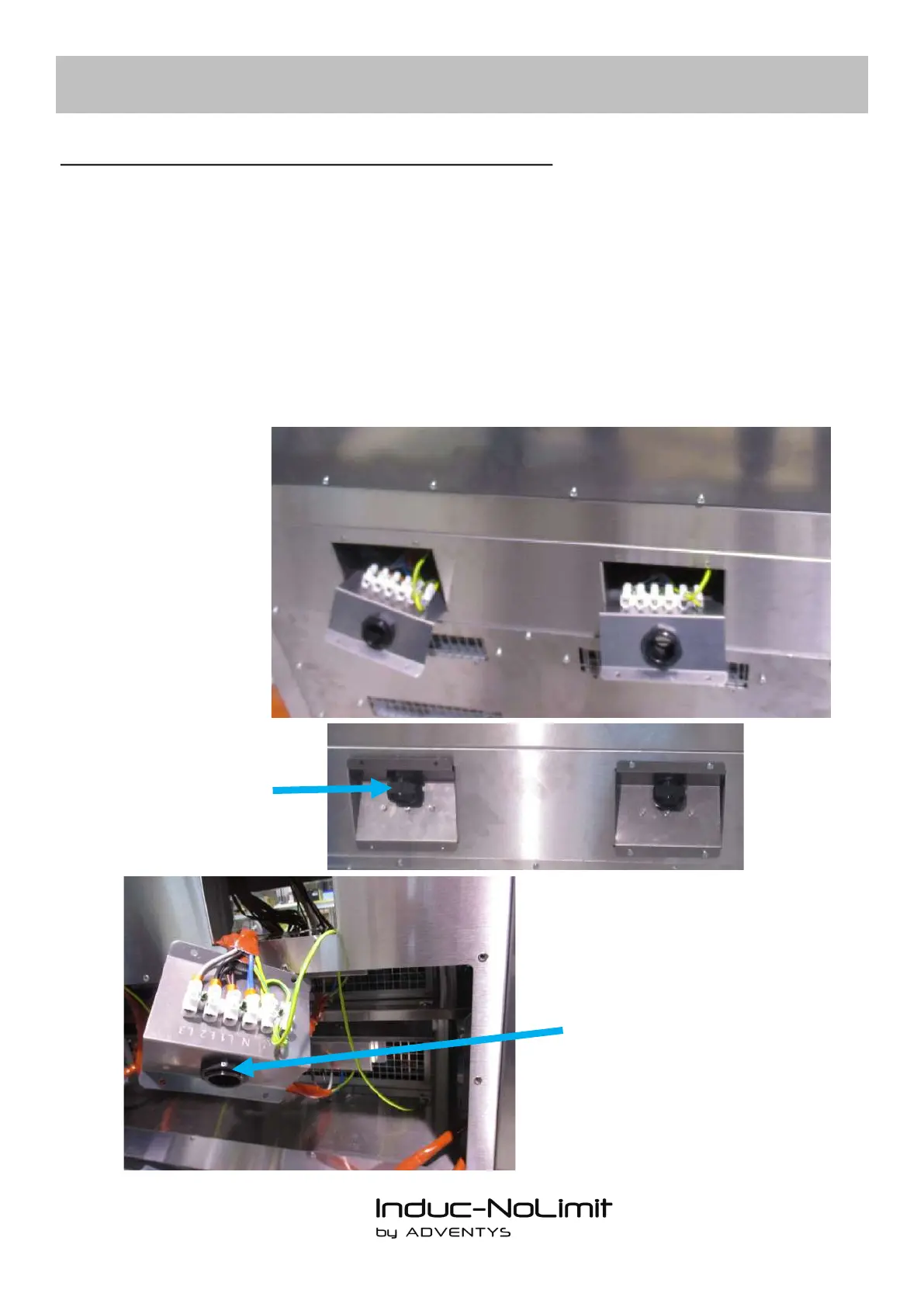

View of the coun-
terplates in posion
on the external side
