AE RC10B6 - Page 10

10

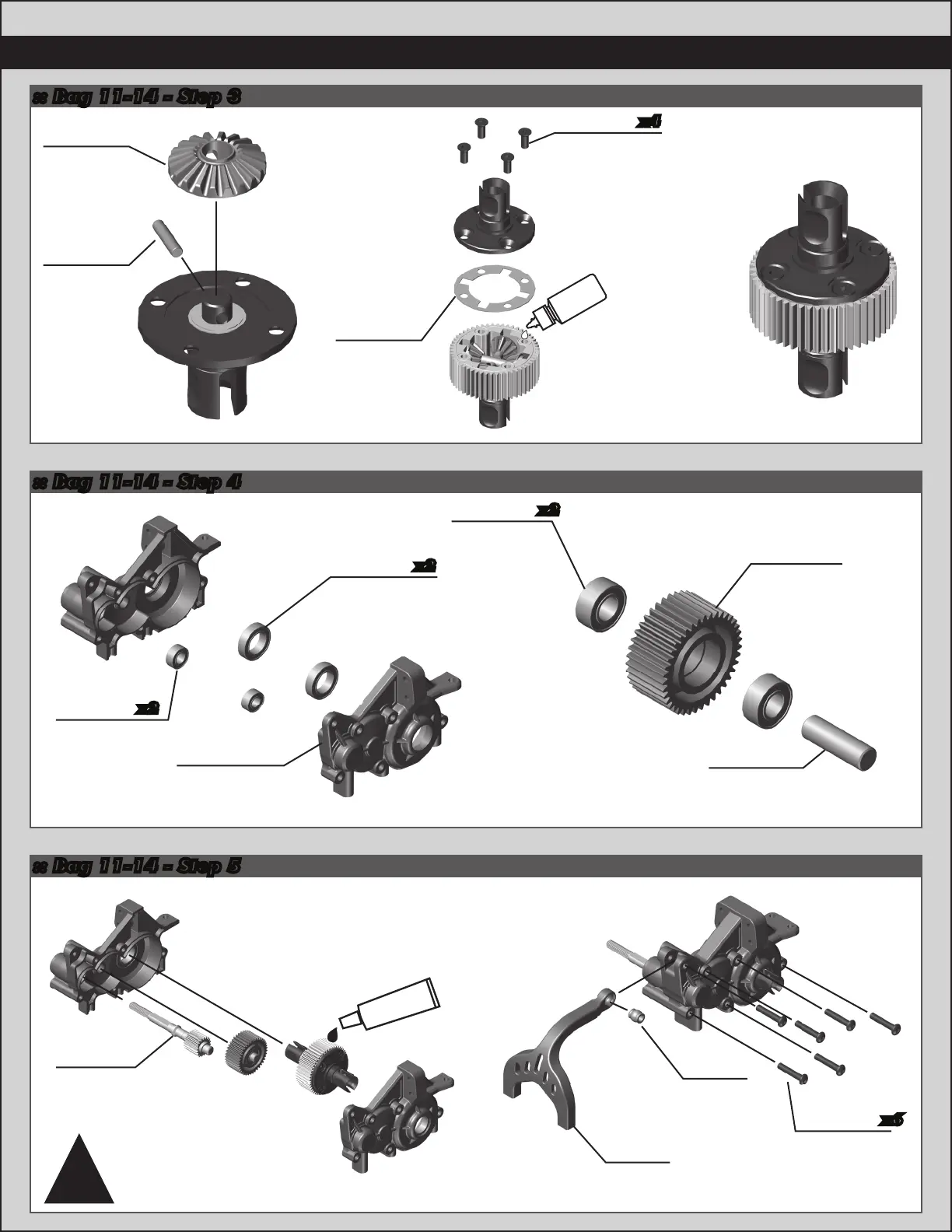

:: Bag 11-14 - Step 5
:: Bag 11-14 - Step 4
:: Bag 11-14 - Step 3
89203
M3 x 16mm
BHCS
x6
91709
Chassis
Brace
91709
Pivot
Ball
91560
5 x 10 x 4,
Bearing
91463
Gear Diff
Gasket
91465
Gear Diff
Outdrive
Pin
91463
Gear Diff
Sun Gear
91563
10 x 15 x 4,
Bearing
4675
M2.5 x 6mm
FHCS
91708
Lay-down
Gearbox
(right & left)
x2
x2
x4
Add a drop of Diff
Lube (#6591) to
the teeth of the diff
gear, idler gear, and
top shaft.
!
#6591
diff lube
91560
5 x 10 x 4,
Bearing
91710
Top Shaft
91716
Idler Gear
39T
91132
Idler Gear
Shaft,
Aluminum
x2
Diff fluid
#5444
