AE RC10B6 - Body Trimming;Mounting

18
:: Bag 24-26 - Step 7
:: Bag 24-26 - Step 6

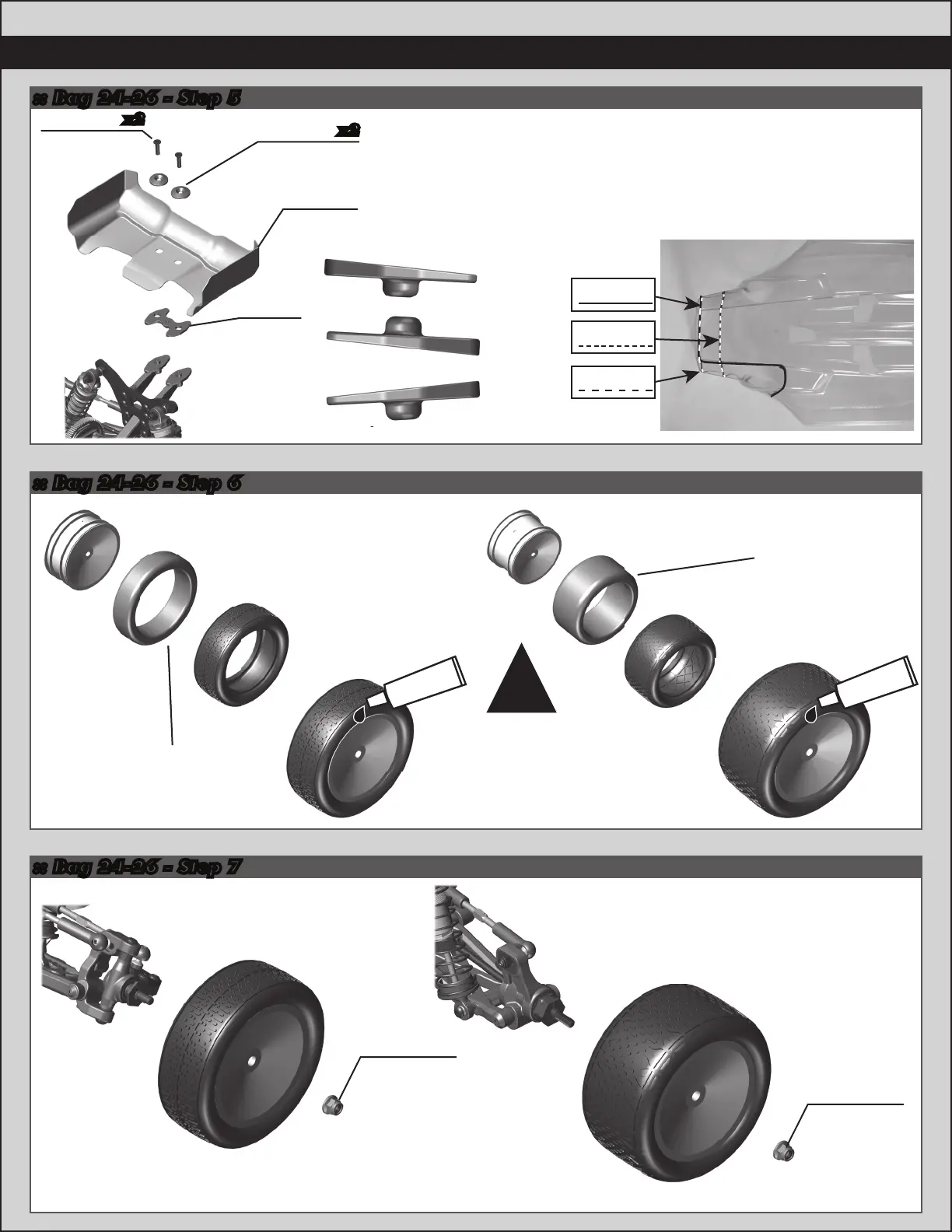

Body Trimming / Mounting:
There are 3 body trimming options depending on what transmission and
shock position you choose to run.
Cut Line A: Laydown Transmission / Rear Shocks mounted in rear of arm.
Cut Line B: Laydown Transmission / Rear Shocks mounted in front of arm.
Cut Line C: 3 Gear Stand Up Transmission.
Wheels / Tires and
Inserts are
not included!
Wheels / Tires and
Inserts are
not included!
#1597
ca glue
#1597
ca glue
Carefully apply ca glue
(tire adhesive) to the tire
bead on the side. Do one
side at a time, allowing it
to dry before gluing the
other side!
CA glue not included!
!
Build x2 Build x2
Build 2 (1 left, 1 right) Build 2 (1 left, 1 right)
:: Bag 24-26 - Step 5
91738
M4 Serrated
Nut, with
Flange
91738
M4 Serrated
Nut, with
Flange
91718
Wing
Button
91741
Wing,
B6
91718
Wing
Mount
Wing Mount
25203
M3 x 12mm
FHCS
x2
x2
Wing Mount
Cut Line A
Cut Line B
Cut Line C
0° - Mount
under wing
3° - Mount on
top of wing
6° - Mount
under wing
