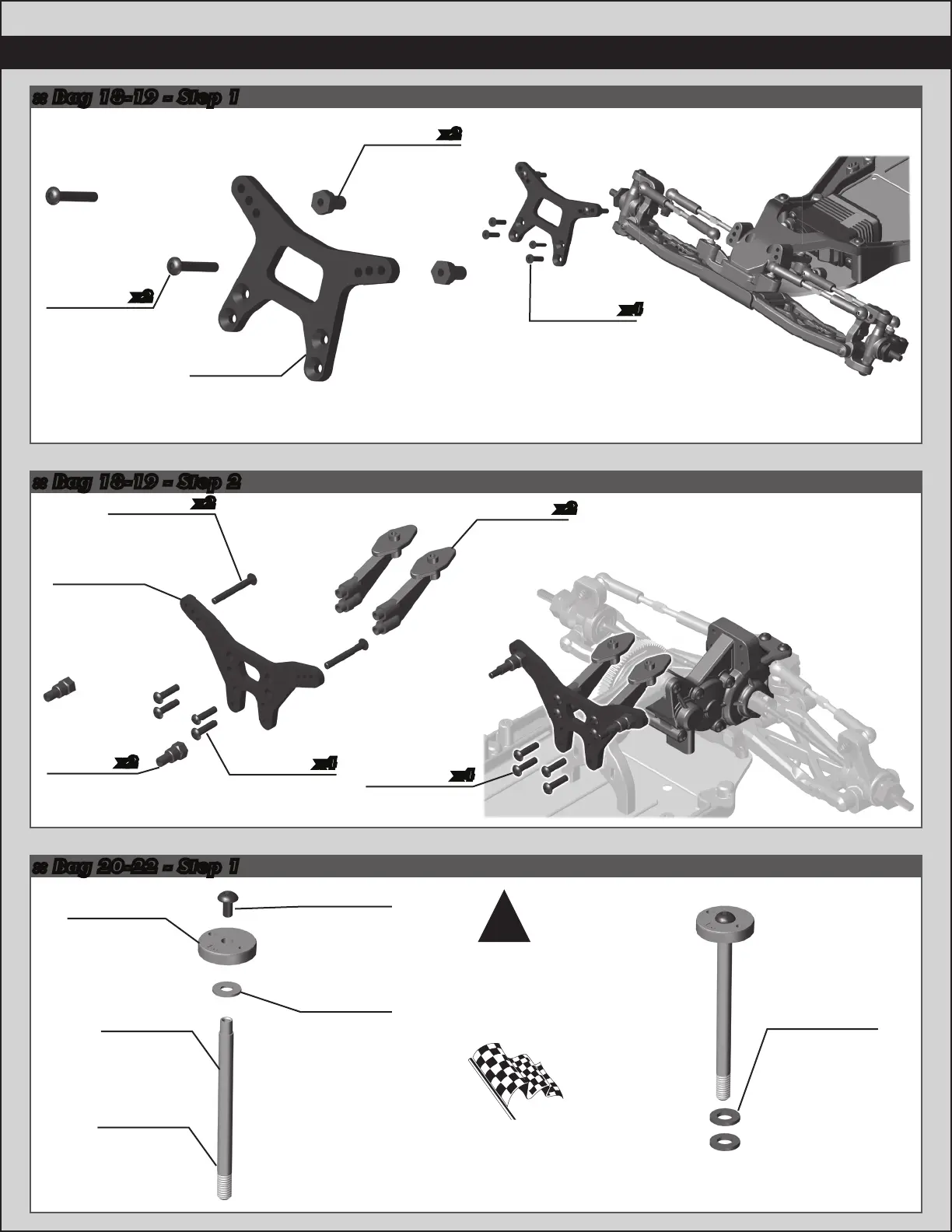

AE RC10B6 - Shock Absorber Assembly

14
:: Bag 20-22 - Step 1
:: Bag 18-19 - Step 2
4187
Nylon Spacer,
(.030)
Front:
2 spacers
Rear:
0 spacers
:: Bag 18-19 - Step 1
91634
12mm V2
Shock Piston
(1.6 front)
(1.7 rear)
91615
V2 3 x 21
Shock Shaft
TiN (front)
31510
M2 x 4mm
BHCS
89278
2.5mm
Washer
91619
V2 3 x 27.5
Shock Shaft
TiN (rear)
Racers Tip:
Use a marker over the
numbers on the pistons to
make them easily visible!
Mount the shock
pistons withthe
number facing up!
!
89204
M3 x 24mm
BHCS
89202
M3 x 12mm
BHCS
x2
x4
x2
91718
Rear Wing
Mount
25188
M3 x 20mm
BHCS
89202
M3 x 12mm
BHCS
25203
M3 x 12mm
FHCS
91533
Shock
Bushing,
Short
91720
Shock
Bushing,
Long
91663
Front Shock
Tower,
Gull-Wing
91665
Rear Shock
Tower
x2
x4
x4
x2
x2
