AE RC10B6 - Page 16

16

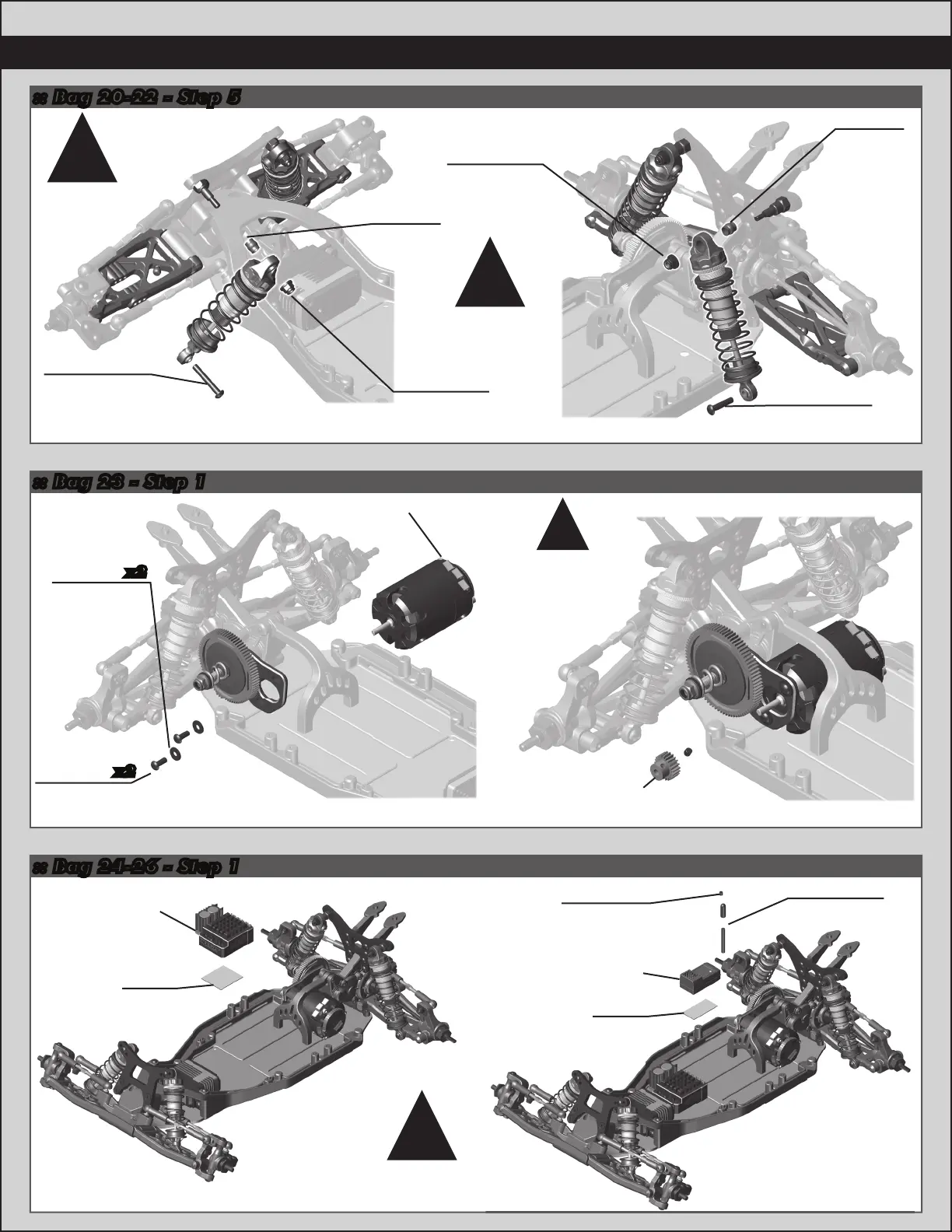

:: Bag 24-26 - Step 1
:: Bag 23 - Step 1
:: Bag 20-22 - Step 5
ESC not
included!
6727
Servo
Tape
6727
Servo
Tape
There are two options
for mounting your
antenna.
!
Receiver not
included!
25225
M3 x 3mm
Set Screw
6338
Antenna
Tube & Cap
See page 19 for
gear mesh setting
instructions!
!
Motor not included!
31532
M3 x 8mm
BHCS
x2
x2
89218
3 x 8mm
Washer
Pinion / Setscrew
not included!
Use outside
hole in
front arm!
!
Use inside
hole in
rear arm!
!
25612
M3 Locknut
w/Flange
25612
M3 Locknut
w/Flange
25187
M3 x 14mm
BHCS
91447
Shock
Bushing
91447
Shock
Bushing
25188
M3 x 20mm
BHCS
Build x2 (right and left side)
