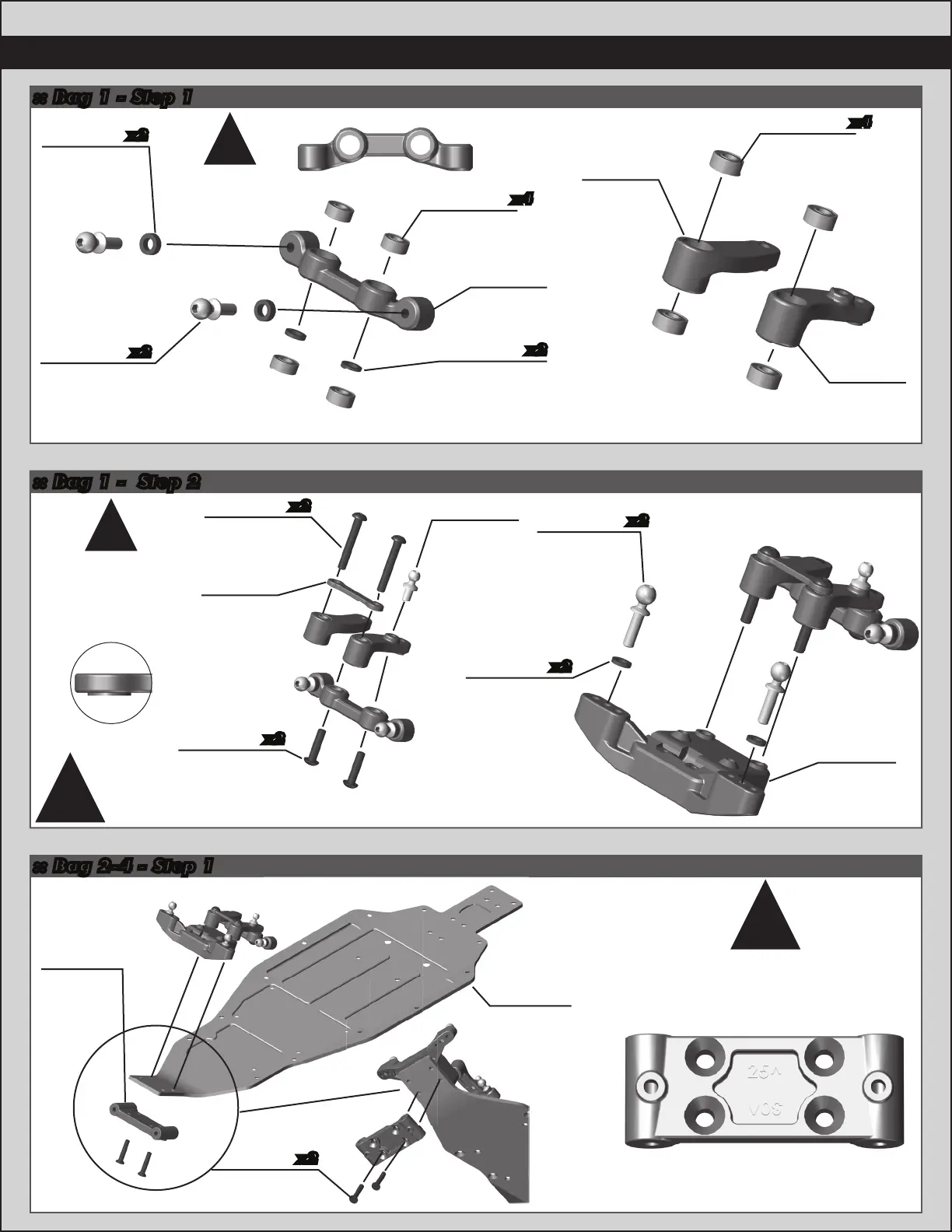

AE RC10B6 - Assembly Process; Front Suspension Assembly

:: Bag 1 - Step 2
:: Bag 2-4 - Step 1
5
:: Bag 1 - Step 1
4/16
91667
Steering
Bellcrank
Brace
x2
25188
M3 x 20mm
BHCS
Do not overtighten steering bolts. Make sure
there is free movement in the steering rack.
91475
3 x 7 x 3
Ball Bearing
91475
3 x 7 x 3
Ball Bearing
91667
Steering
Rack
91667
Steering
Bellcrank
(Right)
Front
91667
Steering
Bellcrank
(Left)
x4
x4
x2
x2
x2
x2
x2
91048
Heavy-duty
Ballstud,
8mm
91049
Heavy-duty
Ballstud,
10mm
31286
FT Ballstud
Washer,
Aluminum
(2mm)
31286
FT Ballstud
Washer,
Aluminum
(1mm)
91655
Front
Ball Stud
Mount
31286
FT Ballstud
Washer,
Aluminum
(1mm)
!
x2
x2
89202
M3 x 12mm
BHCS
25204
M3 x 16mm
FHCS
31283
5mm Ball
Stud, Long
Note orientation
of steering rack.
!
91656
Bulkhead
91650
Chassis,
B6
There are two bulkhead settings
(25 °, 30 °). 25 ° is the standard used.
The arrow should point
forward for the desired setting.
The steering
bellcrank brace
has offsets on one
side. They should be
installed towards
the bearings.
!
!
25
30
>
>
