AEA R44 - Page 13

13

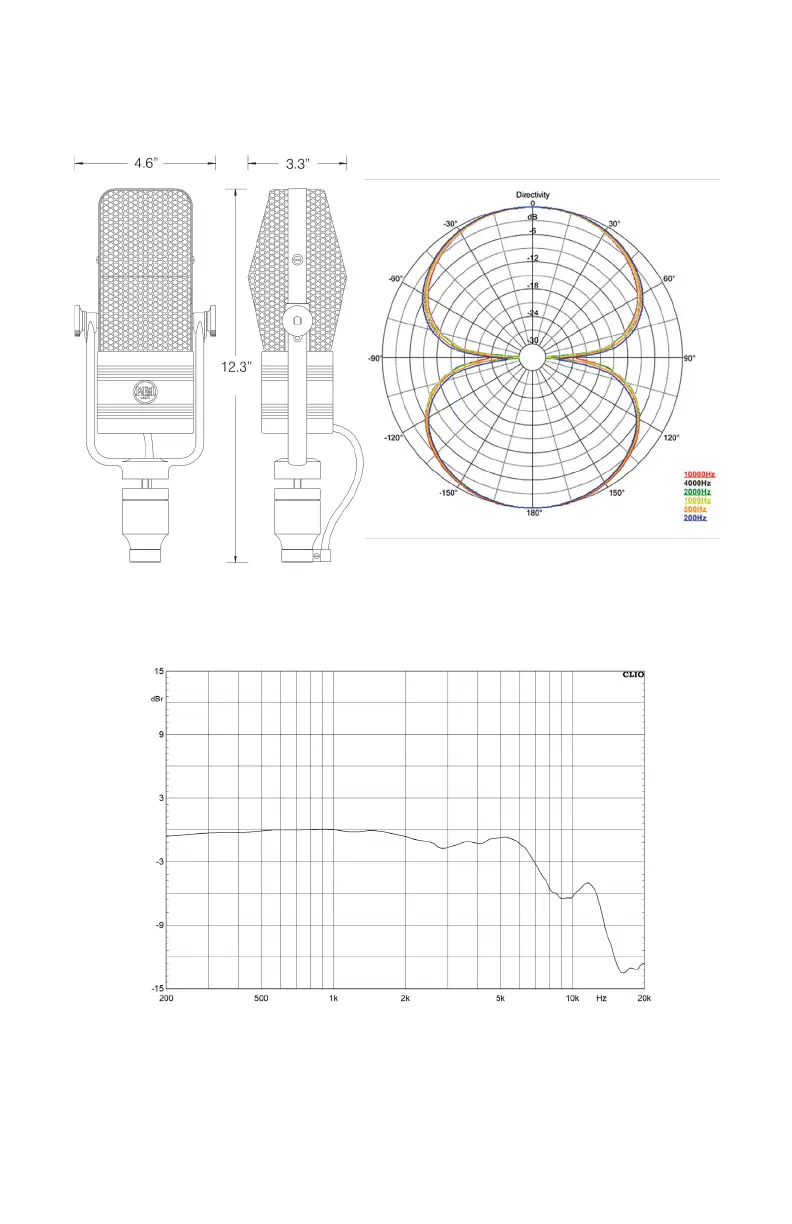

DIMENSIONS & POLAR PATTERN
FREQUENCY RESPONSE
• Data below 200 Hz omitted due to measuring room restrictions
• 0 dVB is equivalent to 2.5 mV/Pa (-52 dBV)for R44C/CE
• 0 dVB is equivalent to 4.47 mV/Pa (-47 dBV) for R44CX/CXE
• Normalized to 0 dB at 1kHz. 1/3 octave smoothing
