ness with the signal level from -3 dBu to +20 dBu.
2 – HF Gain control: This continuously variable control adjusts the HF
gain from flat (+0dB) to maximum (+20 dB); the slope of the Curve-
Shaper
TM
EQ varies interactively and directly with the boost frequency
and gain settings.
3 – HF In switch: OUT is bypass; IN inserts the CurveShaper
TM
cir-
cuitry.
4 – HF Frequency control: This continuously variable control adjusts
the +3dB break-frequency from 2.1 kHz to 26 kHz.

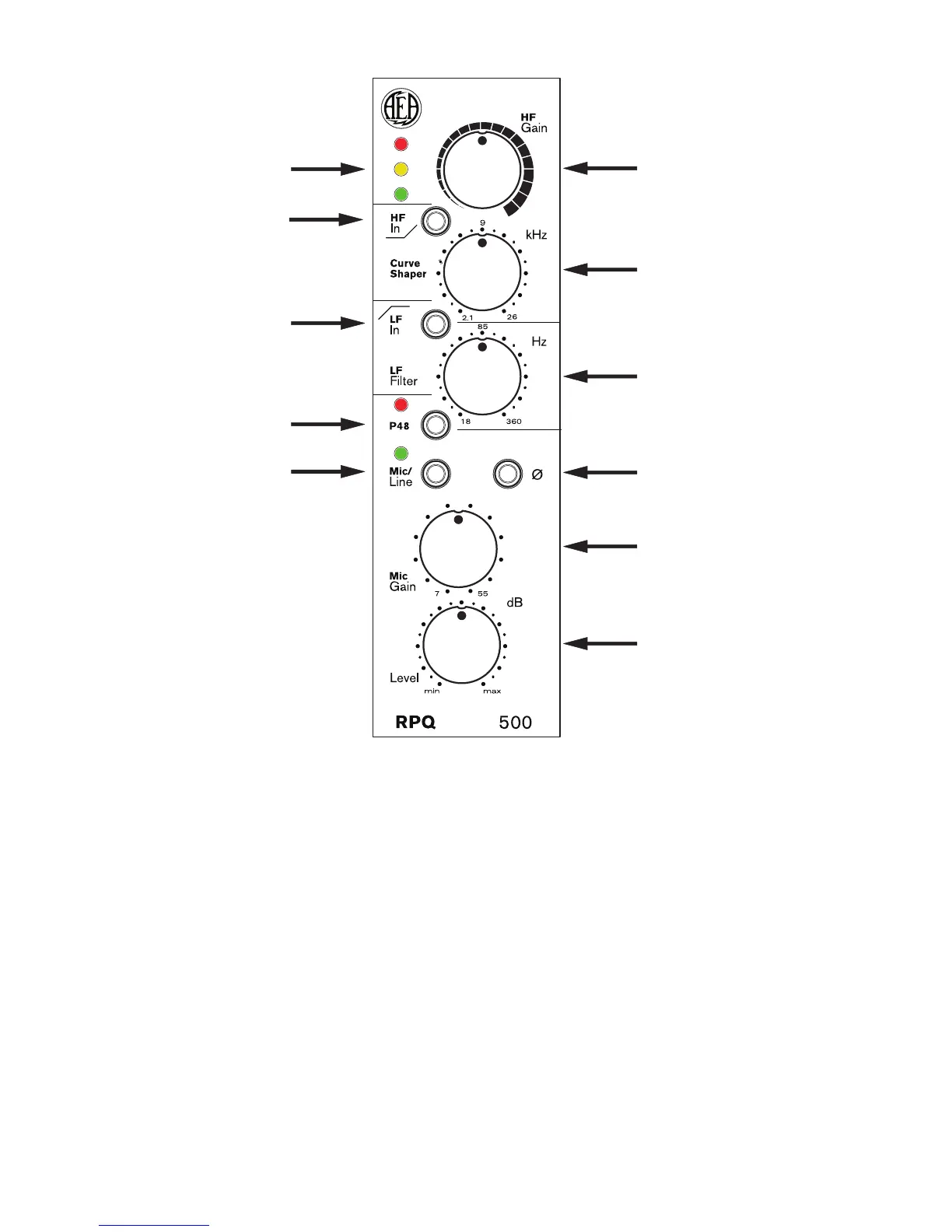

Figure 1: AEA RPQ500 Front Panel Diagram
2
1
8
3
5
7
4
6
9
10
11
