Installation and Connection Instructions
35

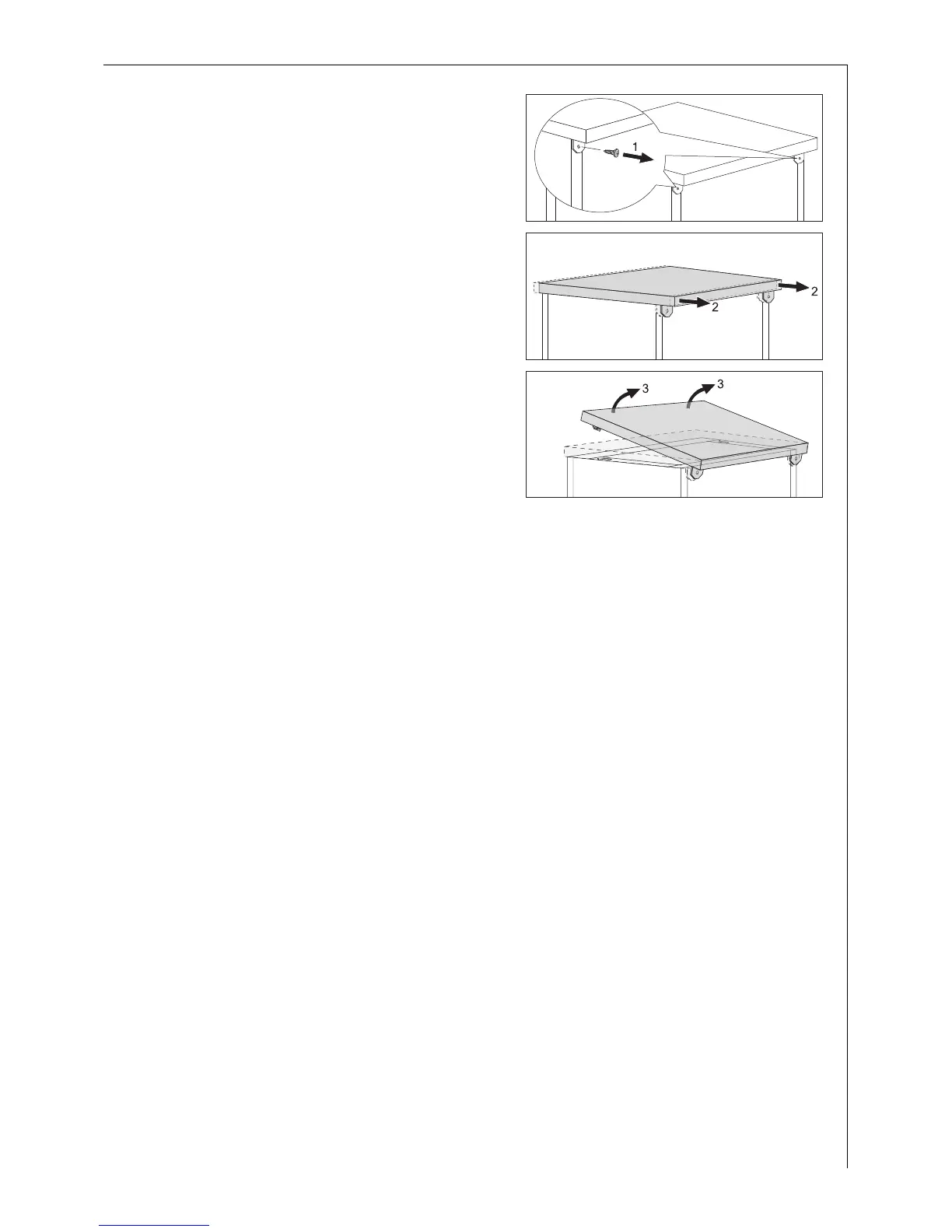

0 1. Unscrew the screws from the posi-
tioning plates on the back (1).
2. Slide the appliance's work surface
approx. 1 cm to the rear (2).
3. Lift the work surface at the front (3)
and remove.
1
If the dishwasher is later used as a free-standing appliance, the original
work surface must be re-mounted.
3 The plinth on free-standing appliances is not adjustable.
