Place the three rubber strips on the back of the cooker hood.
Where necessary mount the two spacers provided on the drill holes
for definitive fixing.
The spacers are useful when the wall which is to house the cooker
hood is not perfectly vertical (for example: where it is partially
covered with wall tiles).

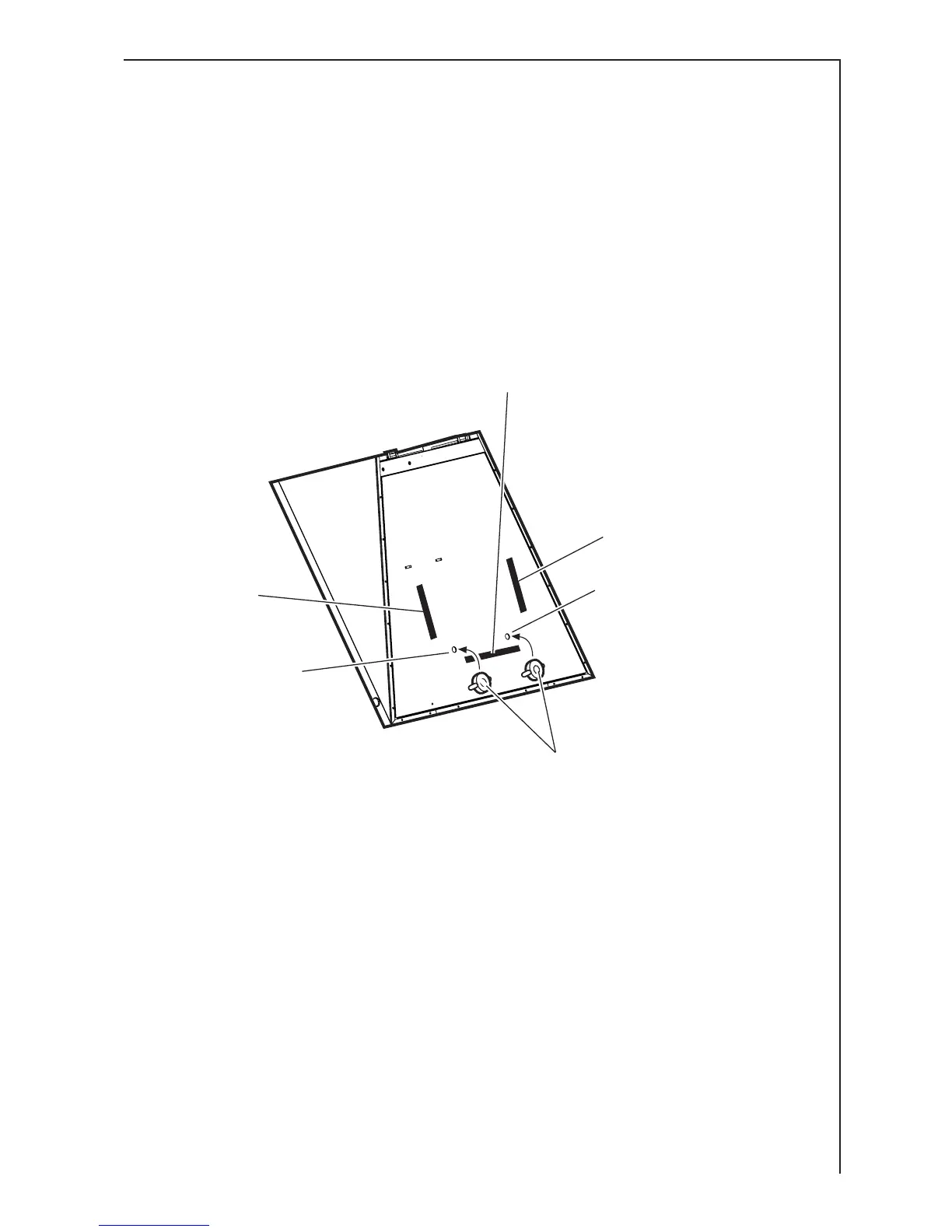

Wall mounting - Fig. 10-11-12-13
Fig. 10
rubber strips
spacers
definitive fixing
rubber strips
rubber strips
definitive fixing
