AEG HVB95450IB - Page 11

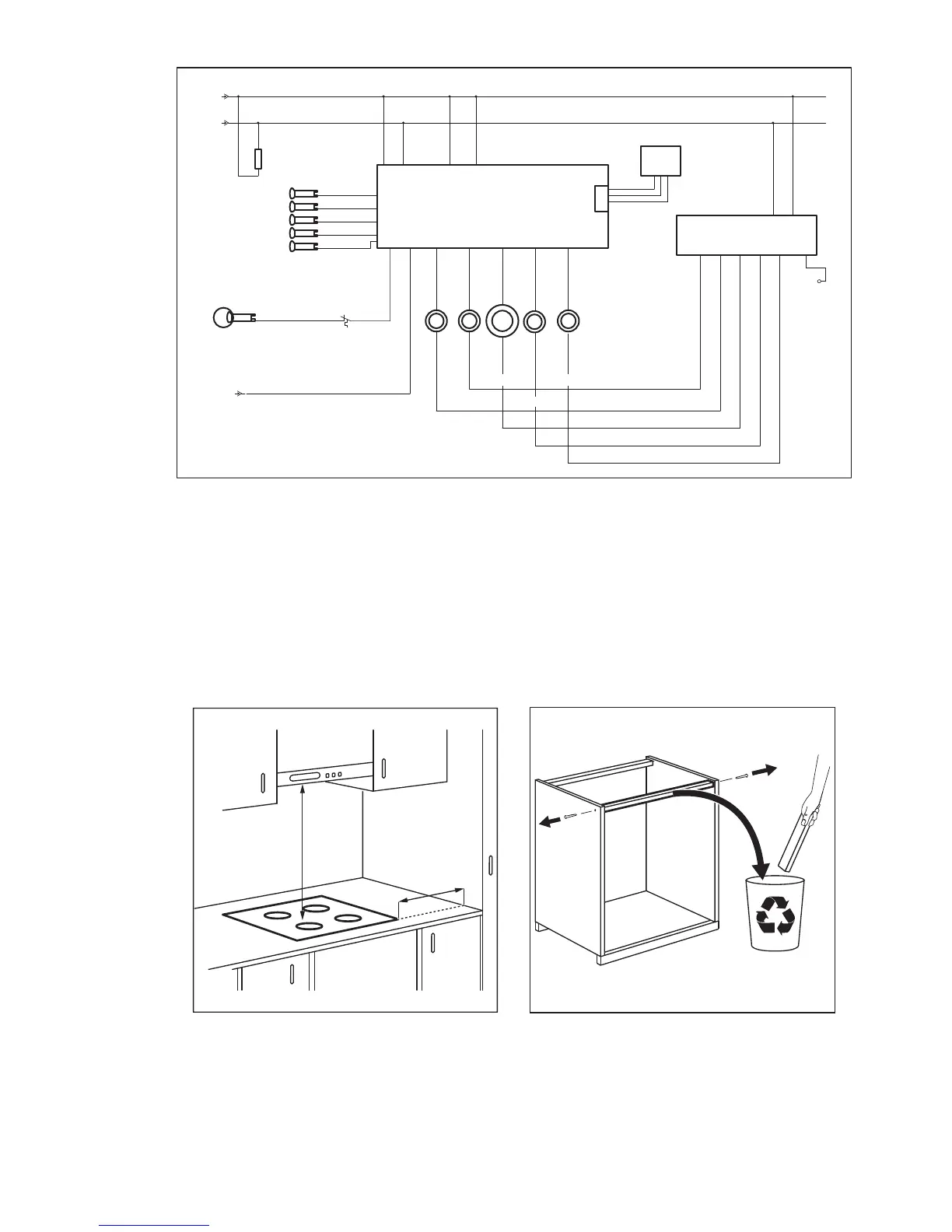

X1/L
X1/N
X1/PE
X1/PE
f2
SAFETY
TEMP. LIMITER
1
2
BRAHMA PB
J47 J48
J46
J49 J50
PE
POWER
INTERFACES
POWER FOR SPARK
GENERATOR
SPARK GENERATOR
N L
J8 J9 J10 J11 J12
4
central
burner
(multicrown)
front
right
burner
(auxiliary)
front
left
burner
(semirapid)
back
left
burner
(semirapid)
back
right
burner
(semirapid)
C D EBA
J14
J15
J16
J17
J18
2 3
1
J55
J20
Main valve
UI
5V GND
TX/RX
65
Valve
Valve
Valve
Valve
Valve
B
A
C
D
E
21
3
3
R (220KHOM 2W)
4.5 Connection cable
To replace the connection cable use only
the special cable or its equivalent. The
cable type is: H05SS-FT180.
Make sure that the cable section is
applicable to the voltage and the
working temperature. The yellow / green
earth wire must be approximately 2 cm
longer than the brown (or black) phase
wire.
4.6 Assembly
min.
100mm
min.
650mm
ENGLISH 11
