Position
Niche size
W D H
A
562 x 550 x 360
B+C
462 x 300 x 350
462 x 300 x 360
562 x 300 x 350
562 x 300 x 360
D
462 x 500 x 350
462 x 500 x 360
562 x 500 x 350
562 x 500 x 360
Measurements in (mm)

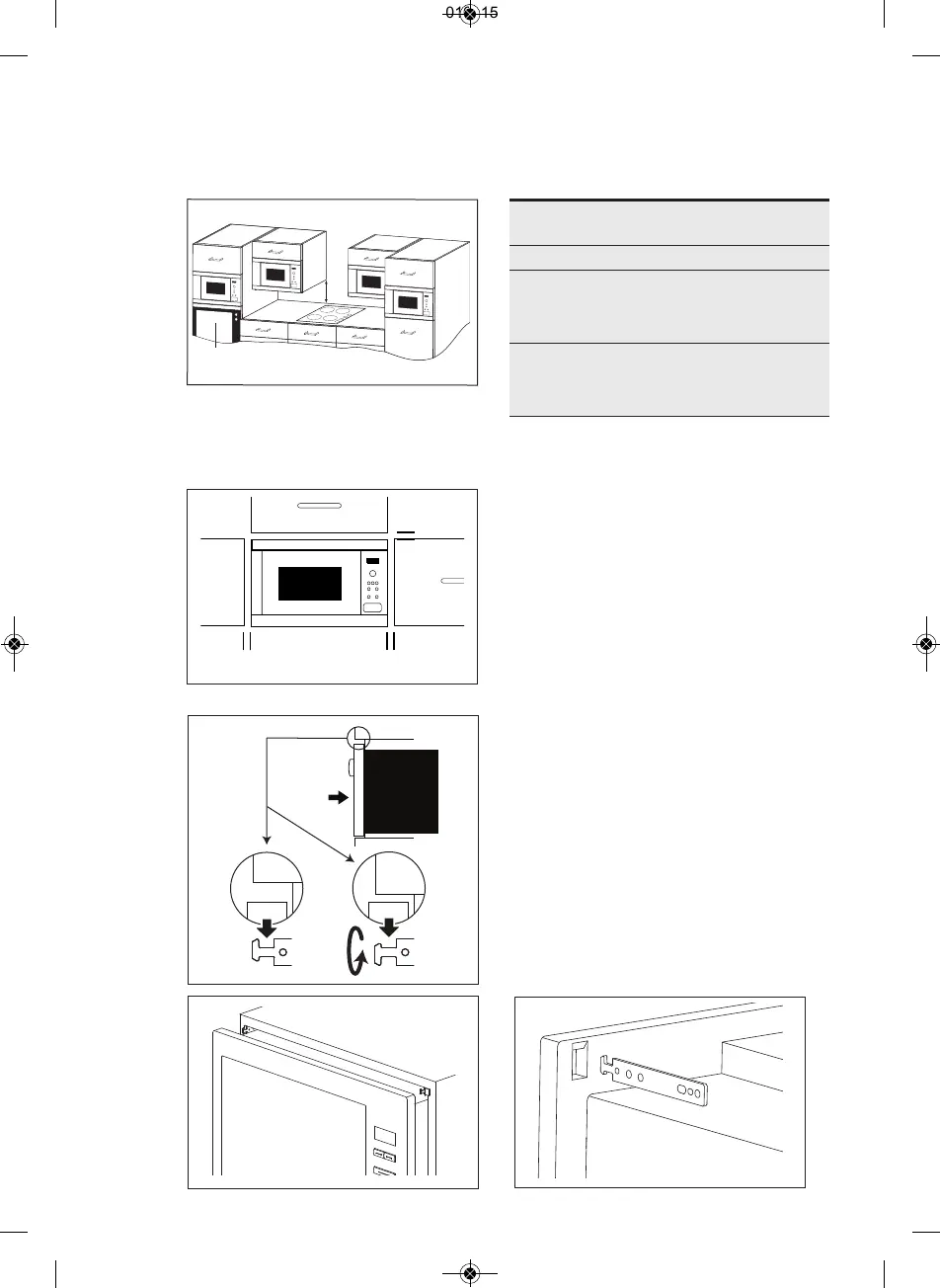

9.1 Installing the appliance
C
o
n
ve
n
ti
o
n
a
l
o
ve
n
1. Remove all packaging and check
carefully for any signs of damage.
2. This oven is designed to fit into a
360 mm high cupboard as standard.
When fitting into a 350 mm high
cupboard:- Unscrew and remove the
4 feet from the bottom of the oven. There
are 3 tall feet and 1 short foot. Replace
the 3 tall feet with those provided in the
accessory pack. Do not replace the
short foot.
3. Fit the fixing hooks to the kitchen
cupboard using the instruction sheet and
template supplied.
4. Fit the appliance into the kitchen
cupboard slowly, and without force. The
appliance should be lifted onto the fixing
hooks and then lowered into place. In the
case of interference during fitting, this
hook is reversible. The front frame of the
oven should seal against the front
opening of the cupboard.
5. Ensure the appliance is stable and not
leaning. Ensure that a 4 mm gap is kept
between the cupboard door above and
the top of the frame (see diagram).
